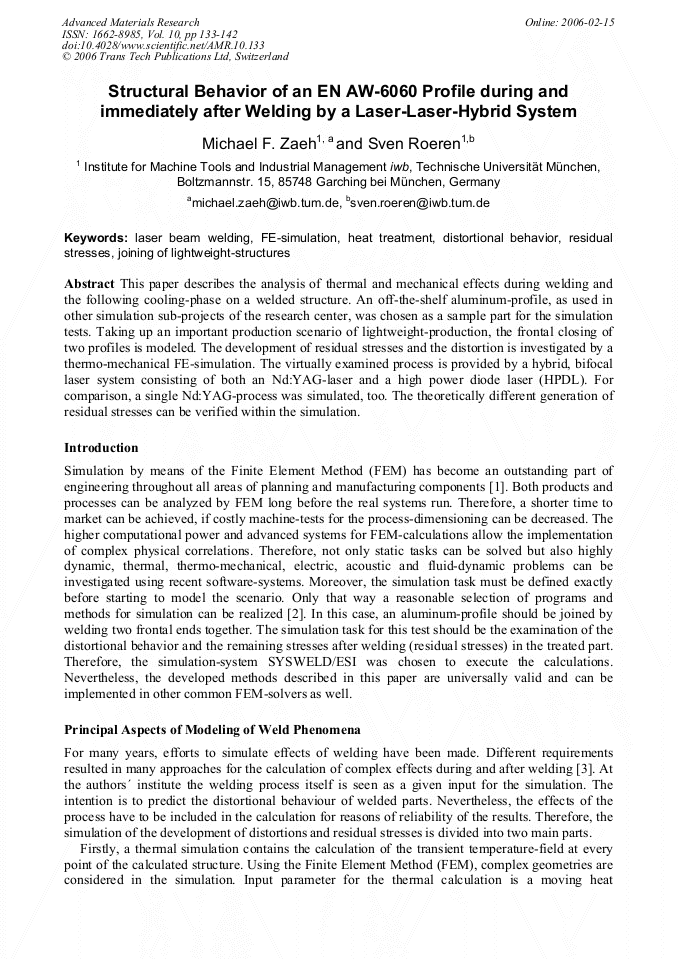

Structural Behavior of an EN AW-6060 Profile during and Immediately after Welding by a Laser-Laser-Hybrid System

Abstract:

This paper describes the analysis of thermal and mechanical effects during welding and the following cooling-phase on a welded structure. An off-the-shelf aluminum-profile, as used in other simulation sub-projects of the research center, was chosen as a sample part for the simulation tests. Taking up an important production scenario of lightweight-production, the frontal closing of two profiles is modeled. The development of residual stresses and the distortion is investigated by a thermo-mechanical FE-simulation. The virtually examined process is provided by a hybrid, bifocal laser system consisting of both an Nd:YAG-laser and a high power diode laser (HPDL). For comparison, a single Nd:YAG-process was simulated, too. The theoretically different generation of residual stresses can be verified within the simulation.

Info:

Periodical:

Advanced Materials Research (Volume 10)

Main Theme:

Flexible Manufacture of Lightweight Frame Structures, 2006

Edited by:

Matthias Kleiner, Jürgen Fleischer, Michael Zäh and Marco Schikorra

Pages:

133-142

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.10.133

Citation:

M. F. Zäh and S. Roeren, "Structural Behavior of an EN AW-6060 Profile during and Immediately after Welding by a Laser-Laser-Hybrid System", Advanced Materials Research, Vol. 10, pp. 133-142, 2006

Online since:

February 2006

Authors:

Michael F. Zäh, Sven Roeren

Keywords:

Distortional Behavior, Finite Element (FE) Simulation, Heat Treatment, Joining of Lightweight Structures, Laser Beam Welding, Residual Stress
