Three-Dimensional Curved Profile Extrusion – First Results on the Influence of Gravity


Article Preview

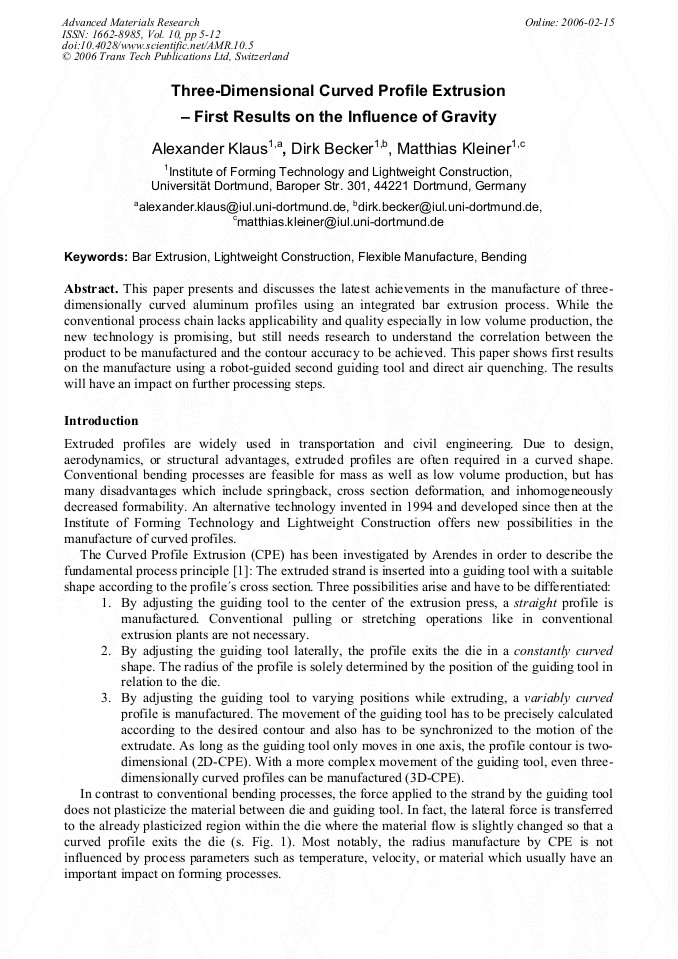

This paper presents and discusses the latest achievements in the manufacture of threedimensionally curved aluminum profiles using an integrated bar extrusion process. While the conventional process chain lacks applicability and quality especially in low volume production, the new technology is promising, but still needs research to understand the correlation between the product to be manufactured and the contour accuracy to be achieved. This paper shows first results on the manufacture using a robot-guided second guiding tool and direct air quenching. The results will have an impact on further processing steps



Edited by:

Matthias Kleiner, Jürgen Fleischer, Michael Zäh and Marco Schikorra




A. Klaus et al., "Three-Dimensional Curved Profile Extrusion – First Results on the Influence of Gravity", Advanced Materials Research, Vol. 10, pp. 5-12, 2006

Online since:

February 2006




[1] D. Arendes: Direct Manufacturing of Rounded Aluminium Profiles During Extrusion. PhDThesis (in German), University of Dortmund, Shaker, Aachen, (1999).

[2] A. Klaus, M. Kleiner: Developments in the Manufacture of Curved Extruded Profiles - Past, Present, and Future. Light Metal Age, August (2004), pp.22-32.

[3] D. Becker, M. Schomäcker, A. Klaus, M. Kleiner: Alternative Manufacture of Curved Profiles for Automotive and Railway Lightweight Constructions. Proceedings of the Int. Conference Aluminium in Transport, 27. -29. 04. 2005, Moscow, Russia.

[4] M. Kleiner, A. Klaus, D. Becker: Mehrachsiges Runden beim Strangpressen. Aluminium, International Journal for Industrie, Research and Application, Volume 80 12/December 2004, pp.1366-1370.

[5] J. Bickendorf and A. Birkenstock: Roboter als Schlüsselkomponente für das Runden beim Strangpressen,. Robotik 2004, München.

[6] J. Fleischer and G. Stengel: Bahngenerierung für eine robotergeführte Abtrenneinheit für räumlich gekrümmte Strangpressprofile - Einsatz eines CAD-Systems zur Programmierung einer fliegenden Säge. wt Werkstattstechnik online Jahrgang 94 (2004).

[7] J. Fleischer, C. Munzinger, S. Kies, J.P. Schmidt-Ewig, and D. Ruch: Flexible Profilbearbeitung im Leichtbau - Neuartiges Maschinenkonzept zur flexiblen Handhabung und Bearbeitung räumlich gerundeter Profile. wt Werkstattstechnik Jahrgang 94 (2004).

[8] A. Irretier, O. Kassler, F. Hoffmann, P. Mayr: Dry and clean age hardening of aluminum alloys by high-pressure gas quenching. Journal of Materials Engineering and Performance, Vol. 13 (2004) Issue 5, pp.530-536.
