Enhancement of Electric Field inside Metallodielectric Metamaterial

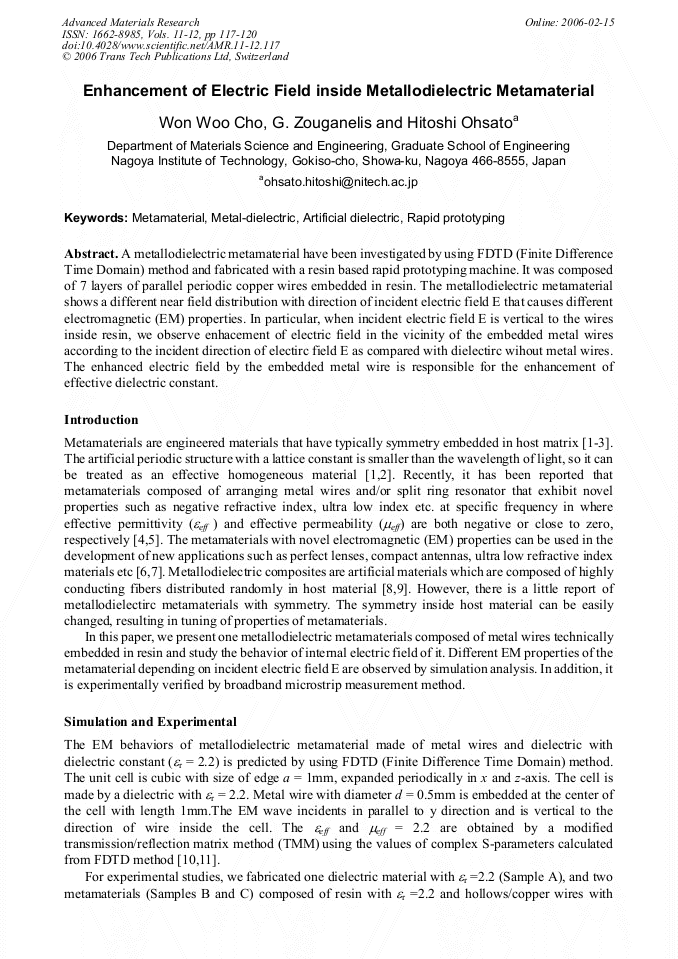

Article Preview

A metallodielectric metamaterial have been investigated by using FDTD (Finite Difference Time Domain) method and fabricated with a resin based rapid prototyping machine. It was composed of 7 layers of parallel periodic copper wires embedded in resin. The metallodielectric metamaterial shows a different near field distribution with direction of incident electric field E that causes different electromagnetic (EM) properties. In particular, when incident electric field E is vertical to the wires inside resin, we observe enhacement of electric field in the vicinity of the embedded metal wires according to the incident direction of electirc field E as compared with dielectirc wihout metal wires. The enhanced electric field by the embedded metal wire is responsible for the enhancement of effective dielectric constant.
