Preparation and Investigation on Magneto-Electric Effect of Cr2O3 Thin Films

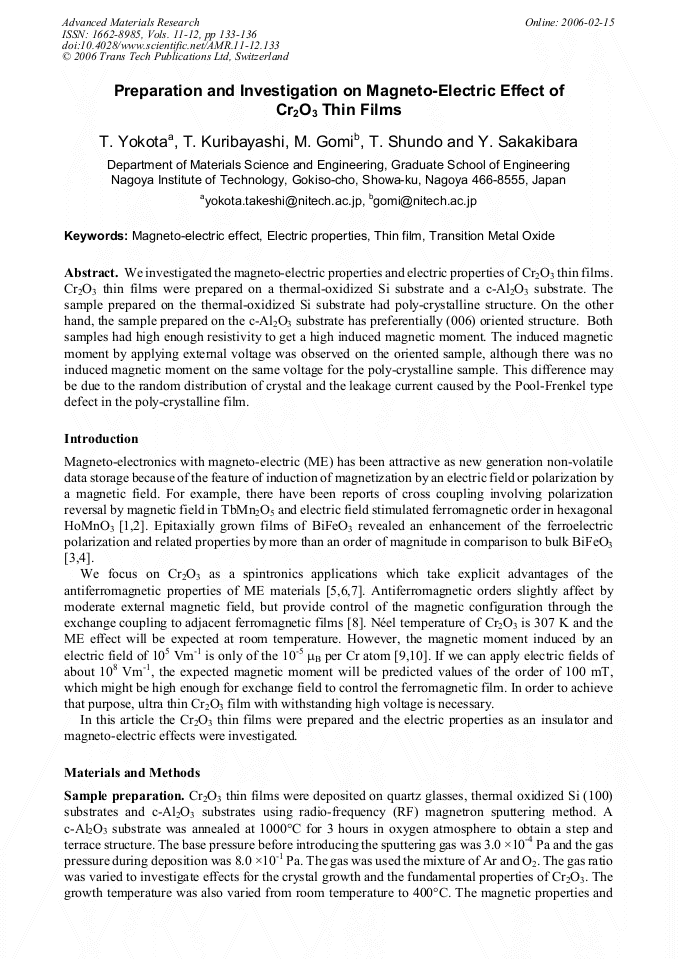

Article Preview

We investigated the magneto-electric properties and electric properties of Cr2O3 thin films. Cr2O3 thin films were prepared on a thermal-oxidized Si substrate and a c-Al2O3 substrate. The sample prepared on the thermal-oxidized Si substrate had poly-crystalline structure. On the other hand, the sample prepared on the c-Al2O3 substrate has preferentially (006) oriented structure. Both samples had high enough resistivity to get a high induced magnetic moment. The induced magnetic moment by applying external voltage was observed on the oriented sample, although there was no induced magnetic moment on the same voltage for the poly-crystalline sample. This difference may be due to the random distribution of crystal and the leakage current caused by the Pool-Frenkel type defect in the poly-crystalline film.



Advanced Materials Research (Volumes 11-12)

Main Theme:

Edited by:

Masayuki Nogami, Riguang Jin, Toshihiro Kasuga and Wantai Yang




T. Yokota et al., "Preparation and Investigation on Magneto-Electric Effect of Cr2O3 Thin Films", Advanced Materials Research, Vols. 11-12, pp. 133-136, 2006

Online since:

February 2006




[1] N. Nur, S. Park, P.A. Sharma, J.S. Ahn, S. Guha and S-W. Cheong: Nature Vol. 429 (2004), p.392.

[2] T. Lottermoser, T. Lonkai, U. Amann, D. Hohlwein, J. Ihringer and M. Fiebig: Nature Vol. 430 (2004), p.541.


[3] J. Wang, J.B. Neaton, H. Zheng, V. Nagarajan, S.B. Ogale, B. Liu, D. Viehland, V. Vaithyanathan, D.G. Schlom, U.V. Waghmare, N.A. Spaldin, K.M. Rabe, M. Wuttig and R. Ramesh: Science Vol. 299 (2003), p.1719.

[4] Y.K. Yun, M. Noda and M. Okuyama: Appl. Phys. Lett. Vol. 83 (2003), p.3981.

[5] I.E. Dzyaloshinskii: Sov. Phys. -JETP Vol. 10 (1960), p.628.

[6] D.N. Astrov: Sov. Phys. -JETP Vol. 11 (1960), p.708.

[7] E. Kita, A. Tasaki and K. Siratori: Jpn. J. Appl. Phys. Vol. 18 (1979), p.1361.

[8] Ch. Binek and B. Doudin: J. Phys. Condens. Matter Vol. 17 (2005), p. L39.

[9] V.J. Folen, G.T. Rado and E.W. Stalder: Phys. Rev. Lett. Vol. 6 (1961), p.607.

[10] J.P. Rivera: Ferroelectrics Vol. 161 (1994), p.165.

[11] A. Hochstrat, Ch. Binek, X. Chen and W. Kleemann: J. Magn. Magn. Mater. Vol. 272-276 (2003), p.325.
