Photochromic Ag-TiO2 Thin Films Fabricated by Dual-Target Helicon Magnetron Sputtering

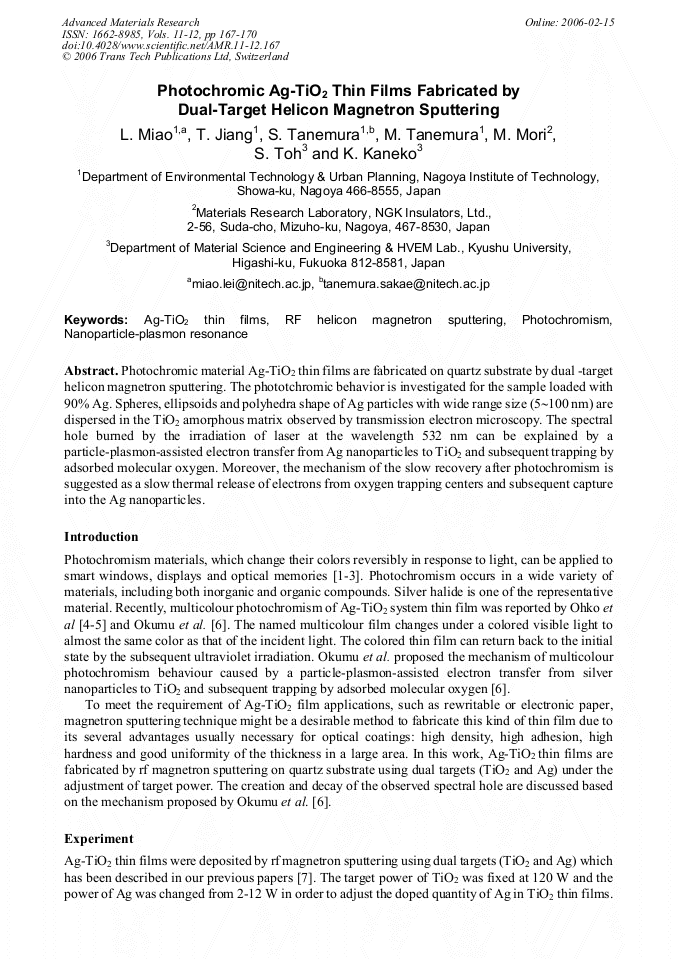

Article Preview

Photochromic material Ag-TiO2 thin films are fabricated on quartz substrate by dual -target helicon magnetron sputtering. The phototchromic behavior is investigated for the sample loaded with 90% Ag. Spheres, ellipsoids and polyhedra shape of Ag particles with wide range size (5∼100 nm) are dispersed in the TiO2 amorphous matrix observed by transmission electron microscopy. The spectral hole burned by the irradiation of laser at the wavelength 532 nm can be explained by a particle-plasmon-assisted electron transfer from Ag nanoparticles to TiO2 and subsequent trapping by adsorbed molecular oxygen. Moreover, the mechanism of the slow recovery after photochromism is suggested as a slow thermal release of electrons from oxygen trapping centers and subsequent capture into the Ag nanoparticles.



Advanced Materials Research (Volumes 11-12)

Main Theme:

Edited by:

Masayuki Nogami, Riguang Jin, Toshihiro Kasuga and Wantai Yang




L. Miao et al., "Photochromic Ag-TiO2 Thin Films Fabricated by Dual-Target Helicon Magnetron Sputtering", Advanced Materials Research, Vols. 11-12, pp. 167-170, 2006

Online since:

February 2006




[1] W.H. Armistead and S.D. Stookey: Science Vol. 144 (1964), p.150.

[2] J.N. Yao, K. Hashimoto and A. Fujishima: Nature Vol. 355 (1992), p.624.

[3] M. Irie: Chem. Rev. Vol. 100 (2000), p.1685.

[4] Y. Ohko, T. Tatsuma, T. Fuji, K. Naoi, C. Niwa, Y. Kubota and A. Fujishima: Nature Materials Vol. 2 (2002), p.29.

[5] K. Naoi, Y. Ohko and T. Tatsuma: J. Am. Chem. Soc. Vol. 126 (2004), p.3664.

[6] J. Okumu, C. Dahmen, A.N. Sprafke, M. Luysberg, G. Von Plessen and M. Wuttig: J. Appl. Phys. Vol. 97 (2005), p.094305.


[7] L. Miao, S. Tanemura, P. Jin, K. Kaneko, A. Terai and N. Nabatova-Gabain: J. Cryst. Growth Vol. 254 (2003), p.100.

[8] K. Hirao, in: Optical Functional material Manual (Optoronics, Tokyo, 1997), p.441.
