Thermal Shock Testing of Ceramics for Circuit Substrates

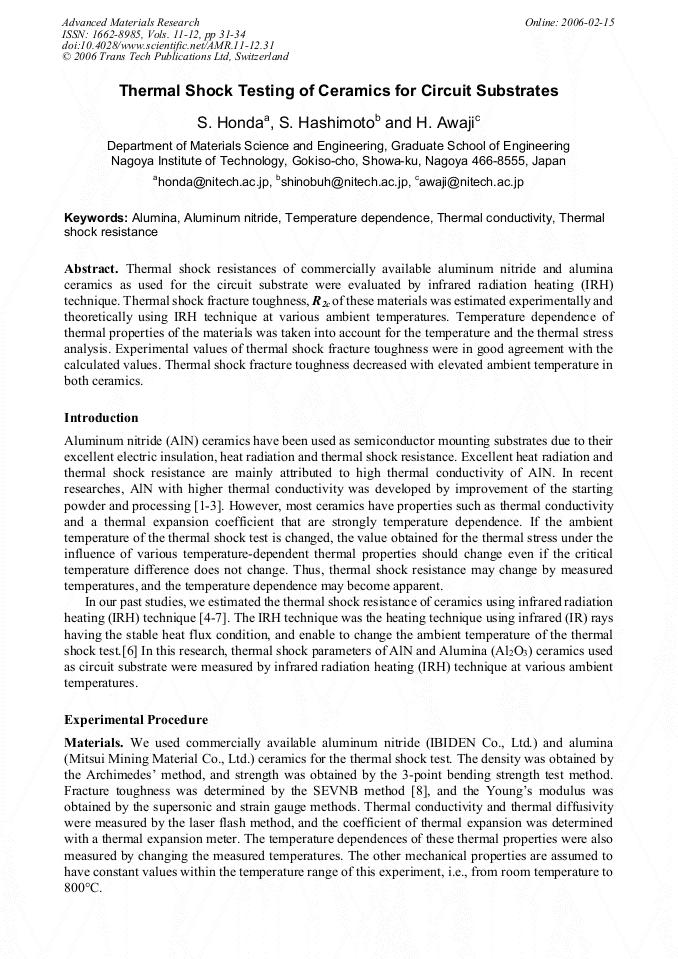

Article Preview

Thermal shock resistances of commercially available aluminum nitride and alumina ceramics as used for the circuit substrate were evaluated by infrared radiation heating (IRH) technique. Thermal shock fracture toughness, R2c of these materials was estimated experimentally and theoretically using IRH technique at various ambient temperatures. Temperature dependence of thermal properties of the materials was taken into account for the temperature and the thermal stress analysis. Experimental values of thermal shock fracture toughness were in good agreement with the calculated values. Thermal shock fracture toughness decreased with elevated ambient temperature in both ceramics.



Advanced Materials Research (Volumes 11-12)

Main Theme:

Edited by:

Masayuki Nogami, Riguang Jin, Toshihiro Kasuga and Wantai Yang






S. Honda et al., "Thermal Shock Testing of Ceramics for Circuit Substrates", Advanced Materials Research, Vols. 11-12, pp. 31-34, 2006

Online since:

February 2006




[1] K. Watari: J. Ceram. Soc. Jpn. Vol. 109 (2001), p. S7.

[2] K. Watari, H. Nakano, K. Urabe, K. Ishizaki, S. Cao and K. Mori: J. Mater. Res. Vol. 11 (2002), p.2940.

[3] H. Nakano, K. Watari, H. Hayashi and K. Urabe: J. Am. Ceram. Soc. Vol. 85 (2002), p.3093.

[4] H. Awaji and T. Endo: J. Ceram. Soc. Jpn. Vol. 103 (1995), p.960.

[5] H. Awaji, S. Honda and T. Nishikawa: JSME Int. J. Vol. A40 (1997), p.414.

[6] S. Honda, T. Nishikawa, H. Awaji, Y. Akimune and N. Hirosaki: Ceram. Trans. Vol. 133 (2002), p.127.

[7] S. Honda, H. Tanaka and H. Awaji: Key Eng. Mater. (2005), in press.

[8] H. Awaji and Y. Sakaida: J. Am. Ceram. Soc. Vol. 73 (1990), p.3522.

[9] W.D. Kingery: J. Am. Ceram. Soc. Vol. 38 (1955), p.2.

[10] D.P.H. Hasselman: J. Am. Ceram. Soc. Vol. 52 (1969), p.600.
