Reactive Wetting Dynamics on 6H-SiC Surface with Oxide Layer

Abstract:

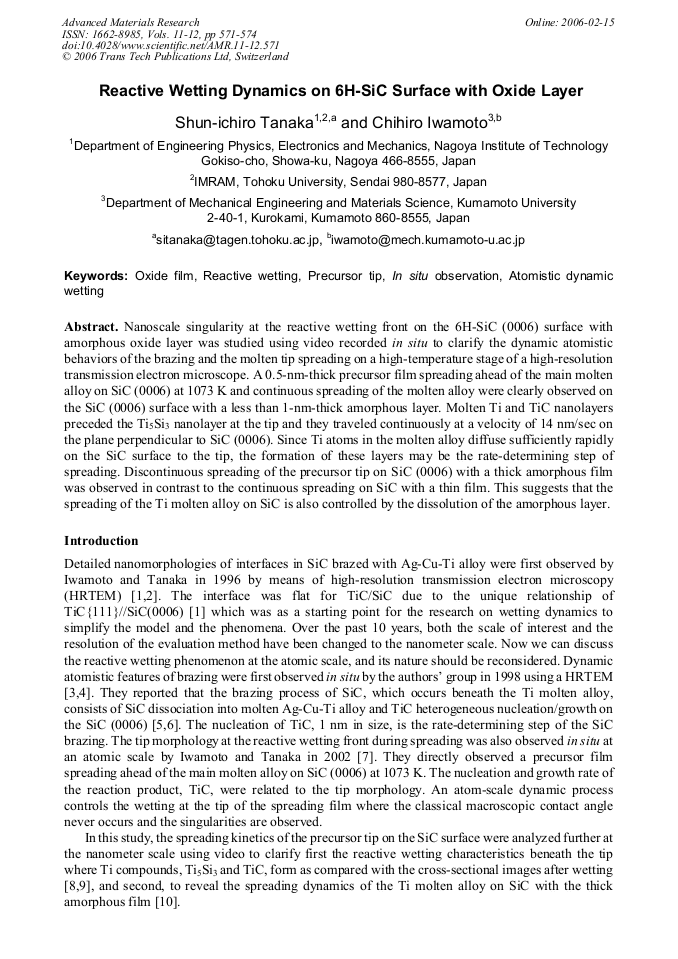

Article Preview

Nanoscale singularity at the reactive wetting front on the 6H-SiC (0006) surface with amorphous oxide layer was studied using video recorded in situ to clarify the dynamic atomistic behaviors of the brazing and the molten tip spreading on a high-temperature stage of a high-resolution transmission electron microscope. A 0.5-nm-thick precursor film spreading ahead of the main molten alloy on SiC (0006) at 1073 K and continuous spreading of the molten alloy were clearly observed on the SiC (0006) surface with a less than 1-nm-thick amorphous layer. Molten Ti and TiC nanolayers preceded the Ti5Si3 nanolayer at the tip and they traveled continuously at a velocity of 14 nm/sec on the plane perpendicular to SiC (0006). Since Ti atoms in the molten alloy diffuse sufficiently rapidly on the SiC surface to the tip, the formation of these layers may be the rate-determining step of spreading. Discontinuous spreading of the precursor tip on SiC (0006) with a thick amorphous film was observed in contrast to the continuous spreading on SiC with a thin film. This suggests that the spreading of the Ti molten alloy on SiC is also controlled by the dissolution of the amorphous layer.

Info:

Periodical:

Advanced Materials Research (Volumes 11-12)

Main Theme:

Edited by:

Masayuki Nogami, Riguang Jin, Toshihiro Kasuga and Wantai Yang

Pages:

571-574

DOI:

10.4028/www.scientific.net/AMR.11-12.571

Citation:

S. I. Tanaka and C. Iwamoto, "Reactive Wetting Dynamics on 6H-SiC Surface with Oxide Layer", Advanced Materials Research, Vols. 11-12, pp. 571-574, 2006

Online since:

February 2006

Export:

Price:

$38.00

[1] C. Iwamoto, M. Nomura and S. -I. Tanaka: Proc. 2nd Int. Conf. High Temperature Capillarity (HTC-97) (Foundry Research Institute, 1998), p.106.

[2] C. Iwamoto and S. -I. Tanaka: Proc. Interface Sci. Mater. Interconnection JIMIS-8 (Japan Institute of Metal, 1996), p.311.

[3] C. Iwamoto and S. -I. Tanaka: Acta Materialia Vol. 46 (1998), p.2381.

[4] C. Iwamoto and S. -I. Tanaka: Appl. Surf. Sci. Vol. 130/132 (1998), p.639.

[5] C. Iwamoto and S. -I. Tanaka: Mater. Sci. Forum Vol. 294-296 (1999), p.589.

[6] C. Iwamoto, H. Ichinose and S. -I. Tanaka: Phil. Mag. A Vol. 79 (1999), p.85.

[7] C. Iwamoto and S. -I. Tanaka: Acta Materialia Vol. 50 (2002), p.749.

[8] M. Nomura, T. Ichimori, C. Iwamoto and S. -I. Tanaka: J. Mater. Sci. Vol. 35 (2000), p.3953.

[9] M. Nomura, C. Iwamoto and S. -I. Tanaka: Proc. 3rd Int. Conf. High Temperature Capillarity (HTC-2000), Kurashiki, Trans. JWRI Special Issue, Vol. 30 (2001), p.113.

[10] S. -I. Tanaka and C. Iwamoto: Mater. Sci. Forum Vol. 502 (2005), p.269.
