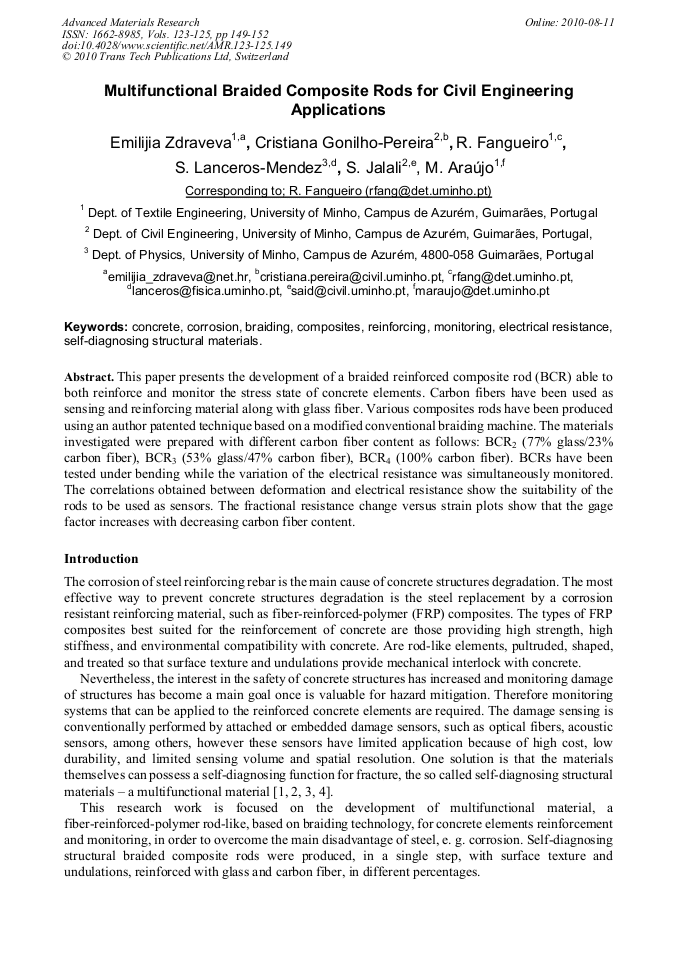

Multifunctional Braided Composite Rods for Civil Engineering Applications


Article Preview

This paper presents the development of a braided reinforced composite rod (BCR) able to both reinforce and monitor the stress state of concrete elements. Carbon fibers have been used as sensing and reinforcing material along with glass fiber. Various composites rods have been produced using an author patented technique based on a modified conventional braiding machine. The materials investigated were prepared with different carbon fiber content as follows: BCR2 (77% glass/23% carbon fiber), BCR3 (53% glass/47% carbon fiber), BCR4 (100% carbon fiber). BCRs have been tested under bending while the variation of the electrical resistance was simultaneously monitored. The correlations obtained between deformation and electrical resistance show the suitability of the rods to be used as sensors. The fractional resistance change versus strain plots show that the gage factor increases with decreasing carbon fiber content.



Advanced Materials Research (Volumes 123-125)

Edited by:

Joong Hee Lee




E. Zdraveva et al., "Multifunctional Braided Composite Rods for Civil Engineering Applications", Advanced Materials Research, Vols. 123-125, pp. 149-152, 2010

Online since:

August 2010




[1] D. D. L. Chung, Self-monitoring structural materials. Composite Materials Research Laboratory, State University of New York at Buffalo, Buffalo, NY 14260-4400, USA, (1997).

[2] Yoshiki Okuhara, Hideaki Matsubara, Memorizing maximum strain in carbon - fibre reinforced plastic composites by measuring electrical resistance under pre - tensile stress. Comp Sci and Tech 65 (2005) 2148-2155.


[3] F. Nanni, F. Auricchio, F. Sarchi, G. Forte, G. Gusmano, Self - sensing CF-GFRP rods as mechanical reinforcement and sensors of concrete beams. Smart Mater Struct 15 (2006) 182-186.


[4] Inpil Kang, et al; Introduction to carbon nanotube and nanofiber smart materials. Composites: part B 37, March 2006, 382-394.
