Neutron and Photon Research for Texture and Stress Characterisation of Advanced Materials

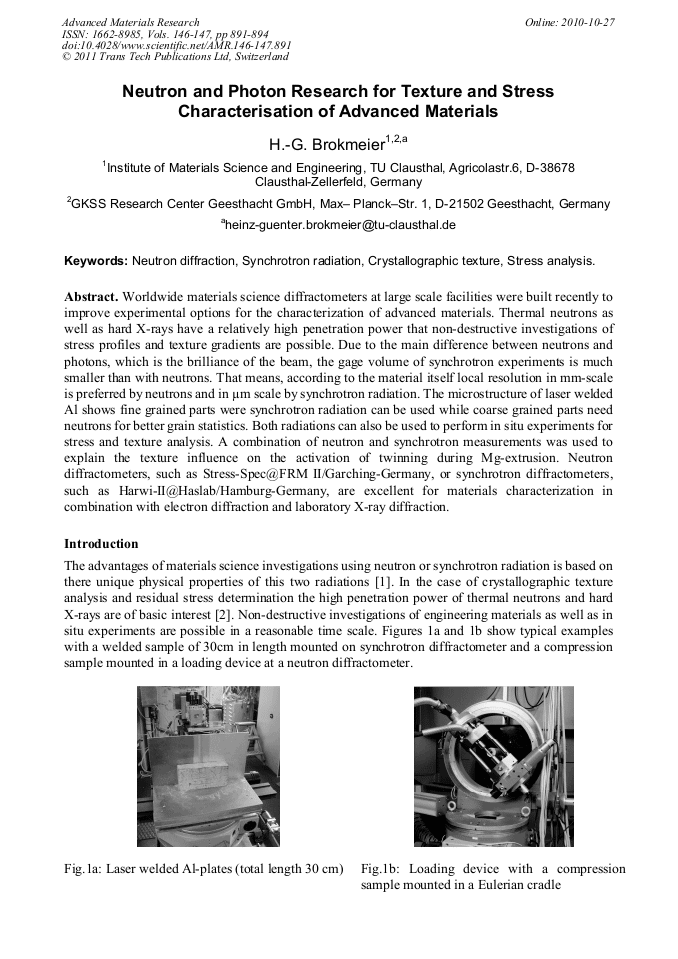

Article Preview

Worldwide materials science diffractometers at large scale facilities were built recently to improve experimental options for the characterization of advanced materials. Thermal neutrons as well as hard X-rays have a relatively high penetration power that non-destructive investigations of stress profiles and texture gradients are possible. Due to the main difference between neutrons and photons, which is the brilliance of the beam, the gage volume of synchrotron experiments is much smaller than with neutrons. That means, according to the material itself local resolution in mm-scale is preferred by neutrons and in μm scale by synchrotron radiation. The microstructure of laser welded Al shows fine grained parts were synchrotron radiation can be used while coarse grained parts need neutrons for better grain statistics. Both radiations can also be used to perform in situ experiments for stress and texture analysis. A combination of neutron and synchrotron measurements was used to explain the texture influence on the activation of twinning during Mg-extrusion. Neutron diffractometers, such as Stress-Spec@FRM II/Garching-Germany, or synchrotron diffractometers, such as Harwi-II@Haslab/Hamburg-Germany, are excellent for materials characterization in combination with electron diffraction and laboratory X-ray diffraction.



Advanced Materials Research (Volumes 146-147)

Edited by:

Sihai Jiao, Zhengyi Jiang and Jinglong Bu






H. G. Brokmeier "Neutron and Photon Research for Texture and Stress Characterisation of Advanced Materials", Advanced Materials Research, Vols. 146-147, pp. 891-894, 2011

Online since:

October 2010




[1] W. Reimers, A.R. Pyzalla, A. Schreyer, H. Clemens: Neutrons and Synchrotron Radiation in Engeneering Materials Science (Wiley-VCH Germany 2008).

DOI: 10.1002/9783527621927

[2] H. -G. Brokmeier: Physica B: Condensed Matter Vol. 385-386 (2006) p.623.

[3] H. J. Bunge: Advanced Engineering Materials Vol. 3 (2001) p.25.

[4] H. F. Poulsen, W. Ludwig and S. Schmidt in: Neutrons and Synchrotron Radiation in Engeneering Materials Science edited by W. Reimers, A.R. Pyzalla, A. Schreyer, H. Clemens, chapter 19, Wiley-VCH Germany (2008).

DOI: 10.1002/9783527621927

[5] A. King, M. Herbig, W. Ludwig, P. Reischig, E.M. Lauridsen, T. Marrow and J.Y. Buffière: Nucl. Instrum. and Methods in Phyiscs Research B Vol 268 (2010) p.291.

[6] H. -G. Brokmeier, S. Lenser, R. Schwarzer, V. Ventzke, S. Riekehr, M. Kocak and J. Homeyer: Materials Science Forum Vol. 539-543 (2007) p.3894.

DOI: 10.4028/

[7] S. B. Yi, H. -G. Brokmeier, R.E. Bolmaro, K.U. Kainer and T. Lippmann: Scripta Mat. Vol 51 (2004) p.455.

[8] R.A. Lebensohn, C.N. Tome; Acta Metall Mater Vol. 41 (1993) p.2611.
