Evaluation of the Adhesion of Ultra-Thin Teflon-Like Films Deposited by Plasma on 316L Stainless Steel for Long-Term Stable Drug-Eluting Stents

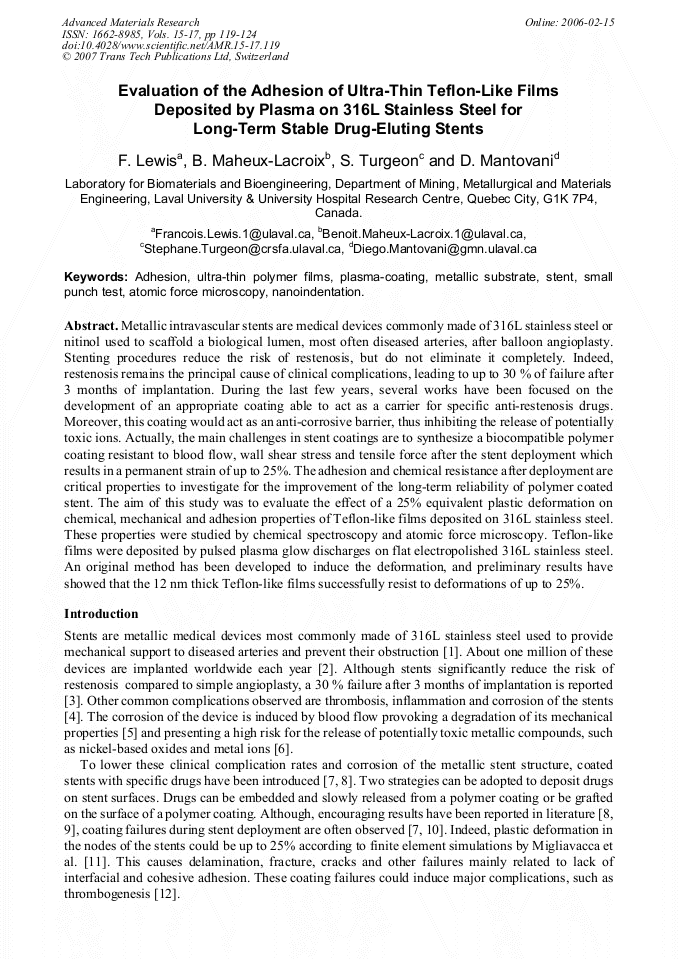

Article Preview

Metallic intravascular stents are medical devices commonly made of 316L stainless steel or nitinol used to scaffold a biological lumen, most often diseased arteries, after balloon angioplasty. Stenting procedures reduce the risk of restenosis, but do not eliminate it completely. Indeed, restenosis remains the principal cause of clinical complications, leading to up to 30 % of failure after 3 months of implantation. During the last few years, several works have been focused on the development of an appropriate coating able to act as a carrier for specific anti-restenosis drugs. Moreover, this coating would act as an anti-corrosive barrier, thus inhibiting the release of potentially toxic ions. Actually, the main challenges in stent coatings are to synthesize a biocompatible polymer coating resistant to blood flow, wall shear stress and tensile force after the stent deployment which results in a permanent strain of up to 25%. The adhesion and chemical resistance after deployment are critical properties to investigate for the improvement of the long-term reliability of polymer coated stent. The aim of this study was to evaluate the effect of a 25% equivalent plastic deformation on chemical, mechanical and adhesion properties of Teflon-like films deposited on 316L stainless steel. These properties were studied by chemical spectroscopy and atomic force microscopy. Teflon-like films were deposited by pulsed plasma glow discharges on flat electropolished 316L stainless steel. An original method has been developed to induce the deformation, and preliminary results have showed that the 12 nm thick Teflon-like films successfully resist to deformations of up to 25%.



Advanced Materials Research (Volumes 15-17)

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer and C. Ravindran




F. Lewis et al., "Evaluation of the Adhesion of Ultra-Thin Teflon-Like Films Deposited by Plasma on 316L Stainless Steel for Long-Term Stable Drug-Eluting Stents", Advanced Materials Research, Vols. 15-17, pp. 119-124, 2007

Online since:

February 2006




[1] M.M. Mazumder, S. De, S. Trigwell, N. Ali, M.K. Mazumder, and J.L. Mehta: J. Biomater. Sci. Vol. 14 (2003), p.1351.

[2] MedTech insight: Emerging U.S. markets for myocardial revascularization, repair, and regeneration products and technologies (USA 2004).

[3] H. Wieneke, T. Sawitowski, S. Wnendt, A. Fischer, O. Dirsch, A. Karoussos Ira, and R. Erbel: Herz Vol. 27 (2002), p.518.

DOI: 10.1007/s00059-002-2405-4

[4] G. Riepe, C. Heintz, E. Kaiser, N. Chakfe, M. Morlock, M. Delling, and H. Imig: Eur. J. Vasc. Endovasc. Surg. Vol. 24 (2002), p.117.

[5] O.F. Bertrand, R. Sipehia, R. Mongrain, J. Rodes, J. -C. Tardif, L. Bilodeau, G. Cote, and M.G. Bourassa: J. Am. Coll. Cardiol. Vol. 32 (1998), p.562.

[6] M. Uo, F. Watari, A. Yokoyama, H. Matsuno, and T. Kawasaki: Biomaterials Vol. 22 (2001), p.677.

[7] E. Regar, G. Sianos, and P.W. Serruys: British Medical Bulletin Vol. 59 (2001), p.227.

[8] T.C. Woods and A.R. Marks: Annu. Rev. Med. Vol. 55 (2004), pp.169-178.

[9] M.N. Babapulle and M.J. Eisenberg: Circulation Vol. 106 (2002), p.2859.

[10] J. Lahann, D. Klee, H. Thelen, H. Bienert, D. Vorwerk, and H. Hoecker: J. Mater. Sci. Mater. Med. Vol. 10 (1999), p.443.

[11] F. Migliavacca, L. Petrini, V. Montanari, I. Quagliana, F. Auricchio, and G. Dubini: Med. Eng. Phys. Vol. 27 (2005), p.13.

[12] S. Anderson, K. Vilendrer, and S. Oktay: Medical Device Materials - Proceedings of the Materials and Processes for Medical Devices Conference Vol. (2003), p.226.

[13] Food and Drug Administration: CDRH Guidance for interventional cardiology devices: PTCA catheters, atherectomy catheters, laser, intravascular stents (USA 1995).

[14] S. Windecker, I. Mayer, G. De Pasquale, W. Maier, O. Dirsch, P. De Groot, Y.P. Wu, G. Noll, B. Leskosek, B. Meier, and O.M. Hess: Circulation Vol. 104 (2001), p.928.

DOI: 10.1161/hc3401.093146

[15] Y. Nakayama, K. Ji-Youn, S. Nishi, H. Ueno, and T. Matsuda: J. Biomed. Mater. Res. Vol. 57 (2001), p.559.

[16] F. Lewis, B. Maheux-Lacroix, S. Turgeon, and D. Mantovani: J. Adh. Sci. Tech. Vol. (2005), Submitted.

[17] M. Haidopoulos, S. Turgeon, G. Laroche, and D. Mantovani: Plasma Process. Polym. Vol. 2 (2005), p.424.

[18] W.C. Oliver and G.M. Pharr: J. Mater Res. Vol. 7 (1992), p.1564.

[19] M.R. Stoudt and J.B. Hubbard: Acta Mater. Vol. 53 (2005), p.4293.
