Annealing Effect on the Thermoelectric Properties of Hot Extruded Bi2(Te0.94Se0.06)3+0.07wt%I+0.03wt%CuBr+0.02wt%Te Compound


Article Preview

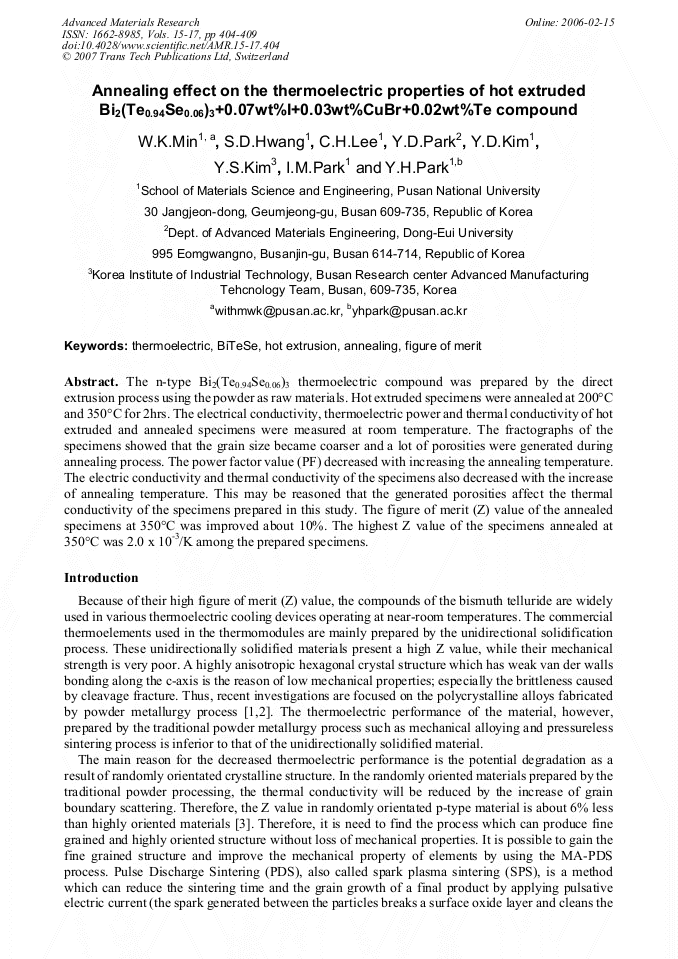

The n-type Bi2(Te0.94Se0.06)3 thermoelectric compound was prepared by the direct extrusion process using the powder as raw materials. Hot extruded specimens were annealed at 200°C and 350°C for 2hrs. The electrical conductivity, thermoelectric power and thermal conductivity of hot extruded and annealed specimens were measured at room temperature. The fractographs of the specimens showed that the grain size became coarser and a lot of porosities were generated during annealing process. The power factor value (PF) decreased with increasing the annealing temperature. The electric conductivity and thermal conductivity of the specimens also decreased with the increase of annealing temperature. This may be reasoned that the generated porosities affect the thermal conductivity of the specimens prepared in this study. The figure of merit (Z) value of the annealed specimens at 350°C was improved about 10%. The highest Z value of the specimens annealed at 350°C was 2.0 x 10-3/K among the prepared specimens.



Advanced Materials Research (Volumes 15-17)

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer and C. Ravindran




W. K. Min et al., "Annealing Effect on the Thermoelectric Properties of Hot Extruded Bi2(Te0.94Se0.06)3+0.07wt%I+0.03wt%CuBr+0.02wt%Te Compound", Advanced Materials Research, Vols. 15-17, pp. 404-409, 2007

Online since:

February 2006




[1] B.Y. Jung, T.S. Oh, D.B. Hyun and J.D. shim : J. Kor. Phys. Soc. 31 (1972) p.219.

[2] J.Y. Yang, T. Aizawa, A. Yamanoto and T. Ohta : J. Alloys and Compounds 312 (2000) p.326.

[3] Goldsmid, H, J.: Electronic Refrigeration (Pion Ltd., London 1986).

[4] X.D. Liu and Y.H. Park: Mater. Trans 43 (2002) p.681.

[5] Z.M. Sun, H. Hashimoto: Intermetallics 11 (2003) p.825.

[6] D.B. Hyun, J.S. Hwang, T.S. Oh, J.D. Shim and N.V. kolomoets: J. Phys. Chem. Solids 59 (1998) p.1039.

[7] D. Perrin, M. Chitroub, S. Scherrer and H. Scherrer: J. Phys. Chem. Solids 61 (2000) p.1687.

[8] D.B. Hyun, T.S. Oh, J.S. Hwang and J.D. Shim: Scripta Mater 44 (2001) p.455.

[9] P. Larson, V.A. Greanya, W.C. Tonjes, R. Liu and S.D. Mahanti: Physical Review B 65 (2002) p.1.

[10] H.J. Yoo, C.H. Lee, Y.H. Park and I.M. Park: Mater. Sci. Forum 475-479 (2005) p.1759.

[11] K. Wakamura: J. Phys. Chem. Solids 63 (2002) p.399.

[12] V.A. Kulbachinskii, A.Y. Kaminskii, V.G. Kytin and A. de Visser: J. Magnetism and Magnetic Mater. 272-276 (2004) p. (1991).

[13] S.J. Youn and A.J. Freeman : Physical review B 63 (2000) 085112.

[14] V. Petkov and T. Vogt: Solid State Communications 127 (2003) p.43.

[15] F.K. Lotgering: J. Inorg, Nucl. Chem. 9 (1959) p.113.

[16] P. Miura, Y. Sato, K. Fukuda, K. Nishimura and K. Ikeda: Mater. Sci. Eng. A277 (2000) p.244.

[17] T. Sekimoto: J. Alloys and Compounds 394 (2005) p.122.
