Modeling Relations between Processing, Microstructure and Mechanical Properties of Porous Bioceramics

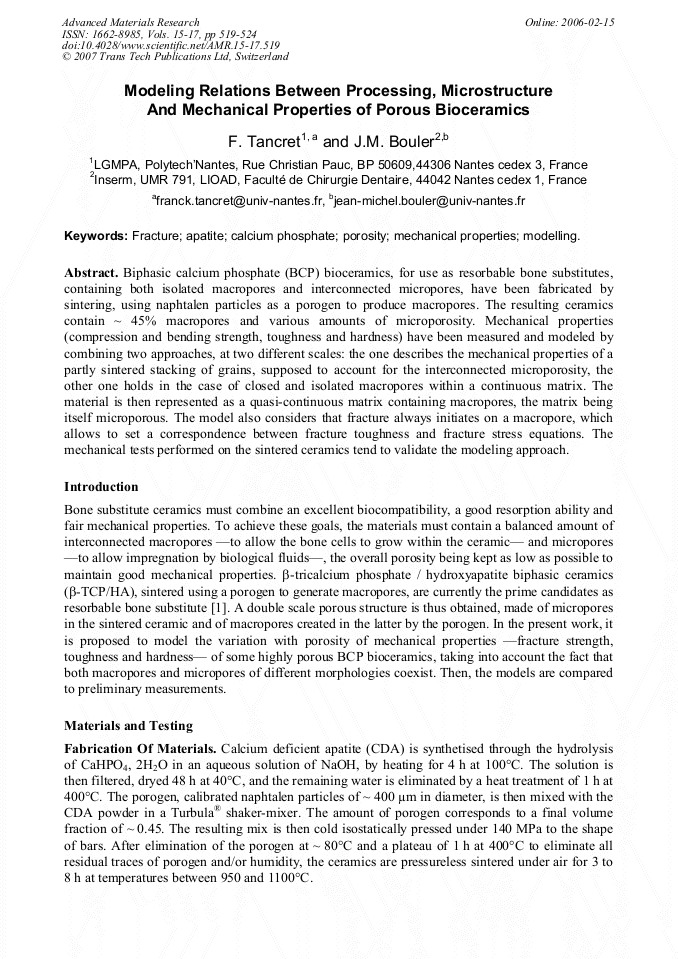

Article Preview

Biphasic calcium phosphate (BCP) bioceramics, for use as resorbable bone substitutes, containing both isolated macropores and interconnected micropores, have been fabricated by sintering, using naphtalen particles as a porogen to produce macropores. The resulting ceramics contain ~ 45% macropores and various amounts of microporosity. Mechanical properties (compression and bending strength, toughness and hardness) have been measured and modeled by combining two approaches, at two different scales: the one describes the mechanical properties of a partly sintered stacking of grains, supposed to account for the interconnected microporosity, the other one holds in the case of closed and isolated macropores within a continuous matrix. The material is then represented as a quasi-continuous matrix containing macropores, the matrix being itself microporous. The model also considers that fracture always initiates on a macropore, which allows to set a correspondence between fracture toughness and fracture stress equations. The mechanical tests performed on the sintered ceramics tend to validate the modeling approach.



Advanced Materials Research (Volumes 15-17)

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer and C. Ravindran




F. Tancret and J. M. Bouler, "Modeling Relations between Processing, Microstructure and Mechanical Properties of Porous Bioceramics", Advanced Materials Research, Vols. 15-17, pp. 519-524, 2007

Online since:

February 2006




[1] G. Daculsi, O. Laboux, O. Malard, and P. Weiss: Current state of the art of biphasic calcium phosphate bioceramics, Journal of Materials Science: Materials in Medicine, Vol 14(3) (2003), pp.195-200.

DOI: 10.1023/a:1022842404495

[2] A.S. Wagh, R.B. Poeppel and J.P. Singh: Open pore description of mechanical properties of ceramics, Journal of Materials Science, Vol 26(14) (1991), pp.3862-3868.

DOI: 10.1007/bf01184983

[3] J.P. Jernot, M. Coster and J.L. Chermant: Model to describe the elastic modulus of sintered materials, Physica Status Solidi (a), Vol 72(1) (1982), pp.325-332.

DOI: 10.1002/pssa.2210720133

[4] A.S. Wagh, J.P. Singh and R.B. Poeppel: Dependence of ceramic fracture properties on porosity, Journal of Materials Science, Vol 28(13) (1993), pp.3589-3593.

DOI: 10.1007/bf01159841

[5] P. Arató, E. Besenyei, A. Kele and F. Wéber: Mechanical properties in the initial stage of sintering, Journal of Materials Science, Vol 30(7) (1995), pp.1863-1871.

DOI: 10.1007/bf00351623

[6] F. Tancret, G. Desgardin and F. Osterstock: Influence of porosity on the mechanical properties of cold isostatically pressed and sintered YBa2Cu3O7-x superconductors, Philosophical Magazine A, Vol 75(2) (1997), pp.505-523.

DOI: 10.1080/01418619708205155

[7] M. Suganuma: Scanning acoustic microscopy of indentation damage in Y2O3-stabilized tetragonal zirconia, Journal of the American Ceramic Society, Vol 78(11) (1995), pp.2889-2896.

DOI: 10.1111/j.1151-2916.1995.tb09060.x
