Research on CMP Characteristics Attribute to Groove Size

Abstract:

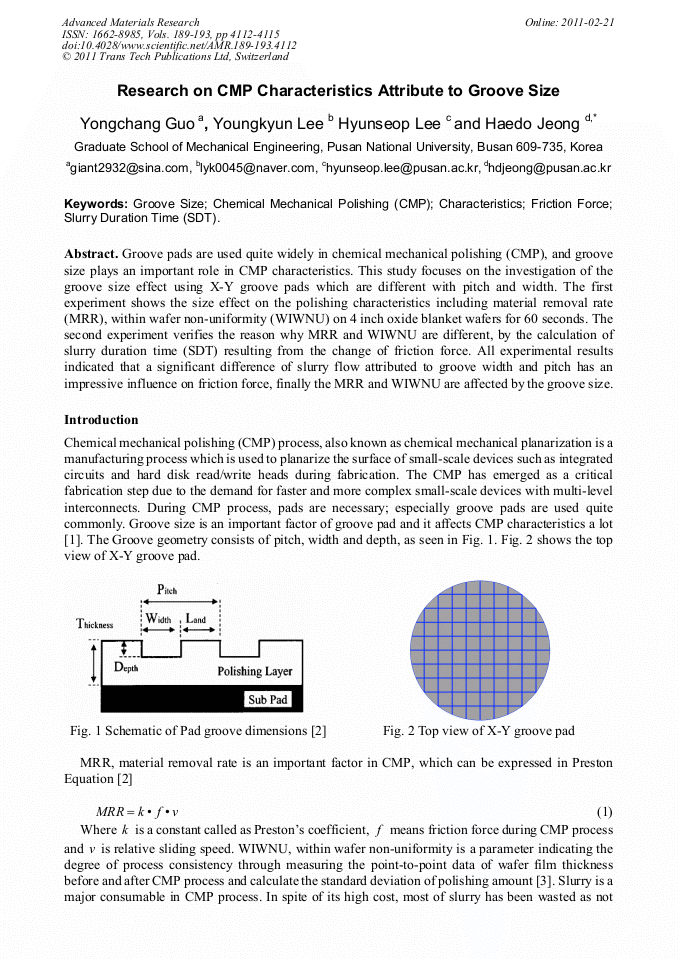

Article Preview

Groove pads are used quite widely in chemical mechanical polishing (CMP), and groove size plays an important role in CMP characteristics. This study focuses on the investigation of the groove size effect using X-Y groove pads which are different with pitch and width. The first experiment shows the size effect on the polishing characteristics including material removal rate (MRR), within wafer non-uniformity (WIWNU) on 4 inch oxide blanket wafers for 60 seconds. The second experiment verifies the reason why MRR and WIWNU are different, by the calculation of slurry duration time (SDT) resulting from the change of friction force. All experimental results indicated that a significant difference of slurry flow attributed to groove width and pitch has an impressive influence on friction force, finally the MRR and WIWNU are affected by the groove size.

Info:

Periodical:

Advanced Materials Research (Volumes 189-193)

Edited by:

Zhengyi Jiang, Shanqing Li, Jianmin Zeng, Xiaoping Liao and Daoguo Yang

Pages:

4112-4115

DOI:

10.4028/www.scientific.net/AMR.189-193.4112

Citation:

Y. C. Guo et al., "Research on CMP Characteristics Attribute to Groove Size", Advanced Materials Research, Vols. 189-193, pp. 4112-4115, 2011

Online since:

February 2011

Export:

Price:

$38.00

[1] D. R. Yeomans, D. DeNardis, L. Borucki, and A. Philipossian:Journal of the Electrochemical Society, 155(10) (2008), H797-H806.

[2] K. H. Park, J. W. Jung, H. S. Lee, and H. D. Jeong: Journal of the Korean Society of Precision Engineering, Vol. 22, No. 8 (2005), pp.27-33.

[3] Planarization Technical Term Dictionary, edited by Planarization and CMP Technical Committee, JSPE, Japan and NSF/SRC Engineering Research Center for Environmentally Benign Semiconductor Manufacturing(ERC), USA, p.179, 248.

[4] D.R. Yeomans, T. Doi, M. Kinoshita, T. Suzuki: Journal of the Electrochemical Society, 152(1) (2005), G62-G67.

[5] X. Wei, Y. Zhuang, T. Ashizawa, H. Morishima and A. Philipossian: Material Research Science Spring Meeting Symposium E 1. 4 (2009).
