Study of the Hydride Morphology in the CANDU Reactor Pressure Tube Modified by Heat Treatment

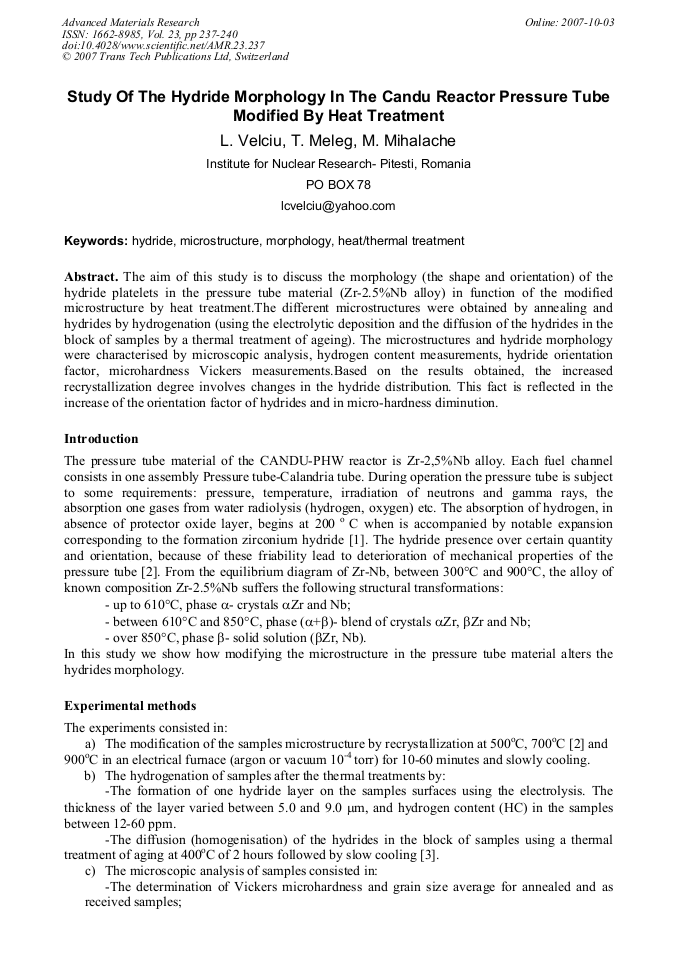

Article Preview

The aim of this study is to discuss the morphology (the shape and orientation) of the hydride platelets in the pressure tube material (Zr-2.5%Nb alloy) in function of the modified microstructure by heat treatment.The different microstructures were obtained by annealing and hydrides by hydrogenation (using the electrolytic deposition and the diffusion of the hydrides in the block of samples by a thermal treatment of ageing). The microstructures and hydride morphology were characterised by microscopic analysis, hydrogen content measurements, hydride orientation factor, microhardness Vickers measurements.Based on the results obtained, the increased recrystallization degree involves changes in the hydride distribution. This fact is reflected in the increase of the orientation factor of hydrides and in micro-hardness diminution.



Edited by:

Ionel Chicinaş and Traian Canta




L. Velciu et al., "Study of the Hydride Morphology in the CANDU Reactor Pressure Tube Modified by Heat Treatment", Advanced Materials Research, Vol. 23, pp. 237-240, 2007

Online since:

October 2007




[1] Gh. Vasaru, Zirconiu si implicatiile sale in energia nucleara, -Ed. Tehnica, Bucuresti, (1989).

[2] L. Velciu, M. Mihalache, T. Meleg, D. Benga, Influence of the Microcrystalline Structures on the Morphology Hydride Platelets into the Material Pressure Tubes, -SIEN Bucuresti, (2003).

[3] A.D. Lepage, W.A., Ferris, G.A. Ledoux, Procedure for Adding Hydrogen to small Sections of Zirconium Alloys, F.C. IAEA-03, AECL, (1998).

[4] M. Mihalache, M. Soare, Metode numerice si rezultate experimentale privind analiza cantitativa a imaginilor optice ale hidrurilor in aliaje de zirconiu, ICN-Pitesti, (1999).

[5] ** TS-XX-37354-1 Zirconium Alloy Seamless Tubing for Reactor Fuel Sheathing, 1981 Figure 7-Microstructure after 10 minutes of thermal treatment at 900°C Figure 8-Hydrides on the micro-structurally modified sample after 10 minutes of thermal treatment at 900°C.
