Study on Removal and Embedding Mechanism of CdZnTe Using Loose Abrasive

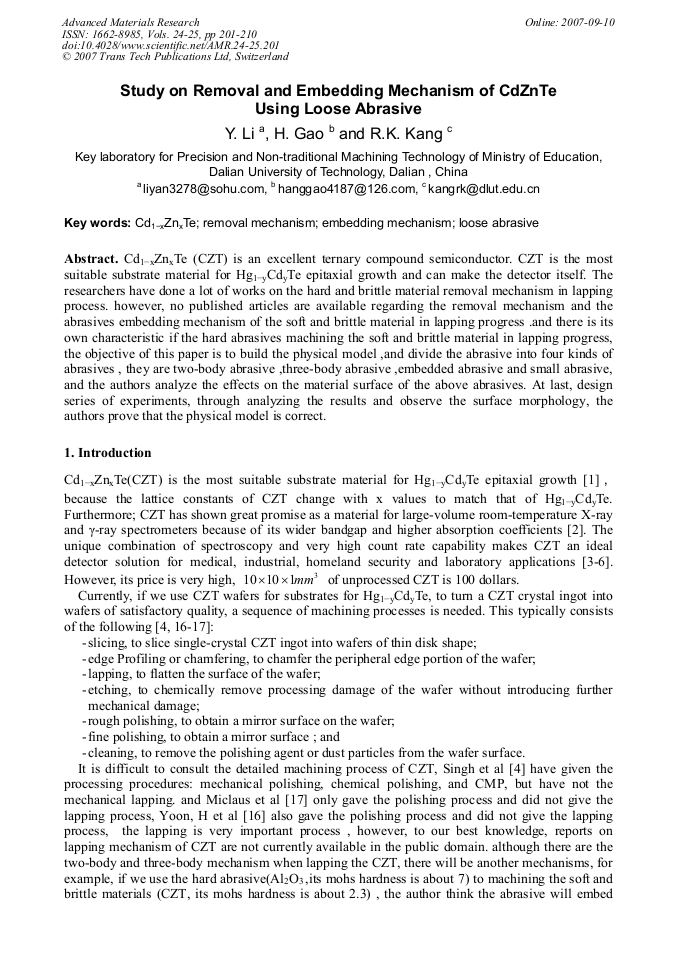

Article Preview

Cd1−xZnxTe (CZT) is an excellent ternary compound semiconductor. CZT is the most suitable substrate material for Hg1−yCdyTe epitaxial growth and can make the detector itself. The researchers have done a lot of works on the hard and brittle material removal mechanism in lapping process. however, no published articles are available regarding the removal mechanism and the abrasives embedding mechanism of the soft and brittle material in lapping progress .and there is its own characteristic if the hard abrasives machining the soft and brittle material in lapping progress, the objective of this paper is to build the physical model ,and divide the abrasive into four kinds of abrasives , they are two-body abrasive ,three-body abrasive ,embedded abrasive and small abrasive, and the authors analyze the effects on the material surface of the above abrasives. At last, design series of experiments, through analyzing the results and observe the surface morphology, the authors prove that the physical model is correct.



Advanced Materials Research (Volumes 24-25)

Edited by:

Hang Gao, Zhuji Jin and Yannian Rui




Y. Li et al., "Study on Removal and Embedding Mechanism of CdZnTe Using Loose Abrasive ", Advanced Materials Research, Vols. 24-25, pp. 201-210, 2007

Online since:

September 2007




[1] S. Sen and J.E. Stannard, Prog. Cryst, Growth Charact. Mater , 28 (1994), p.253.

[2] O. Limousin, Nucl. Instr. and Meth, A 504 (2003), p.113.

[3] Bozzi, A. C., and Biasoli de Mello, J. D., Wear Resistance and Mechanisms of WC-12%Co Thermal Sprayed Coatings in Three-Body Abrasion, Wear, 233-235: 575-587 (1999).

DOI: 10.1016/s0043-1648(99)00206-9

[4] Singh, R, et al. Molecular Beam Epitaxy Growth of High-Quality HgCdTe LWIR Layers on Polished and Repolished CdZnTe Substrates, Journal of Electronic Materials, ( 2005 ) The effect of the two-body abrasives The effect of the three-body abrasives The effect of the embedded abrasives The effect of the small abrasives.

DOI: 10.1007/s11664-005-0037-1

[5] Doty F p , Schetzina J F , et al.J Vac Sci Technol, (1992), BI 0: 1418.

[6] Eisen Y, Shor A.J Crystal Growth, (1998), 184: 1302.

[7] T. Kasai, K. Horio, T. Karaki-Doy, Ann. CIRP 39 (1) (1990).

[8] Trezona, R. I., Allsopp, D. N, and Hutchings, I. M., Transition Between Two-Body and Three-Body Abrasive Wear: Influence of the Test Conditions in the Microscale Abrasive Wear Test, Wear, pp.205-214 (1999).

DOI: 10.1016/s0043-1648(98)00358-5

[9] Grinding and Lapping Compounds, publ. United States Products, Co.

[10] Marinescu, Joan D.; Rowe, W. Brian; Dimitrov, Boris; Inasaki, Ichiro ,,Tribology of Abrasive Machining Processes , (2004).

DOI: 10.1016/b978-081551490-9.50002-5

[11] F.W. Huo Z.J. Jin F.L. Zhao R.K. Kang and D. M Guo. Experimental investigation of brittle to ductile transition of single crystal silicon by single grain grinding , Key Engineering Materials. (2004).

DOI: 10.4028/

[12] Bifano T G, Dow T.A. and Scattergood R.O. Ductile Regime Grinding: A New T echnology for Machining Brittle Materials Science, ASME J. of Eng. for Ind., (1991), 113: 184-189.

DOI: 10.1115/1.2899676

[13] Komanduri, R., Lucca, D. A., and Tani, Y., Technological Advances in FineAbrasive Processes, Annals of the CIRP, 46/2: 545-596 (1997).

DOI: 10.1016/s0007-8506(07)60880-4

[14] Somiya, S., Advanced Technical Ceramics, Academic Press, Inc., San Diego, CA (1984).

[15] Ekkard Brinksmeier et al. Finishing of structured surfaces by abrasive polishing, D-28359 Bremen(2005).

[16] Yoon, H, Van Scyoc, J M, Goorsky, M S, Hermon, H, Et al . Investigation of the effects of polishing and etching on the quality of Cd1-xZnxTe using spatial mapping techniques, Journal of Electronic Materials, (1997).

DOI: 10.1007/s11664-997-0189-2

[17] Miclaus, C, Malouf, G, Johnson, S M, Rhiger, D R, Goorsky, M S Wafer Bonding of (211) Cd^sub 0. 96^Zn^sub 0. 04^Te on (001) Silicon . Journal of Electronic Materials, (2004).

DOI: 10.1007/s11664-004-0045-6
