Investigation on the Machining of Thick Diamond Films by EDM Together with Mechanical Polishing

Abstract:

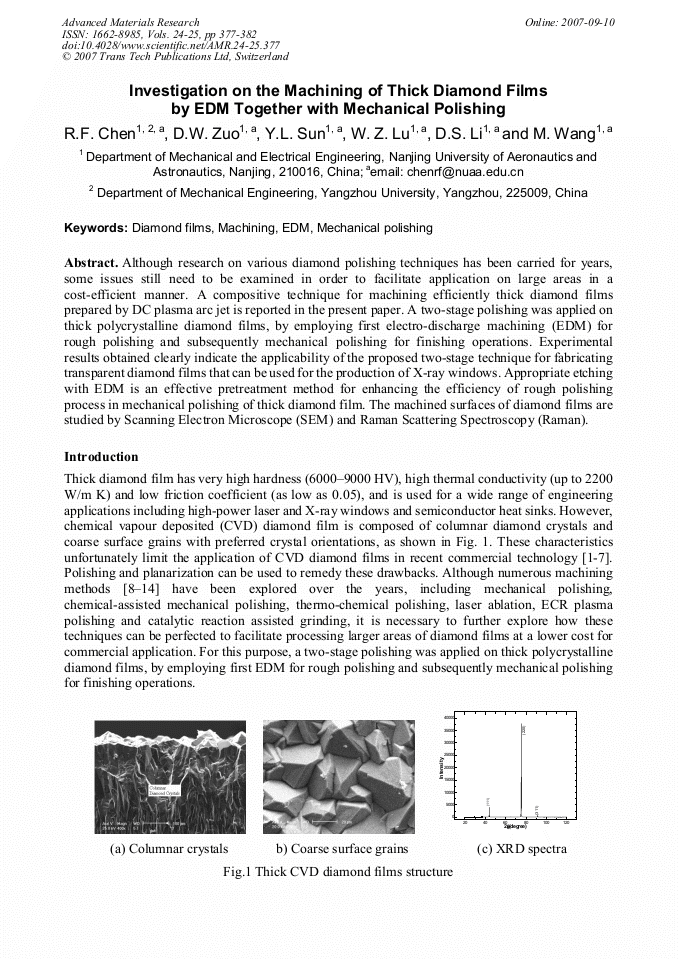

Article Preview

Although research on various diamond polishing techniques has been carried for years, some issues still need to be examined in order to facilitate application on large areas in a cost-efficient manner. A compositive technique for machining efficiently thick diamond films prepared by DC plasma arc jet is reported in the present paper. A two-stage polishing was applied on thick polycrystalline diamond films, by employing first electro-discharge machining (EDM) for rough polishing and subsequently mechanical polishing for finishing operations. Experimental results obtained clearly indicate the applicability of the proposed two-stage technique for fabricating transparent diamond films that can be used for the production of X-ray windows. Appropriate etching with EDM is an effective pretreatment method for enhancing the efficiency of rough polishing process in mechanical polishing of thick diamond film. The machined surfaces of diamond films are studied by Scanning Electron Microscope (SEM) and Raman Scattering Spectroscopy (Raman).

Info:

Periodical:

Advanced Materials Research (Volumes 24-25)

Edited by:

Hang Gao, Zhuji Jin and Yannian Rui

Pages:

377-382

Citation:

R. F. Chen et al., "Investigation on the Machining of Thick Diamond Films by EDM Together with Mechanical Polishing", Advanced Materials Research, Vols. 24-25, pp. 377-382, 2007

Online since:

September 2007

Export:

Price:

$38.00

[1] R.F. Chen, D.W. Zuo, D.S. Li et al. Key Engin. Mater., 315-316(7) (2006) 376-382.

[2] R.S. Sussmann, J.R. Brandon, S.E. Coe, C.S.J. Pickles, C.G. Sweeney, A. Wasenczuk, C.J.H. Wort, C.N. Dodge, CVD diamond: a new engineering material for thermal, dielectric and optical applications, Ind. Diamond Rev. 3 (1998) 69-77.

[3] E. Uhlmann, M. Brücher, Wear behaviour of CVD diamond tools, Ind. Diamond Rev. 1 (2002) 17-23.

[4] C. Lane, M. Finn, A Comparison of PCD and CVD Diamond in Milling MMCs, Duralcan, San Diego, CA, USA, (1991).

[5] C.H. Shen, Machining performance of thin film diamond coated inserts on 390 aluminium, in: Transactions of the North American Manufacturing Research Institution, vol. 22, Society of Mechanical Engineers, 1994, pp.201-208.

[6] R.F. Chen, D.W. Zuo, D.S. Li et al: Key Engin. Mater., Vols. 315-316(2006) No. 7, pp.742-746.

[7] R.F. Chen, D.W. Zuo, D.S. Li et al: Mater. Sci. Forum., Vols. 532-533(2006)No. 10, pp.464-468.

[8] Masanori Yoshikawa, Fuminori Okuzumi, Coat. Technol. 88 (1996) 197.

[9] S.K. Choi, D.Y. Jung, et al., Thin Solid Films 279 (1996) 110.

[10] A.M. Zaitsev, G. Kosaca, et al., Diamond Relat. Mater. 7 (1998) 1108.

[11] V.N. Tokarev, J.I.B. Wilson, et al., Diamond Relat. Mater. 4 (1995) 169.

[12] A. Hirata, H. Tokura, M. Yoshigawa, Thin Solid Films 212 (1992) 43.

[13] C. Vivensang, L. Ferlazzo-Manin, et al., Diamond Relat. Mater. 5 (1996) 840.

[14] H. Buchkremer-Hermanns, C. Long, H. Weiss, Diamond Relat. Mater. 5 (1996) 845.

[15] H. Tokura, M. Yoshikawa, Applications of Diamond Films and Related Materials, Elsevier, Amsterdam, 1991, p.227.

[16] J. -h. Jeong, S. -Y. Lee, et al., Diamond Relat. Mater. 1 (2002) 1597.
