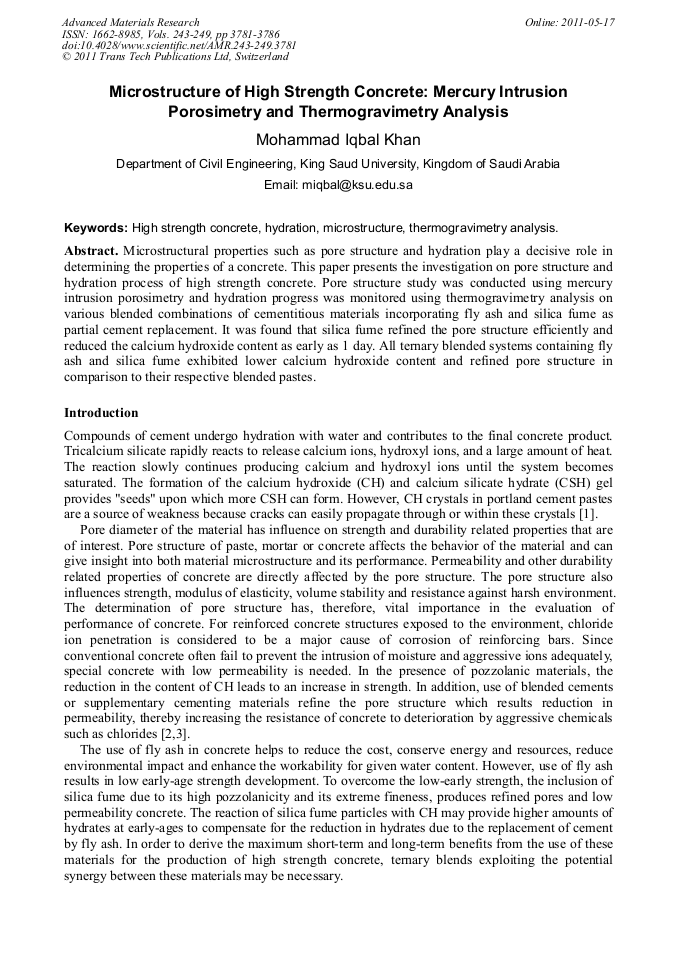

Microstructure of High Strength Concrete Mercury Intrusion Porosimetry and Thermogravimetry Analysis

Abstract:

Microstructural properties such as pore structure and hydration play a decisive role in determining the properties of a concrete. This paper presents the investigation on pore structure and hydration process of high strength concrete. Pore structure study was conducted using mercury intrusion porosimetry and hydration progress was monitored using thermogravimetry analysis on various blended combinations of cementitious materials incorporating fly ash and silica fume as partial cement replacement. It was found that silica fume refined the pore structure efficiently and reduced the calcium hydroxide content as early as 1 day. All ternary blended systems containing fly ash and silica fume exhibited lower calcium hydroxide content and refined pore structure in comparison to their respective blended pastes.

Info:

Periodical:

Advanced Materials Research (Volumes 243-249)

Main Theme:

Advances in Civil Engineering and Architecture

Edited by:

Chaohe Chen, Yong Huang and Guangfan Li

Pages:

3781-3786

DOI:

10.4028/www.scientific.net/AMR.243-249.3781

Citation:

I. K. Mohammad "Microstructure of High Strength Concrete Mercury Intrusion Porosimetry and Thermogravimetry Analysis", Advanced Materials Research, Vols. 243-249, pp. 3781-3786, 2011

Online since:

May 2011

Authors:

Iqbal Khan Mohammad

Keywords:

High-Strength Concrete (HSC), Hydration, Microstructure, Thermogravimetry Analysis

Export:

RIS, BibTeX

Price:

$38.00

Permissions:

Request Permissions

Add to Cart

References

[1] M.D. Cohen, and M. Klitsikas: Indian Concrete Journal, Vol. 60, No. 11, pp.296-300 (1986).

[2] V.M. Malhotra and P.K. Mehta: Pozzolanic and Cementitious Materials–Advances in Concrete Technology, Vol. I, Gordon and Breach, Netherlands (1996).

[3] M.I. Khan: Journal of Materials in Civil Engineering, ASCE, Vol. 15, pp.84-92 (2003).

[4] F.M. Lea: The Chemistry of Cement and Concrete, Edward Arnold, London (1970).

[5] J. Pavlík, V. Tydlitáta, R. ernýa, T. Kle kab, P. Bou kab and P. Rovnaníkovác: Cement and Concrete Research, USA, Vol. 33, No. 1, pp.93-102 (2003).

[6] P. Mounanga, A. Khelidj, A. Loukili and V. Baroghel-Bouny: Cement and Concrete Research, USA, Vol. 34, No. 2, pp.255-265 (2004).

DOI: 10.1016/j.cemconres.2003.07.006

[7] B. El-Jazairi, and J.M. Illston: Cement and Concrete Research, USA, Vol. 10, No. 3, pp.361-366 (1980).

[8] M.I. Khan, and C.J. Lynsdale: Cement and Concrete Research, USA, Vol. 32, No. 1, pp.123-131 (2002).

[9] R.F. Feldman and C. Huang: Cement and Concrete Research, USA, Vol. 15, No. 5, pp.765-774 (1985).

[10] R.D. Hooton: ACI Materials Journal, USA, Vol. 90, No. 2, pp.143-151 (1993).

[11] FIP Report: Condensed Silica Fume in Concrete, FIP state-of-art report, fip Commission of Concrete, Thomas Telford House, UK (1988).

DOI: 10.1016/0958-9465(90)90037-x

[12] Y. Li, B.W. Langan and M.A. Ward: Cement, Concrete and Aggregate, USA, Vol. 18, No. 2, pp.112-117 (1996).

[13] J.A. Larbi, A.L. A Fraay and J.M. Bijen: Cement and Concrete Research, USA, Vol. 20, No. 4, pp.506-516 (1990).

DOI: 10.1016/0008-8846(90)90095-f
