Phase Changes in AISI 436L Ferritic Stainless Steel after Nitrogen Permeation Heat Treatment

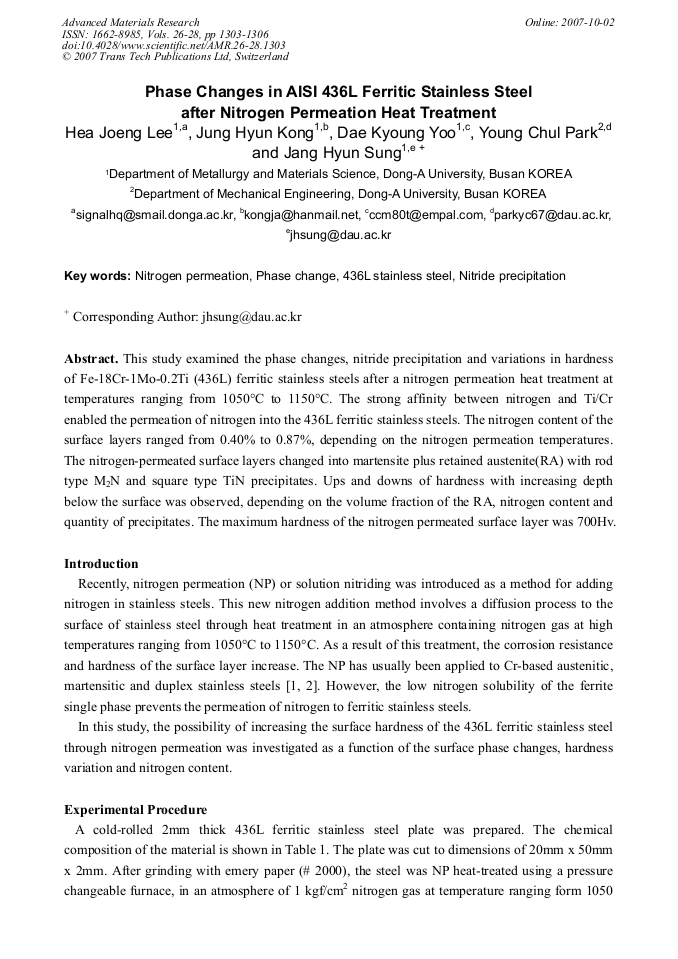

Article Preview

This study examined the phase changes, nitride precipitation and variations in hardness of Fe-18Cr-1Mo-0.2Ti (436L) ferritic stainless steels after a nitrogen permeation heat treatment at temperatures ranging from 1050°C to 1150°C. The strong affinity between nitrogen and Ti/Cr enabled the permeation of nitrogen into the 436L ferritic stainless steels. The nitrogen content of the surface layers ranged from 0.40% to 0.87%, depending on the nitrogen permeation temperatures. The nitrogen-permeated surface layers changed into martensite plus retained austenite(RA) with rod type M2N and square type TiN precipitates. Ups and downs of hardness with increasing depth below the surface was observed, depending on the volume fraction of the RA, nitrogen content and quantity of precipitates. The maximum hardness of the nitrogen permeated surface layer was 700Hv.



Advanced Materials Research (Volumes 26-28)

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




H. J. Lee et al., "Phase Changes in AISI 436L Ferritic Stainless Steel after Nitrogen Permeation Heat Treatment", Advanced Materials Research, Vols. 26-28, pp. 1303-1306, 2007

Online since:

October 2007




[1] H. Berns and S. Siebert, 9th Int. Cong. on Heat Treatment and Surface Engineering NICE, France, September 26-28 (1994) p.175.

[2] H. Berns and S. Siebert, ISIJ International, Vol. 36, (1996) p.927.

[3] V. G. Gavriljuk and H. Berns : High Nitrogen Steel (Springer Verlag, Berlin-New York 1999) p.206, p.210, p.221, p.309.

[4] Jee Hyun Sung, Dong Won Joo, In Soo Kim, Chang Yong Kang, and Jang Hyun Sung, Metals and Materials International, Vol. 11, No. 2 (2005) p.157~163.


[5] D. K. Yoo, H. J. Lee, C. Y. Kang, K. H. Kim, Y. H. Kim, J. H. Sung : Solid State Phenomena, Vol. 118, (2006) p.149~154 Fig. 7 SEM micrographs at 300µm depth below the surface. (a) 1050 oC (b) 1100 oC.
