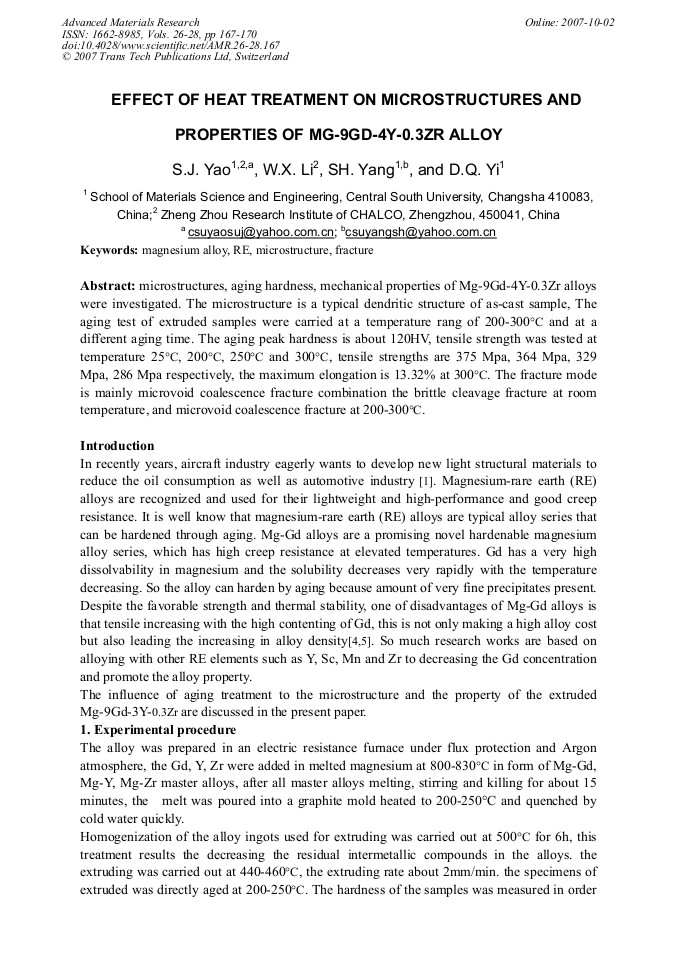

Effect of Heat Treatment on Microstructures and Properties of Mg-9Gd-4Y-0.3Zr Alloy


Article Preview

microstructures, aging hardness, mechanical properties of Mg-9Gd-4Y-0.3Zr alloys were investigated. The microstructure is a typical dendritic structure of as-cast sample, The aging test of extruded samples were carried at a temperature rang of 200-300°C and at a different aging time. The aging peak hardness is about 120HV, tensile strength was tested at temperature 25°C, 200°C, 250°C and 300°C, tensile strengths are 375 Mpa, 364 Mpa, 329 Mpa, 286 Mpa respectively, the maximum elongation is 13.32% at 300°C. The fracture mode is mainly microvoid coalescence fracture combination the brittle cleavage fracture at room temperature, and microvoid coalescence fracture at 200-300°C.



Advanced Materials Research (Volumes 26-28)

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




S. J. Yao et al., "Effect of Heat Treatment on Microstructures and Properties of Mg-9Gd-4Y-0.3Zr Alloy", Advanced Materials Research, Vols. 26-28, pp. 167-170, 2007

Online since:

October 2007




[1] Kentaro Yannada, Yoshiyuki Okubo, Masashi Shiono et al. Materials transactions. Vol. 47 (2006), p.1066.

[2] J. Cízek, I. Prochǎzka, B. Smola. Materials Science forum. Vol. 482(2005), p.183.

[5] Jakub Cizek, Ivan Prochazka, Bohumil Amola, Ivana Stulikova. Phys. Stat. Vol. 203(2006), p.466.

[5] Bohumil smola, Ivana Stulífová, Jitka Pelcová, et al. Z. Metallkd. Vol. 94(2003), p.553.

[6] J.F. Nie, B.C. Muddle. scripta materialia. Vol. 40. 10 (1999), p.1089.

[7] Ifeanyi Anthony Anyanwu, Shigeharu Kamado and Yo Kojima. Materials Transactions. Vol. 42 (2001).
