Electromechanical Properties of NKN-5LT Multilayer Actuator

Abstract:

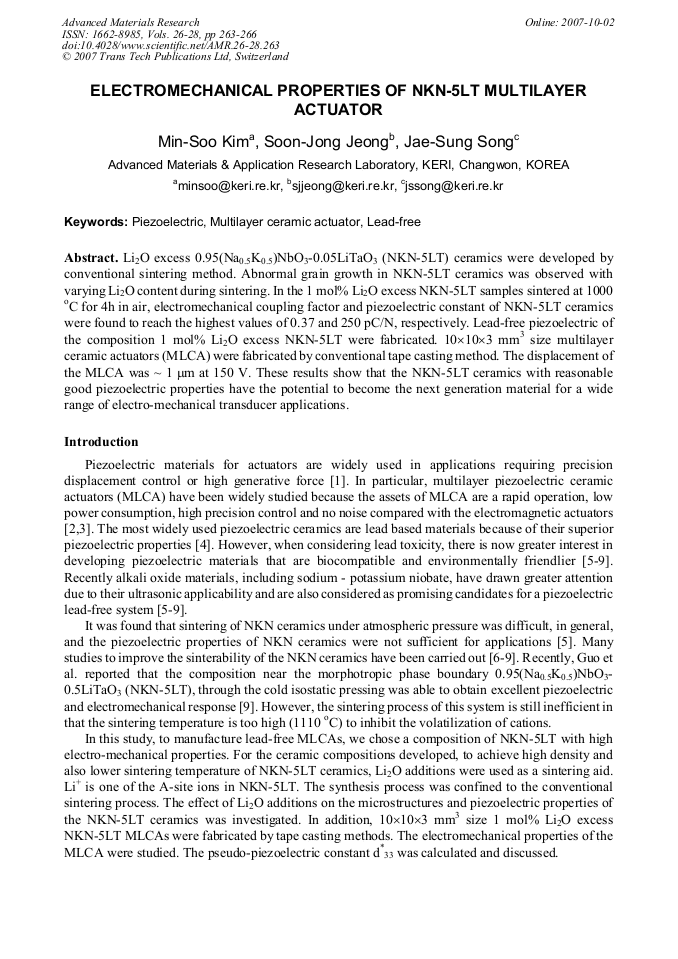

Article Preview

Li2O excess 0.95(Na0.5K0.5)NbO3-0.05LiTaO3 (NKN-5LT) ceramics were developed by conventional sintering method. Abnormal grain growth in NKN-5LT ceramics was observed with varying Li2O content during sintering. In the 1 mol% Li2O excess NKN-5LT samples sintered at 1000 oC for 4h in air, electromechanical coupling factor and piezoelectric constant of NKN-5LT ceramics were found to reach the highest values of 0.37 and 250 pC/N, respectively. Lead-free piezoelectric of the composition 1 mol% Li2O excess NKN-5LT were fabricated. 10×10×3 mm3 size multilayer ceramic actuators (MLCA) were fabricated by conventional tape casting method. The displacement of the MLCA was ~ 1 μm at 150 V. These results show that the NKN-5LT ceramics with reasonable good piezoelectric properties have the potential to become the next generation material for a wide range of electro-mechanical transducer applications.

Info:

Periodical:

Advanced Materials Research (Volumes 26-28)

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee

Pages:

263-266

Citation:

M. S. Kim et al., "Electromechanical Properties of NKN-5LT Multilayer Actuator", Advanced Materials Research, Vols. 26-28, pp. 263-266, 2007

Online since:

October 2007

Export:

Price:

$38.00

[1] K. Uchino, in: Actuator2006, edited by H. Borgmann, HVG, Bremen (2006), p.48.

[2] S. Takahashi: Jpn. J. Appl. Phys. Vol. 24 (1085), p.41.

[3] M. Suga, M. Tsuzuki: Jpn. J. Appl. Phys. Vol. 23 (1984), p.765.

[4] B. Jaffe, R. S. Roth and S. Marzullo: J. Appl. Phys. Vol. 25 (1954), p.809.

[5] R. E. Jaeger and L. Egerton: J. Am. Ceram. Soc. Vol. 45 (1962), p.209.

[6] Y. Saito, et. al.: Nature(London), Vol. 432 (2004), p.84.

[7] E. Hollenstein et al.: Appl. Phys. Lett. Vol. 87 (2005), p.182905.

[8] H. -Y. Park, et al.: Appl. Phys. Lett. Vol. 89 (2006), p.062906.

[9] Y. Guo, K. Kakimoto and H. Ohsato: Mater. Lett. Vol. 59 (2005), p.241.

[10] S. -Y. Chung and S. -J. L. Kang: J. Am. Ceram. Soc. Vol. 83 (2000), p.2828.

[11] J. G. Fisher, et al.: J. Am. Ceram. Soc. Vol. 87 (2004), p.937.

[12] B. K. Lee, S. Y. Chung and S. -J. L. Kang: Acta Mater. Vol. 48 (2000), p.1575.

[13] C. W. Park and D. Y. Yoon: J. Am. Ceram. Soc. Vol. 85 (2002), p.1585.

[14] Y. -I. Jung, S. -Y. Choi and S. -J. L. Kang: J. Am. Ceram. Soc. Vol. 86 (2003), p.2228.

[15] S. -Y. Choi and S. -J. L. Kang: Acta Mater. Vol. 52 (2004), p.2937.
