Temperature Dependent Microstructure and Mechanical Behavior in AZ31 Alloy Processed by an Asymmetric Rolling


Article Preview

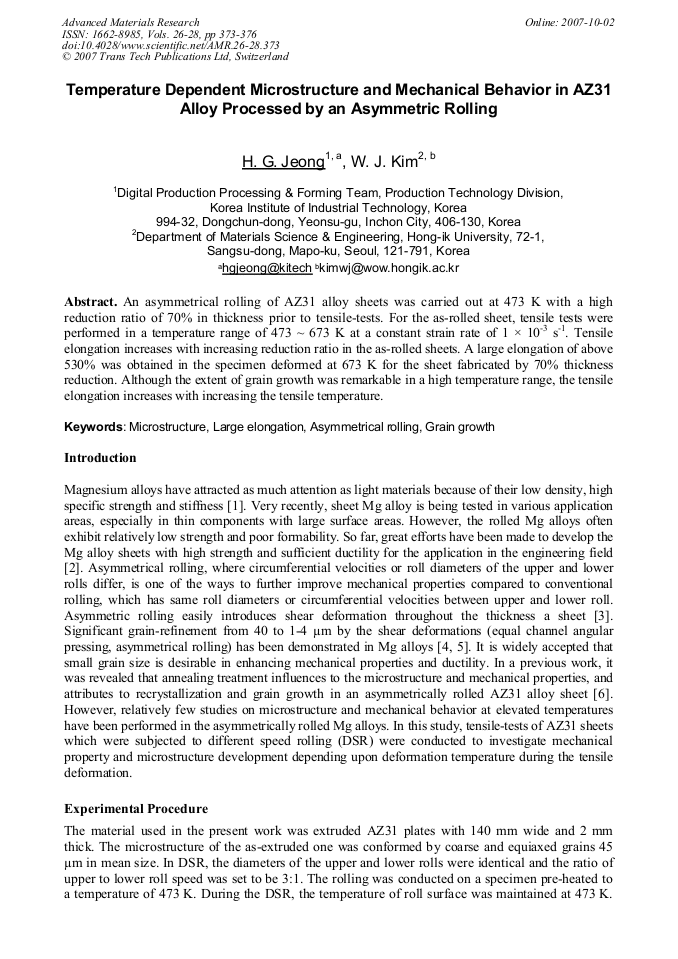

An asymmetrical rolling of AZ31 alloy sheets was carried out at 473 K with a high reduction ratio of 70% in thickness prior to tensile-tests. For the as-rolled sheet, tensile tests were performed in a temperature range of 473 ~ 673 K at a constant strain rate of 1 × 10-3 s-1. Tensile elongation increases with increasing reduction ratio in the as-rolled sheets. A large elongation of above 530% was obtained in the specimen deformed at 673 K for the sheet fabricated by 70% thickness reduction. Although the extent of grain growth was remarkable in a high temperature range, the tensile elongation increases with increasing the tensile temperature.



Advanced Materials Research (Volumes 26-28)

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




H. G. Jeong and W. J. Kim, "Temperature Dependent Microstructure and Mechanical Behavior in AZ31 Alloy Processed by an Asymmetric Rolling", Advanced Materials Research, Vols. 26-28, pp. 373-376, 2007

Online since:

October 2007




[1] K.U. Kainer: Magnesium Alloys and their Applications (John Wiley & Sons, New York, 2000).

[2] H. Watanabe, T. Mukai, K. Ishikawa: J. Mater. Sci. 39 (2004), p.1477.

[3] K.H. Kim, D.N. Lee, Acta Mater. 49 (2001), p.2583.

[4] R.S. Mishra, S.L. Semiatin, C. Suryanrayana, N.N. Thadhani, T.C. Lowe, editors. Ultra-fine grained Materials. Warrendale (PA): TMS; (2000), p.173.

[5] H.G. Jeong, Y.G. Jeong, D.J. S. Choi, W.J. Kim: Solid State Phenomena, 116-117 (2006), p.235.

[6] Y.G. Jeong, W.J. Kim, S. Choi, H.G. Jeong: to be published in Mater. Sci. Forum, Vol. 558-559 in October (2007).

[7] W.J. Kim, J.B. Lee, W.Y. Kim, H.T. Jeong, H.G. Jeong: Scripta Mater. 56 (2007), p.309.

[8] M. Mabuchi, K. Ameyama, H. Iwasaki, K. Higashi: Acta Mater. 47 (1999), p. (2047).

Fetching data from Crossref.
This may take some time to load.
