Alignment of Primary Phase of a Binary Alloy during Solidification

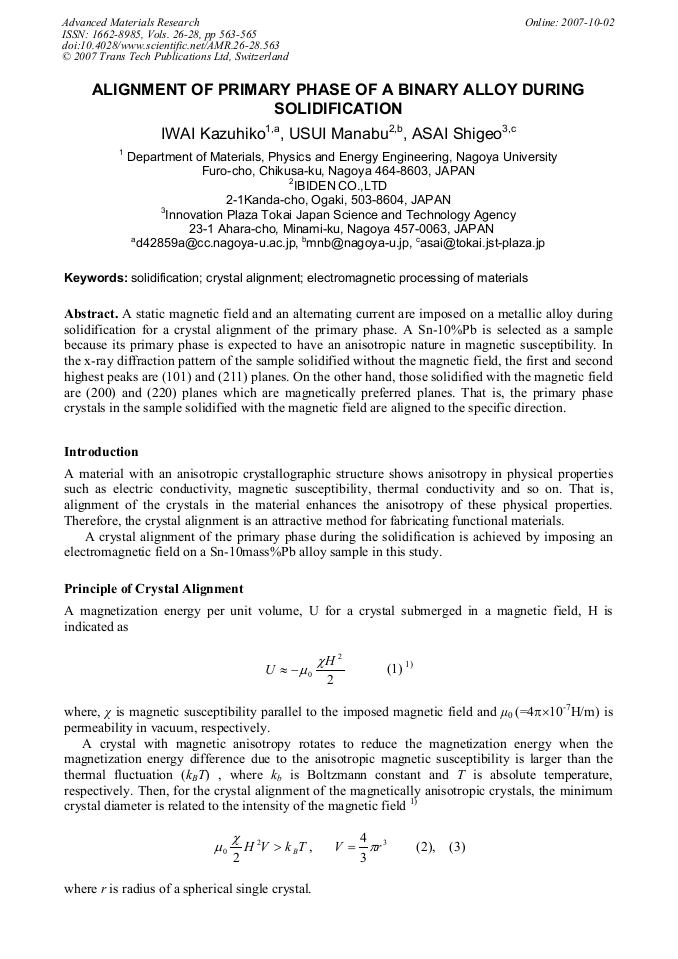

Article Preview

A static magnetic field and an alternating current are imposed on a metallic alloy during solidification for a crystal alignment of the primary phase. A Sn-10%Pb is selected as a sample because its primary phase is expected to have an anisotropic nature in magnetic susceptibility. In the x-ray diffraction pattern of the sample solidified without the magnetic field, the first and second highest peaks are (101) and (211) planes. On the other hand, those solidified with the magnetic field are (200) and (220) planes which are magnetically preferred planes. That is, the primary phase crystals in the sample solidified with the magnetic field are aligned to the specific direction.



Advanced Materials Research (Volumes 26-28)

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




K. Iwai et al., "Alignment of Primary Phase of a Binary Alloy during Solidification", Advanced Materials Research, Vols. 26-28, pp. 563-565, 2007

Online since:

October 2007




[1] S. Asai: Introduction of electroamgnetic processing of materials, UCHIDA ROKAKUHO PUBLISHING, Tokyo, (2000), p.89.
