Fabrication of Ta-Al-N Thin Films and its Cu Diffusion on Barrier Properties

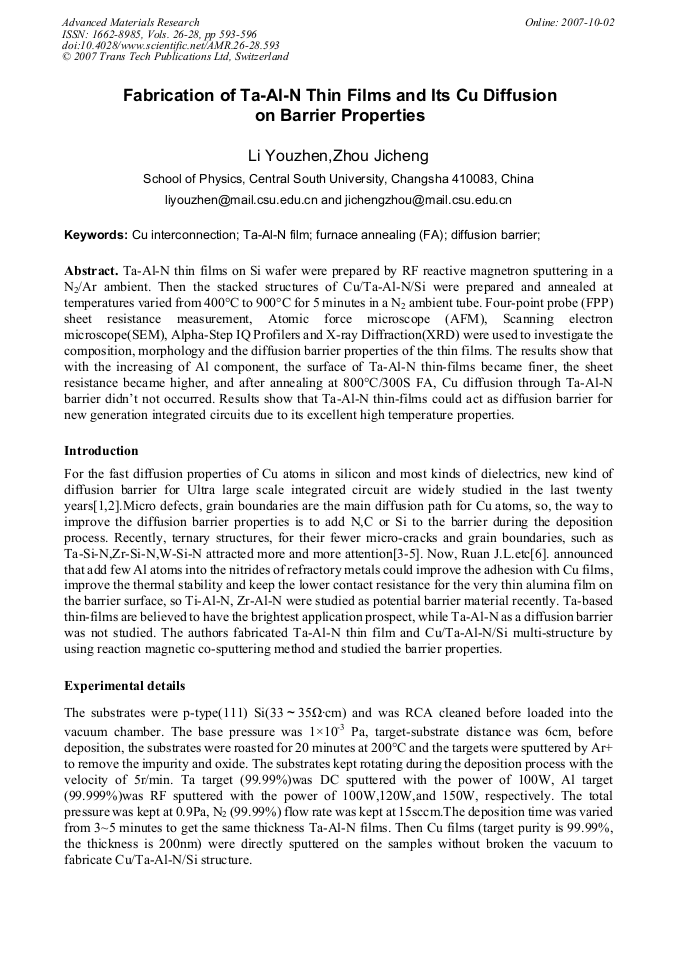

Article Preview

Ta-Al-N thin films on Si wafer were prepared by RF reactive magnetron sputtering in a N2/Ar ambient. Then the stacked structures of Cu/Ta-Al-N/Si were prepared and annealed at temperatures varied from 400°C to 900°C for 5 minutes in a N2 ambient tube. Four-point probe (FPP) sheet resistance measurement, Atomic force microscope (AFM), Scanning electron microscope(SEM), Alpha-Step IQ Profilers and X-ray Diffraction(XRD) were used to investigate the composition, morphology and the diffusion barrier properties of the thin films. The results show that with the increasing of Al component, the surface of Ta-Al-N thin-films became finer, the sheet resistance became higher, and after annealing at 800°C/300S FA, Cu diffusion through Ta-Al-N barrier didn’t not occurred. Results show that Ta-Al-N thin-films could act as diffusion barrier for new generation integrated circuits due to its excellent high temperature properties.



Advanced Materials Research (Volumes 26-28)

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




Y. Z. Li and J. C. Zhou, "Fabrication of Ta-Al-N Thin Films and its Cu Diffusion on Barrier Properties", Advanced Materials Research, Vols. 26-28, pp. 593-596, 2007

Online since:

October 2007




[1] Wang Yangyuan, Huang Ru, Liu Xiaoyan: Physics, 2004, 33(6) 407-413(in Chinese).

[2] Wang Yangyuan, Kang Jinfeng: Chinese Journal of Semiconductors, 2002, 23(11): 1121-1134. (in chinese).

[3] Hecker M, Fischer D, Hoffmann V: Thin Solid Films. 2002, 414(2): 184-191.

[4] Mukesh Kumar, Rajkumar,Dinesh Kumar: Microelectronic Engineering, 2005, 82 (1-2): 53-59.

[5] Song Z X, Xu K W, Chen H. The Effect of nitrogen partial pressure on Zr-Si-N diffusion barrier. Microelectronic Engineering, 2004, 71(1): 28-33.

DOI: 10.1016/j.mee.2003.08.006

[6] Ruan J L, Huang J L, Chen J S: Surface & Coatings Technology,2005,200(5-6):1652-1658.

[7] Yin K M, Li C, Chen F R: Materials Chemistry and Physics, 2001, 71(1): 1-6.

[8] Kuo Y L, Huang J J, Lin S T: Materials Chemistry and Physics,2003,80(3):690-695 a Cu3Si c Fig. 4 SEM images of Cu/Ta-Al(120W)-N/Si surface (a)as-deposited (b)800℃/300s FA (c)900℃/300s FA b.
