FIB and TEM Studies on the Bainitic Microstructure in Low Carbon HSLA Steels

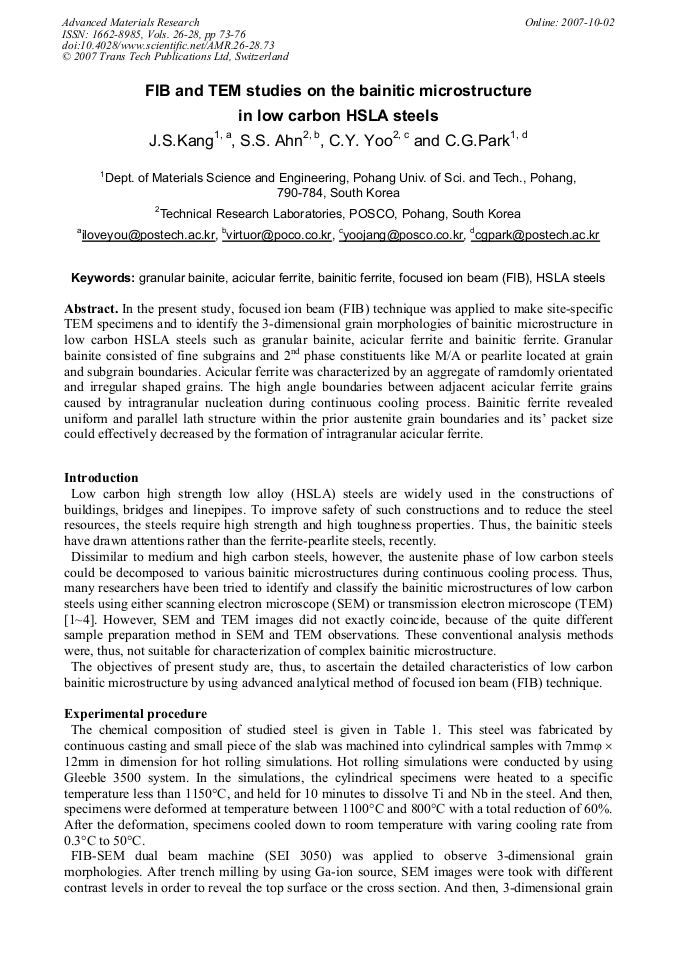

Article Preview

In the present study, focused ion beam (FIB) technique was applied to make site-specific TEM specimens and to identify the 3-dimensional grain morphologies of bainitic microstructure in low carbon HSLA steels such as granular bainite, acicular ferrite and bainitic ferrite. Granular bainite consisted of fine subgrains and 2nd phase constituents like M/A or pearlite located at grain and subgrain boundaries. Acicular ferrite was characterized by an aggregate of ramdomly orientated and irregular shaped grains. The high angle boundaries between adjacent acicular ferrite grains caused by intragranular nucleation during continuous cooling process. Bainitic ferrite revealed uniform and parallel lath structure within the prior austenite grain boundaries and its’ packet size could effectively decreased by the formation of intragranular acicular ferrite.



Advanced Materials Research (Volumes 26-28)

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




J.S. Kang et al., "FIB and TEM Studies on the Bainitic Microstructure in Low Carbon HSLA Steels", Advanced Materials Research, Vols. 26-28, pp. 73-76, 2007

Online since:

October 2007




[1] B. L. Bramfitt and J. G. Speer, Metall. Trans., Vol. 21A, April 1990, p.817.

[2] H. Ohtani et al., Metall. Trans., Vol. 21A, April 1990, p.877.

[3] G. Krauss and S. W. Thompson, ISIJ international, Vol 35 (1995), No. 8, pp.937-945.

[4] L. C. Chang, Mater. Sci. and Eng., A368 (2004), pp.175-182.

[5] H. J. Jun, J. S. Kang et al., Mater. Sci. And Eng., A422 (2006) p.157.

[6] J. S. Kang, H. J. Jun et al., The 5th International Offshore and Polar Engineering Conference, June 19-24, 2005, Seoul, Korea.

[7] Y. Ohmori, Microstructural Evolutions with Precipitation of Carbides in Steels, ISIJ international, Vol. 41, No. 6, (2001) 554-565S.
