Nb-NbN Cermet Film as Solar Selective Coating

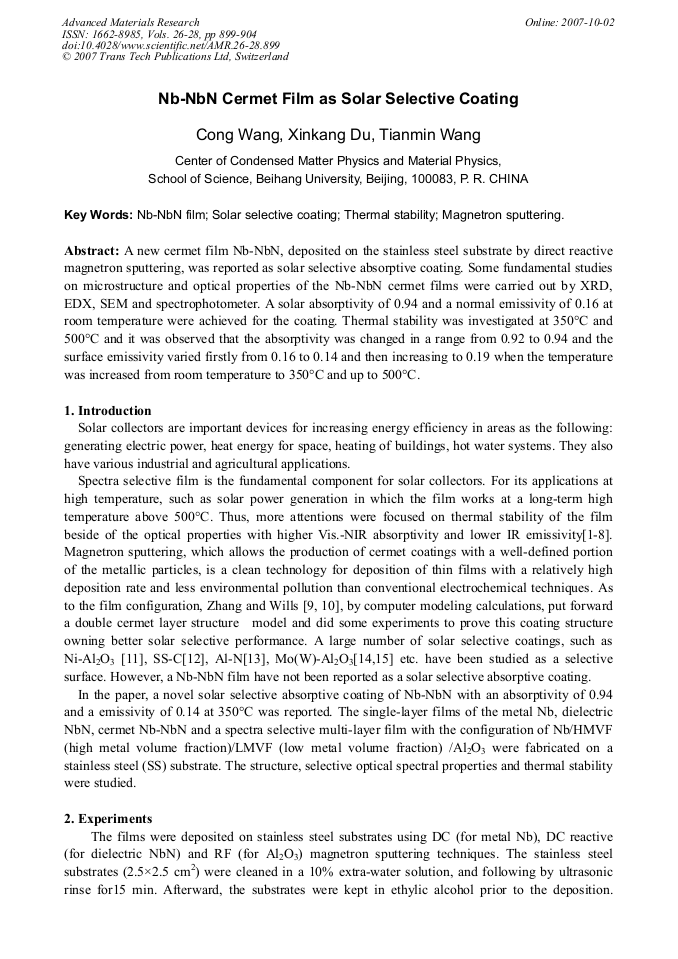

Article Preview

Abstract:

A new cermet film Nb-NbN, deposited on the stainless steel substrate by direct reactive magnetron sputtering, was reported as solar selective absorptive coating. Some fundamental studies on microstructure and optical properties of the Nb-NbN cermet films were carried out by XRD, EDX, SEM and spectrophotometer. A solar absorptivity of 0.94 and a normal emissivity of 0.16 at room temperature were achieved for the coating. Thermal stability was investigated at 350°C and 500°C and it was observed that the absorptivity was changed in a range from 0.92 to 0.94 and the surface emissivity varied firstly from 0.16 to 0.14 and then increasing to 0.19 when the temperature was increased from room temperature to 350°C and up to 500°C.

You might also be interested in these eBooks
Advanced Materials and Processing View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 26-28)

Pages:

899-904

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.26-28.899

Citation:

Cite this paper

Online since:

October 2007

Authors:

Cong Wang, Xin Kang Du, Tian Min Wang

Keywords:

Magnetron Sputtering, Nb-NbN Film, Solar Selective Coating, Thermal Stability

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2007 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] I.T. Ritchie, B. Window, Appl. Opt. 16 (1977) 1438.

Google Scholar

[2] Z. Yin, G.L. Harding, Thin Solid Films 120 (1984) 81.

Google Scholar

[3] M. Lanxner, Z. Elgat, Proc. SPIE 1272(1990)240.

Google Scholar

[4] Qi-Chu Zhang, Yongbai Yin, Dzvid R. Mills. Solar Energy Materials and Solar Cells 40 (1996) 43.

Google Scholar

[5] Q. -C. Zhang, J. Vac. Sci. Technol. A 15(1997)2842.

Google Scholar

[6] Q. -C. Zhang, J. Phys. D 31(1998)355.

Google Scholar

[7] Q. -C. Zhang, Sol. Energy Mater. Sol. Cells. 52(1998)96.

Google Scholar

[8] Qi-Chu Zhang, Y.G. Shen. Solar Energy Materials & Solar Cells. 81(2004)25.

Google Scholar

[9] M.A. Lind, R.B. Pettit, K.D. Masterson, J. Sol. Energy Eng. Trans. ASME 102 (1980) 34.

Google Scholar

[10] Q. -C. Zhang, D.R. Mills, A. Monger, The University of Sydney, Australia Patent No. 646172, (1994).

Google Scholar

[11] R. Karmhag, T. Tesfamichael, E. Wackelgard, Solar Energy 68 (2000) 329.

Google Scholar

[12] I.T. Ritchie, B. Window, Appl. Opt. 16 (1977) 1438.

Google Scholar

[13] Z. Yin, G. L. Harding, Thin Solid Films 120 (1984) 81.

Google Scholar

[14] M. Lanxner, Z. Elgat, Proc. SPIE 1272(1990)240.

Google Scholar

[15] Q. C. Zhang, J. Phys. D 31(1998)355.

Google Scholar

[16] J. H. Schon, E. Bucher, Sol. Energy Mater. Sol. Cells. 43 (1996)59.

Google Scholar
