Study of Thermal Properties of Curing of DGEBA Epoxy Resin with Hexakis-(4-Aminophenoxy)-Cyclotriphosphazene

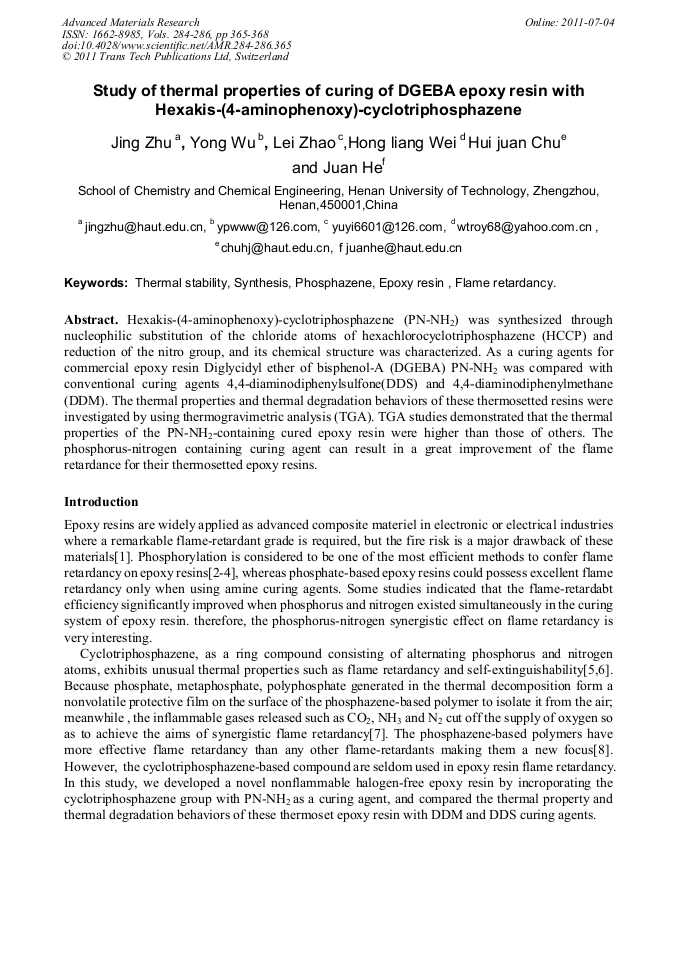

Article Preview

Hexakis-(4-aminophenoxy)-cyclotriphosphazene (PN-NH2) was synthesized through nucleophilic substitution of the chloride atoms of hexachlorocyclotriphosphazene (HCCP) and reduction of the nitro group, and its chemical structure was characterized. As a curing agents for commercial epoxy resin Diglycidyl ether of bisphenol-A (DGEBA) PN-NH2 was compared with conventional curing agents 4,4-diaminodiphenylsulfone(DDS) and 4,4-diaminodiphenylmethane (DDM). The thermal properties and thermal degradation behaviors of these thermosetted resins were investigated by using thermogravimetric analysis (TGA). TGA studies demonstrated that the thermal properties of the PN-NH2-containing cured epoxy resin were higher than those of others. The phosphorus-nitrogen containing curing agent can result in a great improvement of the flame retardance for their thermosetted epoxy resins.



Advanced Materials Research (Volumes 284-286)

Main Theme:

Edited by:

Xiaoming Sang, Pengcheng Wang, Liqun Ai, Yungang Li and Jinglong Bu




J. Zhu et al., "Study of Thermal Properties of Curing of DGEBA Epoxy Resin with Hexakis-(4-Aminophenoxy)-Cyclotriphosphazene", Advanced Materials Research, Vols. 284-286, pp. 365-368, 2011

Online since:

July 2011




[1] A. Hauk, M. Sklorz, G. Bergmann, O. Hutzinger. J Anal Appl Pyrolysis. Vol. 31(2) (1995), p.141.

[2] W. X. Zhang. Eur Polym J. Vol. 40 (2004), p.385.

[3] H. Ren, J.Z. Sun, B.J. Wu, Q.Y. Polym Degrad Stab. Vol. 92 (2007), p.956.

[4] A. Toldy, N. Toth, P. Anna, G. Marosi. Polym Degrad Stab. Vol. 91 (2006), p.585.

[5] S. S. Krishnamurthy, A.C. Sau, M. Woods, editors. Advances in inorganic chemistry and radiochemistry (Academic Press, New York 1978).

[6] C.W. Allen. Chem Rev. Vol. 91(1991), p.119.

[7] G. F. Levchik, Y.V. Grigoriev, A.I. Balabanovich, S.V. Levchik. Polym Int. Vol . 49 (2000), p.1095.

[8] S. Chen, Q.K. Zheng, G.D. Ye, G.K. J Appl Polym Sci. Vol. 102(2006), p.698.

[9] Y. Wu, J. Zhu, L. Zhao, Y. Liu. Chemical Research. Vol. 22 (2011), p.31(In Chinese).

[10] R. Liu, X.D. Wang. P.G. Polym Degrad Stab. Vol. 94 (2009), p.617.

[11] S. W. Zhu, W. F. Shi. Polym Degrad Stab. Vol. 2 (2003), p.217.
