3D Dynamic Analysis of a 270m Concrete Faced Rockfill Dam

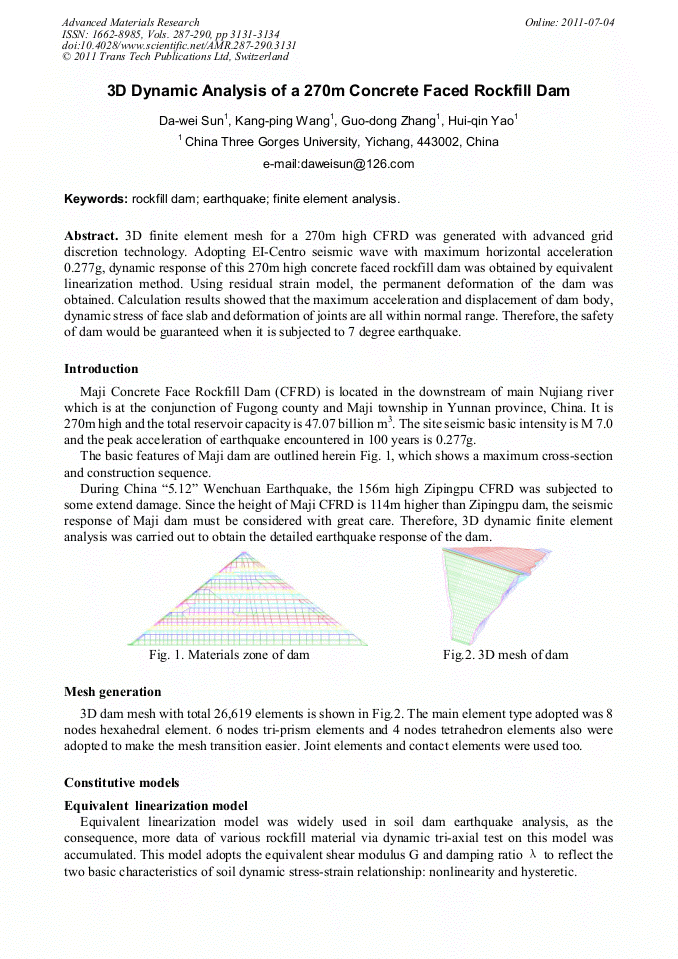

Article Preview

3D finite element mesh for a 270m high CFRD was generated with advanced grid discretion technology. Adopting EI-Centro seismic wave with maximum horizontal acceleration 0.277g, dynamic response of this 270m high concrete faced rockfill dam was obtained by equivalent linearization method. Using residual strain model, the permanent deformation of the dam was obtained. Calculation results showed that the maximum acceleration and displacement of dam body, dynamic stress of face slab and deformation of joints are all within normal range. Therefore, the safety of dam would be guaranteed when it is subjected to 7 degree earthquake.



Advanced Materials Research (Volumes 287-290)

Edited by:

Jinglong Bu, Pengcheng Wang, Liqun Ai, Xiaoming Sang, Yungang Li




D. W. Sun et al., "3D Dynamic Analysis of a 270m Concrete Faced Rockfill Dam", Advanced Materials Research, Vols. 287-290, pp. 3131-3134, 2011

Online since:

July 2011




[1] Guo X.W., Wang D.X., Yan L.Q. (2001), Analysis of Earthquake Induced Permanent Deformation for High Concrete Face Rockfill Dams,. Journal of Hohai University, Vol. 29(11), 57-60.

[2] Chi S.C., Lin G., Kong X.J. (1998), Influence of Residual Volumetric Strain of Rockfill Material on Calculated Permanent Deformation of Concrete Faced Rockfill Dams,. Chinese Journal of hydroelectric Engineering, Vol. 60, 59-66.

[3] Li N.H., Li G.Y., Zhao K.Z. (2004), Static and Dynamic Stress-deformation Behavior of High Concrete Rockfill Dams in Strong Ground Motion Zone,. Chinese Journal of Geotechnical Engineering, Vol. 26(2), 183-184.

[4] Zhao J.M., Chang Y.P., Chen N. (2004), Study on Earthquake-induced Permanent Deformation and Dynamic Stability of High Concrete-faced Rockfill Dam,. Chinese Journal of Rock Mechanics and Engineering, Vol. 23(s1), 4547-4552.

[5] Wang L. L, He Y. L, Fei W.P. (2004), Analysis of Earthquake Induced Liquefaction and Permanent Deformation of Shuiniujia Central Core Rock-fill Dam,. Rock and Soil Mechanics, Vol. 25(1), 165-168.
