Surface Characterization of an Extruded 6060 Al Alloy

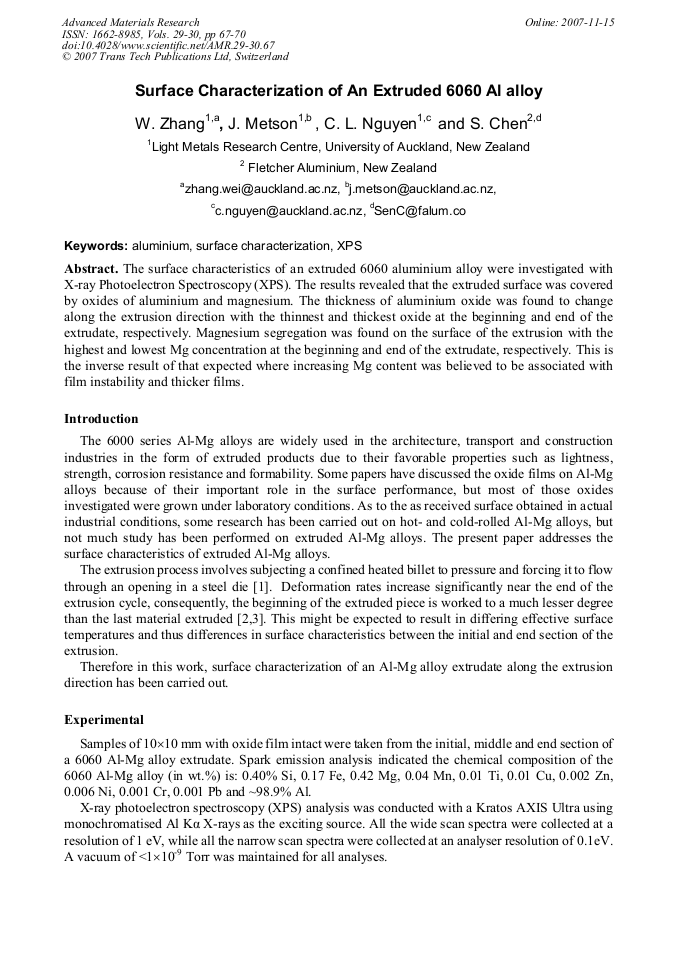

Article Preview

The surface characteristics of an extruded 6060 aluminium alloy were investigated with X-ray Photoelectron Spectroscopy (XPS). The results revealed that the extruded surface was covered by oxides of aluminium and magnesium. The thickness of aluminium oxide was found to change along the extrusion direction with the thinnest and thickest oxide at the beginning and end of the extrudate, respectively. Magnesium segregation was found on the surface of the extrusion with the highest and lowest Mg concentration at the beginning and end of the extrudate, respectively. This is the inverse result of that expected where increasing Mg content was believed to be associated with film instability and thicker films.



Advanced Materials Research (Volumes 29-30)

Edited by:

Deliang Zhang, Kim Pickering, Brian Gabbitas, Peng Cao, Alan Langdon, Rob Torrens and Johan Verbeek




W. Zhang et al., "Surface Characterization of an Extruded 6060 Al Alloy", Advanced Materials Research, Vols. 29-30, pp. 67-70, 2007

Online since:

November 2007




[1] Everhart, J. Impact and Cold Extrusion of Metals, (Chemical Publishing Company, Inc., New York. 1964).

[2] Rauwendaal, C. Understanding Extrusion, (Hanser, Munich. 1998).

[3] Johnson, W., The Mechanics of Metal Extrusion, (Butler & Tanner Ltd, London. 1962).

[4] C.D. Wagner, J.F. Moulder, L.E. Davis, W.M. Riggs, Handbook of X-ray photoelectron spectroscopy, (Perking-Elmer Corporation, Physical Electronics Division, 1979).

[5] Brian R. Strohmeier, An ESCA Method for Determining the Oxide Thickness on Aluminium Alloys, Surface & Interface Analysis, Vol. 15 (1990), p.51.


[6] G. Buytaert, H. Terryn, S. Van Gils et al, Study of the near-surface of hot- and cold-rolled AlMg0. 5 aluminium alloy, Surface and Interface Analysis, Vol. 37 (2005), p.534.


[7] C. Lea and J. Ball, Applications of Surface Science; Vol. 17 (1984), p.344.

[8] C. Lea and C. Molinari, Journal of Materials Science; Vol. 19 (1984), p.2336.

[9] S.O. Saied and J. L. Sullivan, J. Phys.: Condens. Matter Vol. 5 (1993), p. A165.

[10] S. Scotto-Sheriff, E. Darque-Ceretti, G Plassart, M Aucouturier. J. Mater Sci. Vol. 34 (1999), p.5081.


[11] T.S. Sun, J.M. Chen and R.K. Viswanadham and J.A.S. Green, J. Vacuum Sci. Technolo. Vol. 16 (1979), p.668.

[12] Bernard Goldstein and Joseph Dresner, Growth of MgO Films with High Secondary Electron Emission on Al-Mg Alloys, Surface Science, Vol. 71 (1978), p.15.
