Sonoelectroplating of Sn - Bi Solder Film from EDTA Bath

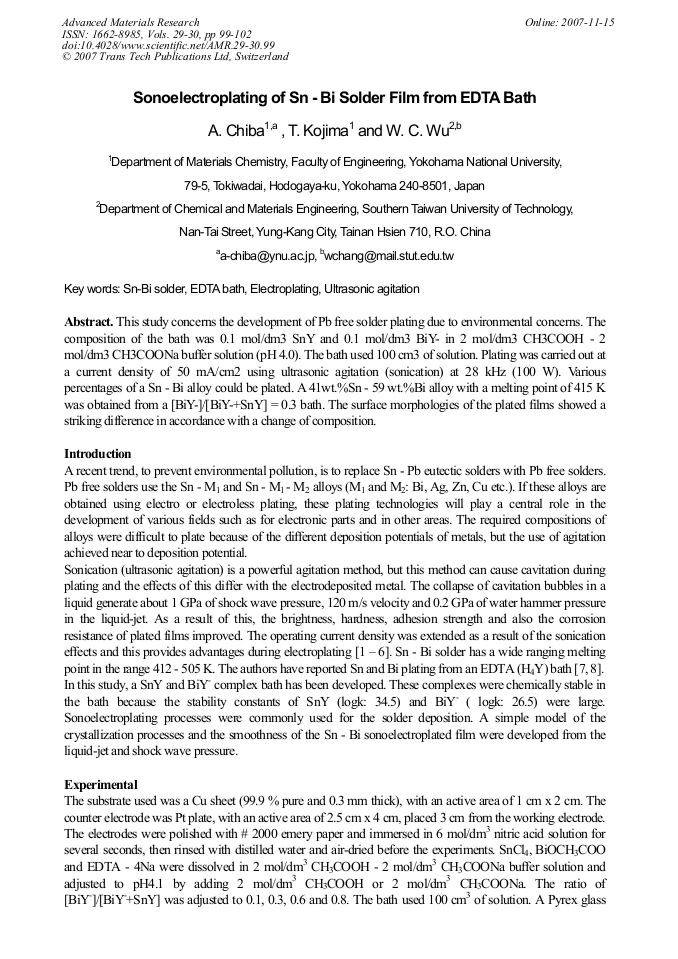

Article Preview

This study concerns the development of Pb free solder plating due to environmental concerns. The composition of the bath was 0.1 mol/dm3 SnY and 0.1 mol/dm3 BiY- in 2 mol/dm3 CH3COOH - 2 mol/dm3 CH3COONa buffer solution (pH 4.0). The bath used 100 cm3 of solution. Plating was carried out at a current density of 50 mA/cm2 using ultrasonic agitation (sonication) at 28 kHz (100 W). Various percentages of a Sn - Bi alloy could be plated. A 41wt.%Sn - 59 wt.%Bi alloy with a melting point of 415 K was obtained from a [BiY-]/[BiY-+SnY] = 0.3 bath. The surface morphologies of the plated films showed a striking difference in accordance with a change of composition.



Advanced Materials Research (Volumes 29-30)

Edited by:

Deliang Zhang, Kim Pickering, Brian Gabbitas, Peng Cao, Alan Langdon, Rob Torrens and Johan Verbeek




A. Chiba et al., "Sonoelectroplating of Sn - Bi Solder Film from EDTA Bath", Advanced Materials Research, Vols. 29-30, pp. 99-102, 2007

Online since:

November 2007




[1] A. Chiba and W.C. Wu, Plat. & Sur. Finish., 79 (1992) , p.65.

[2] A. Chiba, Electrochemistry, 67 (1999), p.960.

[3] K. Kobayashi, A. Chiba and N. Minami, Ultrasonics, 38 (2000), p.676.

[4] M.E. Hyde and P.G. Compton, J. Electroanal. Chem., 531 (2000), p.19.

[5] A. Chiba, H. Haijima, and K. Kobayashi: Surf. Coat. and Technol., 169-170 (2003), p.104.

[6] A. Chiba, H. Haijima, Y. Sasaki and W. C. Wu, Materials Forum, 29 (2005) , p.252.

[7] A. Chiba, T. Kojima and K. Kobayashi, Abstract of WCU/UI'05 (2005), p.142.

[8] A. Chiba and T. Kojima, e-J. Surf. Sci. Nanotec., 4, (2006), p.1.
