Study on Hydrothermal Synthesis of Flower-Sphere MoS2

Abstract:

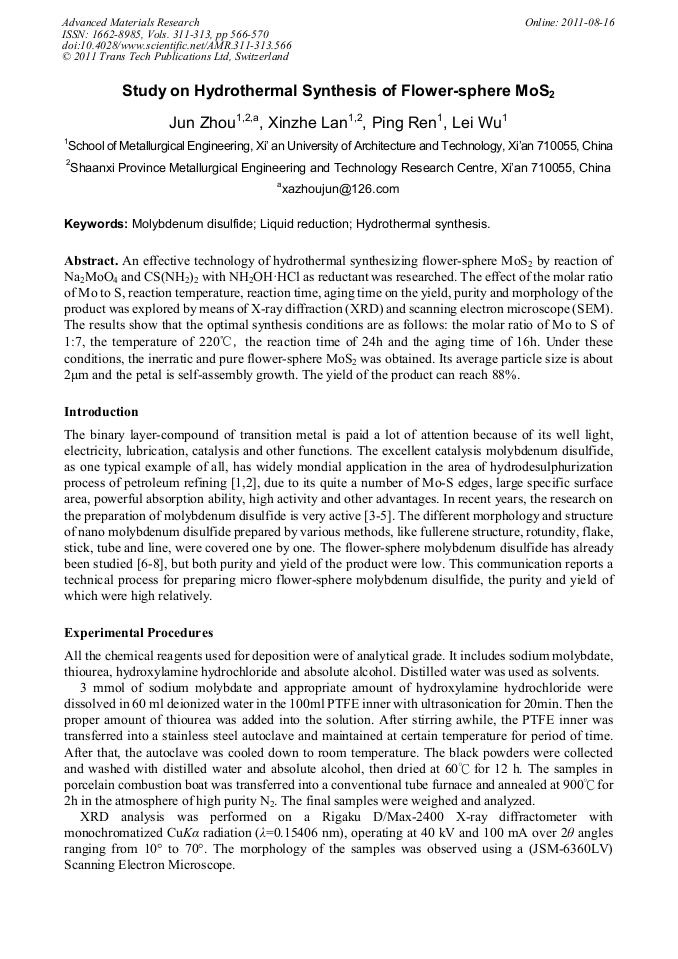

Article Preview

An effective technology of hydrothermal synthesizing flower-sphere MoS2 by reaction of Na2MoO4 and CS(NH2)2 with NH2OH•HCl as reductant was researched. The effect of the molar ratio of Mo to S, reaction temperature, reaction time, aging time on the yield, purity and morphology of the product was explored by means of X-ray diffraction (XRD) and scanning electron microscope (SEM). The results show that the optimal synthesis conditions are as follows: the molar ratio of Mo to S of 1:7, the temperature of 220°C, the reaction time of 24h and the aging time of 16h. Under these conditions, the inerratic and pure flower-sphere MoS2 was obtained. Its average particle size is about 2μm and the petal is self-assembly growth. The yield of the product can reach 88%.

Info:

Periodical:

Advanced Materials Research (Volumes 311-313)

Edited by:

Zhongning Guo

Pages:

566-570

DOI:

10.4028/www.scientific.net/AMR.311-313.566

Citation:

J. Zhou et al., "Study on Hydrothermal Synthesis of Flower-Sphere MoS2", Advanced Materials Research, Vols. 311-313, pp. 566-570, 2011

Online since:

August 2011

Export:

Price:

$35.00

[1] Alonso G, Berhault G, Aguilar A, et al.: J. of Catal. Vol. 208, No. 2 (2002), p.359.

[2] Iwata Y, Araki Y, Honna K, et al.: Catal. Today Vol. 65, No. 2 (2001), p.355.

[3] Xue Shoufeng, Lan Xinzhe, Zhou Jun, et al.: Ordnance Mater. Sci. and Eng. Vol. 33, No. 3 (2010), p.88.

[4] Wang Quanshan, Lan Xinzhe, Zhou Jun, et al.: Gdchem. Vol. 34, No. 173 (2007), p.32.

[5] Chang L X, Yang H B, Fu W Y, et al.: Mater. Res. Bull. Vol. 43 (2008), p.2427.

[6] Wei Ronghui, Yang Haibin, Du Kai, et al.: Mater. Chem. and Phys. Vol. 108, No. 2-3 (2008), p.188.

[7] Lin Ma, Weixiang Chen, Hui Li, et al.: Mater. Lett. Vol. 62 (2008), p.797.

[8] Shi H Q, Fu X, Zhou X D, et al.: J. of Solid State Chem. Vol. 179 (2006), p.1690.

[9] Sun Yanli: Master's Thesis (Fujian Normal University, 2009).

In order to see related information, you need to Login.
