Rapid Parametric Process Design Using FEM Analysis

Abstract:

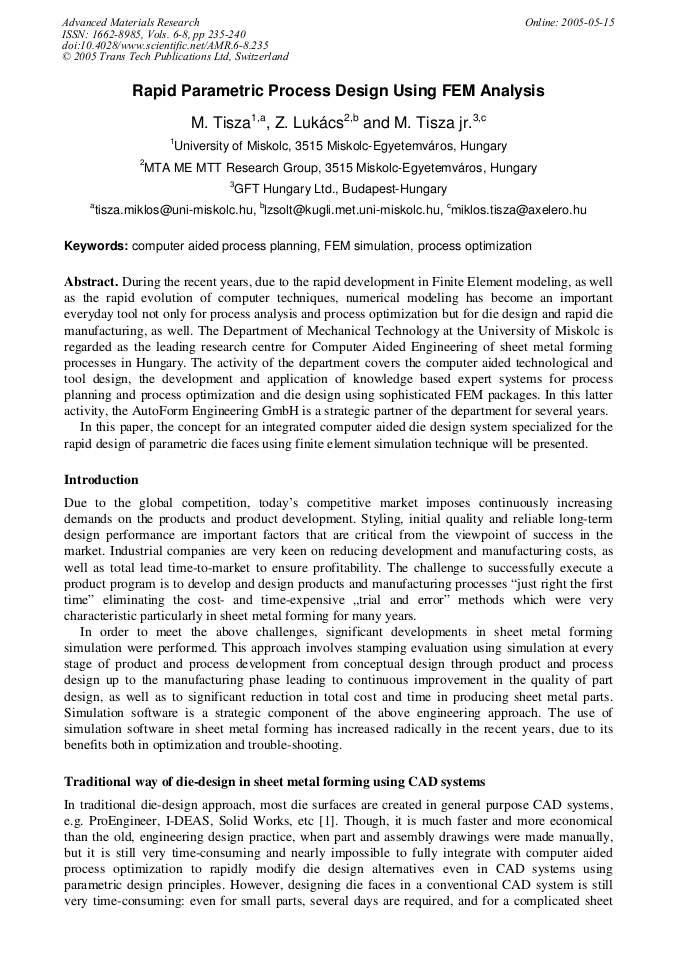

Article Preview

During the recent years, due to the rapid development in Finite Element modeling, as well as the rapid evolution of computer techniques, numerical modeling has become an important everyday tool not only for process analysis and process optimization but for die design and rapid die manufacturing, as well. The Department of Mechanical Technology at the University of Miskolc is regarded as the leading research centre for Computer Aided Engineering of sheet metal forming processes in Hungary. The activity of the department covers the computer aided technological and tool design, the development and application of knowledge based expert systems for process planning and process optimization and die design using sophisticated FEM packages. In this latter activity, the AutoForm Engineering GmbH is a strategic partner of the department for several years. In this paper, the concept for an integrated computer aided die design system specialized for the rapid design of parametric die faces using finite element simulation technique will be presented.

Info:

Periodical:

Main Theme:

Edited by:

M. Geiger, J. Duflou, H.J.J. Kals, B. Shirvani and U.P. Singh

Pages:

235-240

DOI:

10.4028/www.scientific.net/AMR.6-8.235

Citation:

M. Tisza and Z. Lukács, "Rapid Parametric Process Design Using FEM Analysis", Advanced Materials Research, Vols. 6-8, pp. 235-240, 2005

Online since:

May 2005

Export:

Price:

$35.00

[1] Zeid, I. CAD/CAM: Theroy and Practice, McGraw-Hill Co., New York, 1991. pp.1-1052.

[2] Tisza, M.: A CAD/CAM system for deep-drawing processes, Advanced Technology of Plasticity, 1987. v. 1. pp.145-154. Springer, Stuttgart.

[3] Romvári, P. -Tisza, M. -Rácz, P.: A complete CAD/CAM package for Sheet Metal Forming, 26th MTDR Conference, Manchester, 1986. pp.33-39.

DOI: 10.1007/978-1-349-08114-1_5

[4] Tisza, M.: Integration of Numerical Modelling and Knowledge Based Systems in Metal Forming, 6th ICTP Conference, Nürnberg, 19-24. September 1999. pp.117-128.

[5] Kubli, W.: Prozessoptimierte implizite FEM-Formulierung für die Umformsimulation, ETH Zürich, VDI Verlag, Reihe 20. No. 204. (1996).

[6] Schenk, O. -Hillmann, M.: Optimal design of metal forming die surfaces with evolution strategies, Journal of Computers & Structures, 2004. v. 82. pp.1695-1705.

DOI: 10.1016/j.compstruc.2004.03.055

[7] Tisza, M.: Some Recent Developments in Modeling and Simulation in Manufacturing Technologies, Production Processes and Systems, 2002. v. 1. No. 1. pp.99-106.

[8] AutoForm Engineering Inc. AutoForm Reference Manual, http: www. autoform. com.
