Heavy Ion Tracks Route to Nanotechnology

Abstract:

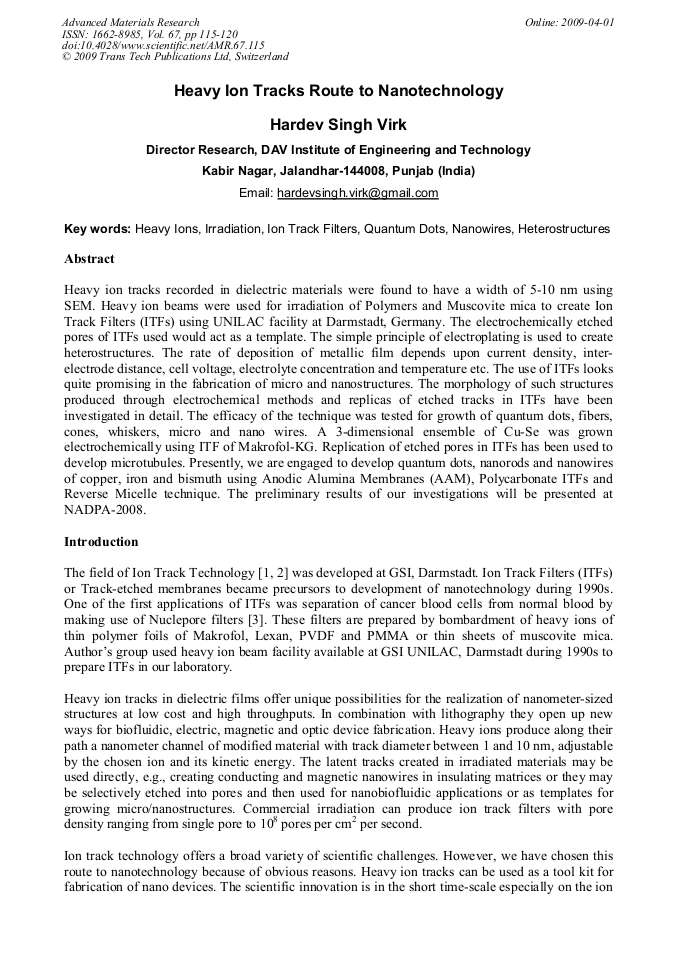

Article Preview

Heavy ion tracks recorded in dielectric materials were found to have a width of 5-10 nm using SEM. Heavy ion beams were used for irradiation of Polymers and Muscovite mica to create Ion Track Filters (ITFs) using UNILAC facility at Darmstadt, Germany. The electrochemically etched pores of ITFs used would act as a template. The simple principle of electroplating is used to create heterostructures. The rate of deposition of metallic film depends upon current density, inter-electrode distance, cell voltage, electrolyte concentration and temperature etc. The use of ITFs looks quite promising in the fabrication of micro and nanostructures. The morphology of such structures produced through electrochemical methods and replicas of etched tracks in ITFs have been investigated in detail. The efficacy of the technique was tested for growth of quantum dots, fibers, cones, whiskers, micro and nano wires. A 3-dimensional ensemble of Cu-Se was grown electrochemically using ITF of Makrofol-KG. Replication of etched pores in ITFs has been used to develop microtubules. Presently, we are engaged to develop quantum dots, nanorods and nanowires of copper, iron and bismuth using Anodic Alumina Membranes (AAM), Polycarbonate ITFs and Reverse Micelle technique. The preliminary results of our investigations will be presented at NADPA-2008.

Info:

Periodical:

Edited by:

S. Ray, S.K. Nath, A. Kumar, R.C. Agarwala, V. Agarwala, G.P. Chaudhari, B.S.S. Daniel

Pages:

115-120

DOI:

10.4028/www.scientific.net/AMR.67.115

Citation:

H. S. Virk "Heavy Ion Tracks Route to Nanotechnology", Advanced Materials Research, Vol. 67, pp. 115-120, 2009

Online since:

April 2009
