Research on Microscopic Grain-Workpiece Interaction in Grinding through Micro-Cutting Simulation, Part 2: Factorial Study

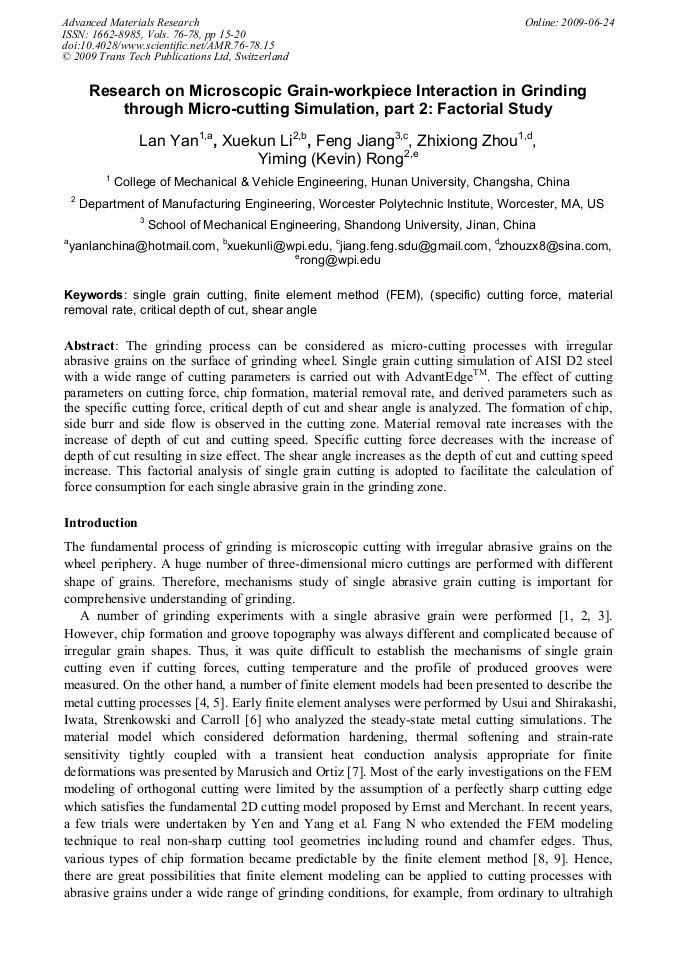

Article Preview

The grinding process can be considered as micro-cutting processes with irregular abrasive grains on the surface of grinding wheel. Single grain cutting simulation of AISI D2 steel with a wide range of cutting parameters is carried out with AdvantEdgeTM. The effect of cutting parameters on cutting force, chip formation, material removal rate, and derived parameters such as the specific cutting force, critical depth of cut and shear angle is analyzed. The formation of chip, side burr and side flow is observed in the cutting zone. Material removal rate increases with the increase of depth of cut and cutting speed. Specific cutting force decreases with the increase of depth of cut resulting in size effect. The shear angle increases as the depth of cut and cutting speed increase. This factorial analysis of single grain cutting is adopted to facilitate the calculation of force consumption for each single abrasive grain in the grinding zone.



Advanced Materials Research (Volumes 76-78)

Edited by:

Han Huang, Liangchi Zhang, Jun Wang, Zhengyi Jiang, Libo Zhou, Xipeng Xu and Tsunemoto Kuriyagawa




L. Yan et al., "Research on Microscopic Grain-Workpiece Interaction in Grinding through Micro-Cutting Simulation, Part 2: Factorial Study", Advanced Materials Research, Vols. 76-78, pp. 15-20, 2009

Online since:

June 2009




[1] M. Barge, J. Rech, H. Hamdi, J.M. Bergheau in: Wear. Vol. 264 (2008), p.382.

[2] B.F. Feng, G.Q. Cai, X.L. Sun in: Key Eng. Mater. Vol. 304-305 (2006), p.196.

[3] T. Matsuo, S. Toyoura, E. Oshima and Y. Ohbuchi in: Annals of CIRP, Vol. 38-1(1989), p.323.

[4] S.M. Athavale, J.S. Strenkowski in: Mach. Sci. Technol. Vol. 2 (1998), p.317.

[5] F. Klocke, T. Beck, S. Hoppe, T. Krieg in: J. Mater. Process. Technol. Vol. 120 (2002), p.450.

[6] J.S. Strenkowski, J.T. Carroll in: J. Eng. Ind. Vol. 107 (1985), p.347.

[7] T.D. Marusich, M. Ortiz, in: J. Numer. Meth. Eng. Vol. 38 (1995), p.3675.

[8] T. Obikawa, H. Sasahara, T. Shirakashi, and E. Usui in: ASME J. Manuf. Sci. Eng. Vol. 119 (1997), p.667.

[9] Y. Ohbuchi, T. Obikawa in: Transactions of the ASME. Vol. 125 (2003), p.324.

[10] S. M. Son, H. S. Lim, J.H. Ahn in: Int. J. Mach. Tools Manuf. Vol. 45 (2005), p.529.

[11] Z. Y. Chi. Abrasive Machining and Grinding Tool Selection. Beijing, Weapons Industry Press. 1990, pp.3-4.

[12] X.K. Li, L. Yan, W.B. Rashid and Y.M. Rong: submitted to ISAAT. (2009).
