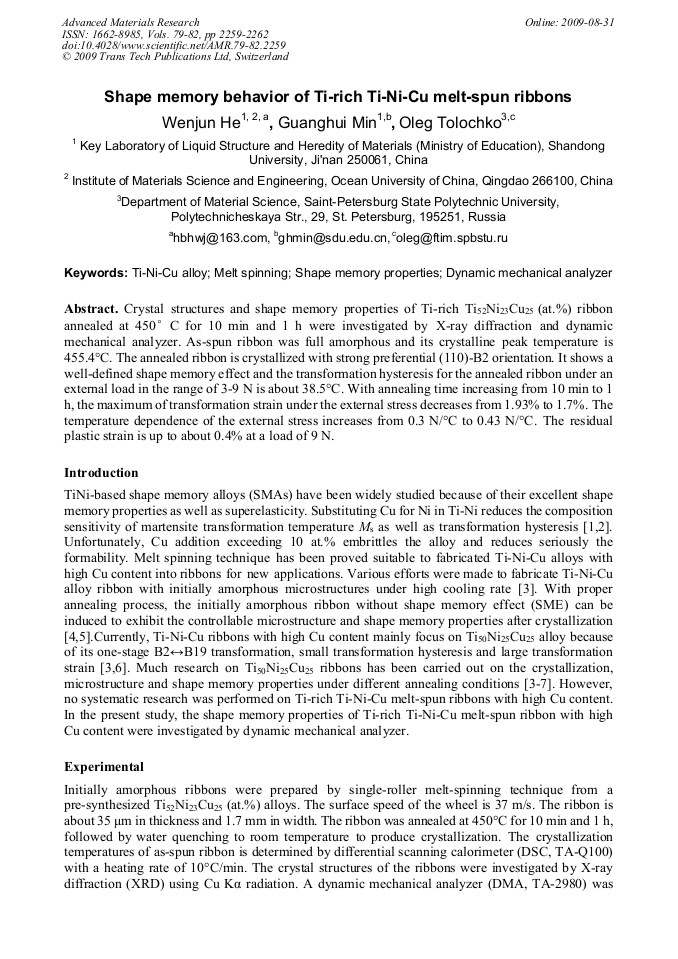

Shape Memory Behavior of Ti-Rich Ti-Ni-Cu Melt-Spun Ribbons


Article Preview

Crystal structures and shape memory properties of Ti-rich Ti52Ni23Cu25 (at.%) ribbon annealed at 450°C for 10 min and 1 h were investigated by X-ray diffraction and dynamic mechanical analyzer. As-spun ribbon was full amorphous and its crystalline peak temperature is 455.4°C. The annealed ribbon is crystallized with strong preferential (110)-B2 orientation. It shows a well-defined shape memory effect and the transformation hysteresis for the annealed ribbon under an external load in the range of 3-9 N is about 38.5°C. With annealing time increasing from 10 min to 1 h, the maximum of transformation strain under the external stress decreases from 1.93% to 1.7%. The temperature dependence of the external stress increases from 0.3 N/°C to 0.43 N/°C. The residual plastic strain is up to about 0.4% at a load of 9 N.



Advanced Materials Research (Volumes 79-82)

Edited by:

Yansheng Yin and Xin Wang




W. J. He et al., "Shape Memory Behavior of Ti-Rich Ti-Ni-Cu Melt-Spun Ribbons", Advanced Materials Research, Vols. 79-82, pp. 2259-2262, 2009

Online since:

August 2009




[1] T.H. Nam, T. Saburi and K. Shimizu, Mater. Trans. JIM Vol. 31 (1990), p.959.

[2] O. Mericier and K.N. Melton, Metall. Trans. A Vol. 10 (1979), p.387.

[3] G.P. Cheng, Z.L. Xie and Y. Liu, J. Alloys Compd. Vol. 415 (2006), p.182.

[4] Z.L. Xie, G.P. Cheng and Y. Liu, Acta Mater. Vol. 55 (2007), p.361.

[5] R. Santamarta and D. Schryvers, Mater. Trans. JIM Vol. 44 (2003), p.1760.

[6] Z.L. Xie and G.P. Cheng, J. Alloys Compd. Vol. 396 (2005), p.128.

[7] S.H. Chang, S.K. Wu and H. Kimura, Mat. Sci. Eng. A Vol. 476 (2008), p.316.

[8] J.Z. Chen and S.K. Wu, J. Non-Cryst. Solids Vol. 288 (2001), p.159.
