Influence of Thickness Parameters on 2-2 Cement Based Piezoelectric Composite

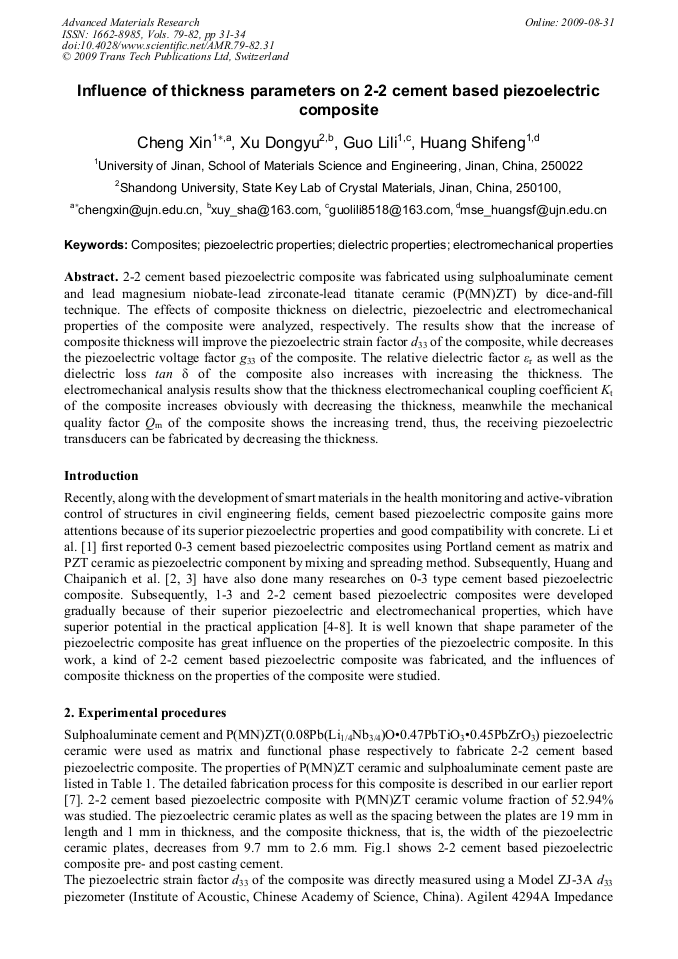

Article Preview

2-2 cement based piezoelectric composite was fabricated using sulphoaluminate cement and lead magnesium niobate-lead zirconate-lead titanate ceramic (P(MN)ZT) by dice-and-fill technique. The effects of composite thickness on dielectric, piezoelectric and electromechanical properties of the composite were analyzed, respectively. The results show that the increase of composite thickness will improve the piezoelectric strain factor d33 of the composite, while decreases the piezoelectric voltage factor g33 of the composite. The relative dielectric factor εr as well as the dielectric loss tan δ of the composite also increases with increasing the thickness. The electromechanical analysis results show that the thickness electromechanical coupling coefficient Kt of the composite increases obviously with decreasing the thickness, meanwhile the mechanical quality factor Qm of the composite shows the increasing trend, thus, the receiving piezoelectric transducers can be fabricated by decreasing the thickness.



Advanced Materials Research (Volumes 79-82)

Edited by:

Yansheng Yin and Xin Wang




X. Cheng et al., "Influence of Thickness Parameters on 2-2 Cement Based Piezoelectric Composite", Advanced Materials Research, Vols. 79-82, pp. 31-34, 2009

Online since:

August 2009




[1] Li Zongjin, Zhang Dong, Wu Keru, Journal of American Society. Vol. 85(2) (2002), p.305.

[2] A. Chaipanich and T. Tunkasiri. Current Applied Physics. Vol. 7(3) (2007), p.285.

[3] Cheng Xin, Huang Shifeng, Chang Jun, Xu Ronghua, Liu Futian, Lu Lingchao. Journal of the European Ceramic Society. Vol. 25(13) (2005), p.3223.


[4] Z.J. Li, D. Zhang and K.R. Wu. Materials and Structures. Vol. 34(242) (2001), p.506.

[5] Dong Zhang, Zongjin Li, Keru Wu. Cement and Concrete Research. Vol. 32(5) (2002), p.825.

[6] Huang Shifeng, Xu Dongyu, Chang Jun, Ye Zhengmao, Cheng Xin. Materials Letters. Vol. 61(30) (2007), p.5217.


[7] Xu Dongyu, Cheng Xin, Huang Shifeng and Jiang Minhua. Current Applied Physics. Vol. 9 (2009), p.816.


[8] K.H. LAM and H.L.W. CHAN. Applied Physics A: Materials Science and Processing. Vol. 81(7)(2005), p.1451.

[9] IEEE Standard on Piezoelectricity [S]. ANSI/IEEE Std. 176-1987. USA: American National Standard. (1987), p.227.
