Influence of Ultrasonic Peening on Wear Resistance of U70 Rails

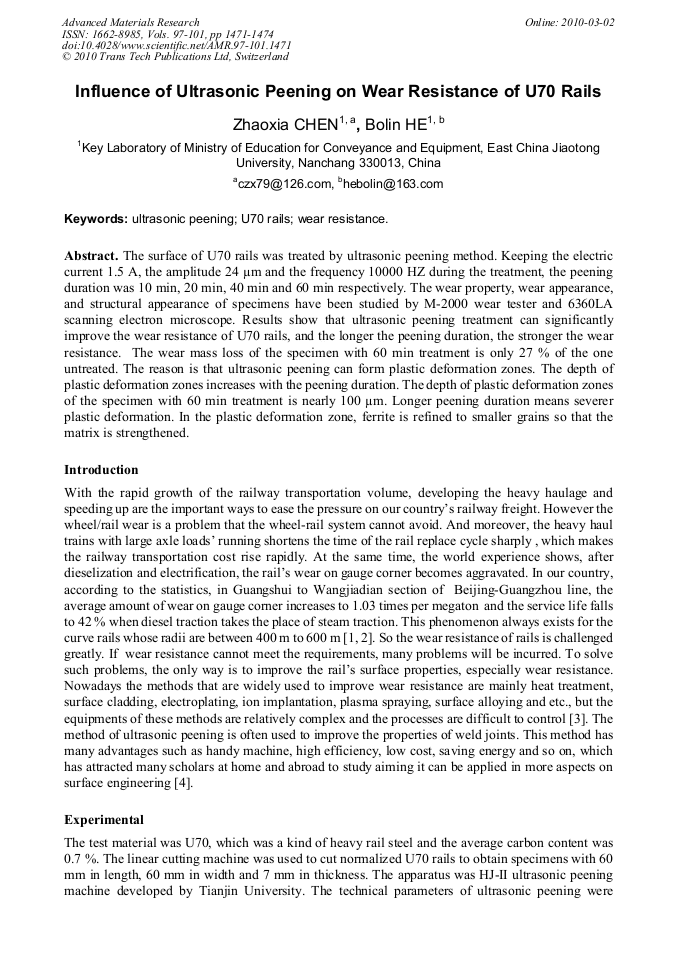

Article Preview

The surface of U70 rails was treated by ultrasonic peening method. Keeping the electric current 1.5 A, the amplitude 24 µm and the frequency 10000 HZ during the treatment, the peening duration was 10 min, 20 min, 40 min and 60 min respectively. The wear property, wear appearance, and structural appearance of specimens have been studied by M-2000 wear tester and 6360LA scanning electron microscope. Results show that ultrasonic peening treatment can significantly improve the wear resistance of U70 rails, and the longer the peening duration, the stronger the wear resistance. The wear mass loss of the specimen with 60 min treatment is only 27 % of the one untreated. The reason is that ultrasonic peening can form plastic deformation zones. The depth of plastic deformation zones increases with the peening duration. The depth of plastic deformation zones of the specimen with 60 min treatment is nearly 100 µm. Longer peening duration means severer plastic deformation. In the plastic deformation zone, ferrite is refined to smaller grains so that the matrix is strengthened.



Advanced Materials Research (Volumes 97-101)

Edited by:

Zhengyi Jiang and Chunliang Zhang




Z. X. Chen and B. L. He, "Influence of Ultrasonic Peening on Wear Resistance of U70 Rails", Advanced Materials Research, Vols. 97-101, pp. 1471-1474, 2010

Online since:

March 2010




[1] Jiqiu Gong: Wheel/Rail wear (China Railway Publications, China 1987). (In Chinese).

[2] Jianhui Deng, Qiyue Liu: Iron Steel Vanadium Titanium Vol. 27 (2006), p.48 (In Chinese).

[3] Chongyan Leng, Xu Zhang: Rare Metal Materials and Engineering Vol. 37 (2008), p.556.

[4] Ning Wu, Huaming Wang: Heat Treatment of Metals Vol. 34 (2009), p.46.

[5] ZHONG Ning, XU Shanqing: Journal of Shanghai Jiaotong University Vol. 40 (2006), p.1735.

[6] Xu L J, Xing J D: Wear Vol. 262 (2006), p.253.

[7] Wei S Z, Zhu J H, Xu L J: Materials Science and Engineering A Vol. 404 (2005), p.138 Fig. 4 Structural appearance in the longitudinal cross-section of specimens with peening a)10 min b)20 min c)40 min d)60 min a) b) c) d).
