Friction and Wear Behaviors of Si3N4 Sliding against M50 Bearing Steel in Vacuum

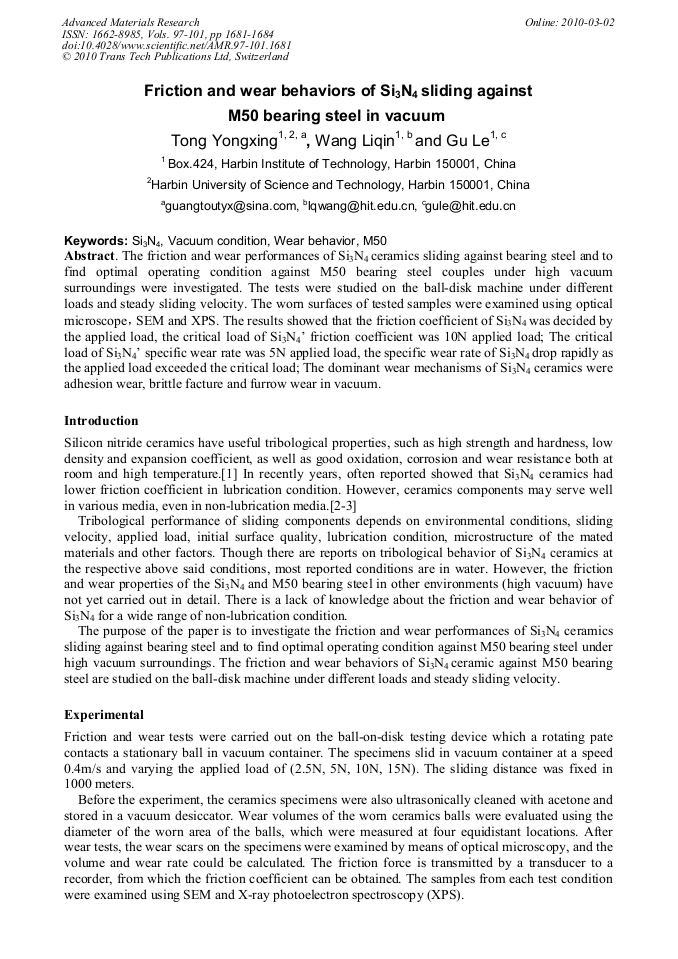

Article Preview

The friction and wear performances of Si3N4 ceramics sliding against bearing steel and to find optimal operating condition against M50 bearing steel couples under high vacuum surroundings were investigated. The tests were studied on the ball-disk machine under different loads and steady sliding velocity. The worn surfaces of tested samples were examined using optical microscope,SEM and XPS. The results showed that the friction coefficient of Si3N4 was decided by the applied load, the critical load of Si3N4’ friction coefficient was 10N applied load; The critical load of Si3N4’ specific wear rate was 5N applied load, the specific wear rate of Si3N4 drop rapidly as the applied load exceeded the critical load; The dominant wear mechanisms of Si3N4 ceramics were adhesion wear, brittle facture and furrow wear in vacuum.



Advanced Materials Research (Volumes 97-101)

Edited by:

Zhengyi Jiang and Chunliang Zhang




Y. X. Tong et al., "Friction and Wear Behaviors of Si3N4 Sliding against M50 Bearing Steel in Vacuum ", Advanced Materials Research, Vols. 97-101, pp. 1681-1684, 2010

Online since:

March 2010




[1] G. Laudisio and B. Seipel: Corrosion Science. 47 (2005), p.1666.

[2] Koji Kato and Koshi Adachi: Wear. 253 (2002), p.1097.

[3] M.J. O'Brien, N. Presser and E.Y. Robinson: Engineering Failure Analysis. 10 (2003), p.453.

[4] D. Amutha Rani andY. Yoshizawa: Journal of the European Ceramic Society. 24 (2004), p.3279.
