Grain Boundary Diffusion in Cation-Doped Superplastic 3Y-TZP

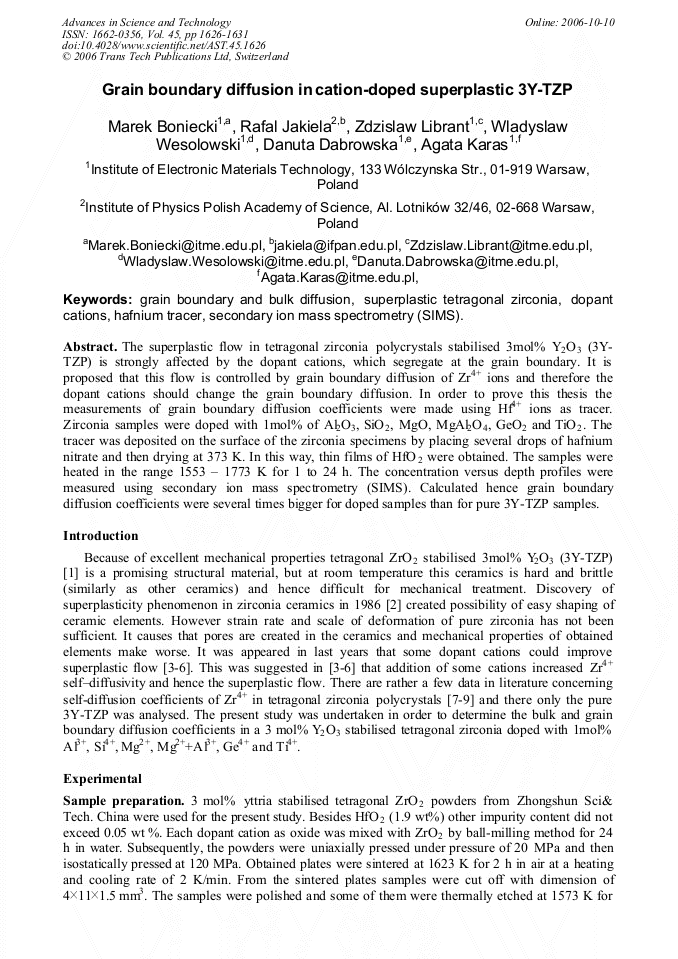

Article Preview

The superplastic flow in tetragonal zirconia polycrystals stabilised 3mol% Y2O3 (3YTZP) is strongly affected by the dopant cations, which segregate at the grain boundary. It is proposed that this flow is controlled by grain boundary diffusion of Zr4+ ions and therefore the dopant cations should change the grain boundary diffusion. In order to prove this thesis the measurements of grain boundary diffusion coefficients were made using Hf4+ ions as tracer. Zirconia samples were doped with 1mol% of Al2O3, SiO2, MgO, MgAl2O4, GeO2 and TiO2. The tracer was deposited on the surface of the zirconia specimens by placing several drops of hafnium nitrate and then drying at 373 K. In this way, thin films of HfO 2 were obtained. The samples were heated in the range 1553 – 1773 K for 1 to 24 h. The concentration versus depth profiles were measured using secondary ion mass spectrometry (SIMS). Calculated hence grain boundary diffusion coefficients were several times bigger for doped samples than for pure 3Y-TZP samples.



Edited by:





M. Boniecki et al., "Grain Boundary Diffusion in Cation-Doped Superplastic 3Y-TZP", Advances in Science and Technology, Vol. 45, pp. 1626-1631, 2006

Online since:

October 2006




[1] R.A. Cutler, J.R. Reynolds and A. Jones: J. Am. Ceram. Soc., Vol. 75.

[8] (1992), p.2173.

[2] F. Wakai, S. Sakaguchi and H. Matsuno: Adv. Ceram. Mater, Vol. 1 (1986), p.259.

[3] J. Miramuda, M. Nakano, K. Sasaki, Y. Ikahura and T. Sakuma: J. Am. Ceram. Soc., Vol. 84.

[8] (2001) p.1817.

[4] K. Nakatani, H. Nagayama, H. Yoshida, T. Yamamoto and T. Sakuma: Scripta Mater., Vol. 49 (2003), p.791.

[5] A. Kuwabara, M. Nakano, H. Yoshida, Y. Ikahura, T. Sakuma: Acta Mater. Vol. 52 (2004), p.5563.

[6] M. Boniecki, Z. Librant, W. Wesolowski and H. Weglarz: Ceramics, Polish Ceramic Bulletin Vol. 91 (2005), p.435 (in Polish).

[7] Y. Sakka, Y. Oishi, K. Ando, and S. Morita: J. Am. Ceram. Soc. Vol. 74.

[10] (1991), p.2610.

[8] M. Kilo, M. Weller, G. Borhard, B. Damson, S. Weber and S. Scherrer: Defect an Diffusion Forum Vols. 194-199 (2001), p.1039.

[9] S. Swaroop, M. Kilo, Ch. Argirusis, G. Borchardt and A.H. Chokshi: Acta Mater. Vol. 53 (2005), p.4975.

[10] M. Kilo: Defect and Diffusion Forum Vols. 242-244 (2005) p.185.

[11] Y. Oishi, Y. Sakka, K. Ando: J. Nucl. Mater. Vol. 96 (1981), p.23.

[12] I. Kaur and W. Gust: Fundamentals of grain and interphase boundary diffusion. (Ziegler Press, Stuttgart, Germany 1989).

[13] Y. Mishin, Chr. Herzig, J. Bernardini and W. Gust: Int. Mater. Rev. Vol. 42, No. 4 (1997), p.155.

[14] K. Kowalski, A. Bernasik and A. Sadowski: J. Eur. Ceram. Soc., 20 (2000), p.951.

[15] M. Boniecki, Z. Librant, A. Gladki, H. Weglarz and W. Wesolowski: Key Engin. Mater. Vols. 206-213 (2002) p.1013.


[16] M.Z. Berbon and T.G. Langdon: Acta Mater. Vol. 47, No 8 (1999), p.2485.
