Sol-Gel-Derived Hydroxyapatite and its Application to Sorption of Heavy Metals

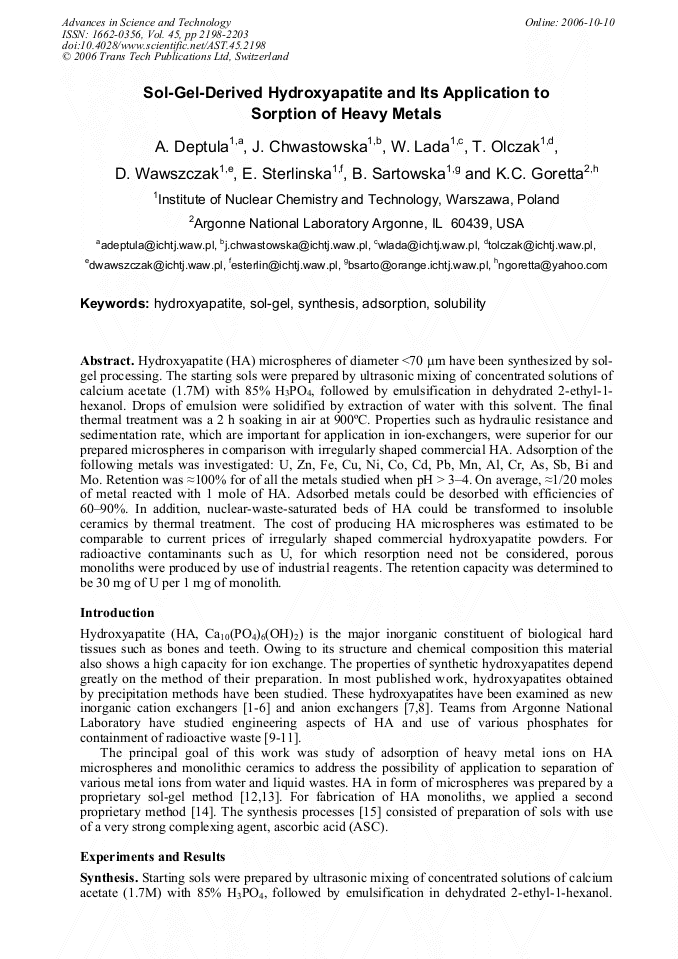

Article Preview

Hydroxyapatite (HA) microspheres of diameter <70 μm have been synthesized by solgel processing. The starting sols were prepared by ultrasonic mixing of concentrated solutions of calcium acetate (1.7M) with 85% H3PO4, followed by emulsification in dehydrated 2-ethyl-1- hexanol. Drops of emulsion were solidified by extraction of water with this solvent. The final thermal treatment was a 2 h soaking in air at 900°C. Properties such as hydraulic resistance and sedimentation rate, which are important for application in ion-exchangers, were superior for our prepared microspheres in comparison with irregularly shaped commercial HA. Adsorption of the following metals was investigated: U, Zn, Fe, Cu, Ni, Co, Cd, Pb, Mn, Al, Cr, As, Sb, Bi and Mo. Retention was ≈100% for of all the metals studied when pH > 3–4. On average, ≈1/20 moles of metal reacted with 1 mole of HA. Adsorbed metals could be desorbed with efficiencies of 60–90%. In addition, nuclear-waste-saturated beds of HA could be transformed to insoluble ceramics by thermal treatment. The cost of producing HA microspheres was estimated to be comparable to current prices of irregularly shaped commercial hydroxyapatite powders. For radioactive contaminants such as U, for which resorption need not be considered, porous monoliths were produced by use of industrial reagents. The retention capacity was determined to be 30 mg of U per 1 mg of monolith.



Edited by:





A. Deptuła et al., "Sol-Gel-Derived Hydroxyapatite and its Application to Sorption of Heavy Metals", Advances in Science and Technology, Vol. 45, pp. 2198-2203, 2006

Online since:

October 2006




[1] T. Suzuki, T. Hatsushika and Y. Hayakawa: J. Chem. Soc. Faraday Trans. Vol. 77 (1981), p.1059.

[2] T. Suzuki, T. Hatsushika and M. Miyake: ibid., Vol. 78 (1982), p.3605.

[3] T. Suzuki, K. Ishigaki and M. Miyake: ibid., Vol. 80 (1984), p.3157.

[4] J. Reichert and J.G.P. Binner: J. Mater. Sci. Vol. 31 (1996), p.1231.

[5] J. Jeanjean, M. Fedoroff, F. Faverjon, U. Vincent and J. Corset: ibid., Vol. 31 (1996), p.6156.

[6] J. Jeanjean, U. Vincent and M. Fedoroff: Solid State Chem. Vol. 108 (1994), p.68.

[7] G. Wright: Ann. Chim. Fr. Vol. 5 (1970), p.39.

[8] R.A. Young: in Proceedings of the 2 nd International Congress on Phosphorus Compounds, (IMPHOS, Paris, 1980), p.73.

[9] D. Singh, A.S. Wagh, J. Cunnane and J. Mayberry: J. Environ. Sci. Health Vol. A32 (1997), p.527.

[10] D. Singh, M. de la Cinta Lorenzo-Martin, J.L. Routbort, F. Gutiérrez-Mora and E.D. Case: Int. J. Appl. Ceram. Technol. Vol. 2 (2005), p.247.

[11] K.C. Goretta, D. Singh, M. Tlustochowicz, M.M. Cuber, M.L. Burdt, S.Y. Jeong, T.L. Smith, A.S. Wagh and J.L. Routbort: Mater. Res. Soc. Proc. Vol. 556 (1999), p.1253.


[13] C. Alvani, A. Borello, A. Deptula, L. Lorenzini and L. Orru': Method for preparing of irregularly shaped and spherical powders of calcium phosphates, especially Cahydroxyapatite, Italian Patent 01245400 (1994).

[14] A. Deptuła, W. Łada, T. Olczak, A. Borello, C. Alvani and A. Di Bartolomeo: J. NonCrystall. Sol. Vol. 147&148 (1992), p.537.

[15] A. Deptuła, W. Łada, T. Olczak, M.T. Lanagan, S.E. Dorris, K.C. Goretta and R.B. Poeppel: Method for preparing of high temperature superconductors, Polish Patent 172618 (1997).

[16] A. Deptuła, W. Łada, T. Olczak, B. Sartowska, R.Z. LeGeros and J.P. LeGeros: in Bioceramics 11, ed. R.Z. LeGeros and J.P. LeGeros (World Scientific, Singapore, 1998), p.743.


[17] A. Deptula, A.G. Chmielewski and T.E. Wood: in 9th CIMTEC Proceedings, Part D, ed. P. Vincenzini (Techna, Faenza, 1999), p.771.

[18] R.M.H. Verbeek, H. Steyaer, H.P. Thun and F. Verbeek: J. Chem. Soc. Faraday Trans. Vol. 76 (1980), p.209.

[19] Y. Xu, F. Schwartz and S.J. Traina: Environ. Sci. Technol. Vol. 28 (1994), p.1472.
