Auger Electron Spectroscopical Investigation of Interfacial Segregation in the Cu-Bi System

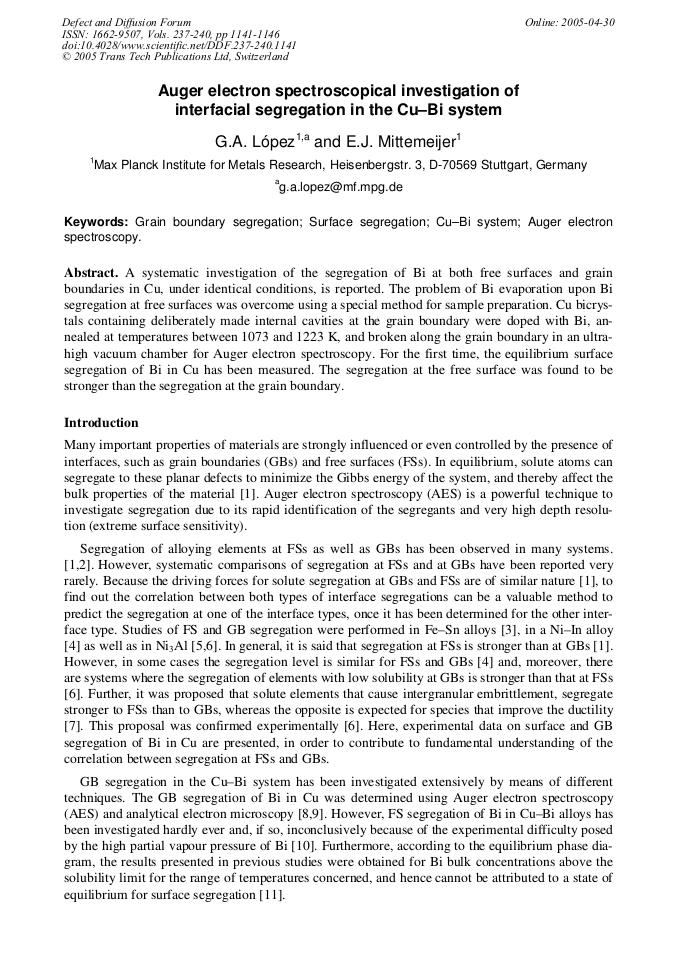

Article Preview

A systematic investigation of the segregation of Bi at both free surfaces and grain boundaries in Cu, under identical conditions, is reported. The problem of Bi evaporation upon Bi segregation at free surfaces was overcome using a special method for sample preparation. Cu bicrystals containing deliberately made internal cavities at the grain boundary were doped with Bi, annealed at temperatures between 1073 and 1223 K, and broken along the grain boundary in an ultrahigh vacuum chamber for Auger electron spectroscopy. For the first time, the equilibrium surface segregation of Bi in Cu has been measured. The segregation at the free surface was found to be stronger than the segregation at the grain boundary.



Defect and Diffusion Forum (Volumes 237-240)

Edited by:

Prof. Marek Danielewski, Robert Filipek, Prof. Rafal Abdank-Kozubski, Witold Kucza, Paweł Zięba and Zbigniew Żurek




G. A. López and E. J. Mittemeijer, "Auger Electron Spectroscopical Investigation of Interfacial Segregation in the Cu-Bi System", Defect and Diffusion Forum, Vols. 237-240, pp. 1141-1146, 2005

Online since:

April 2005




[1] E.D. Hondros, M.P. Seah, S. Hofmann and P. Lejcek: In: R.W. Cahn and P. Haasen, editors. Physical metallurgy (North-Holland, Amsterdam 1996, Vol. 2), p.1201.


[2] C. Uebing: Heter. Chem. Rev. 3 (1996), p.351.

[3] M.P. Seah and C. Lea: Phil. Mag. 31 (1975), p.627.

[4] T. Muschik, S. Hofmann, W. Gust and B. Predel: Appl. Surf. Sci. 37 (1989), p.439.

[5] A. Larere, M. Guttmann, P. Dumoulin and C. Roques-Carmes: Acta Metall. 30 (1982), p.685.

[6] T. Liu, C.L. White and J.A. Horton: Acta Metall. 33 (1985), p.213.

[7] M.P. Seah Acta Metall. 28 (1980), p.955.

[8] L.S. Chang, E. Rabkin, B.B. Straumal, B. Baretzky and W. Gust: Acta Mater. 47 (1999), p.4041.

[9] S. Sigle, L.S. Chang and W. Gust: Phil. Mag. A 82 (2002), p.1595.

[10] C. Molinari and J.C. Joud: In: P. Lacombe, editor. Physical chemistry of solid state: applications to metals and their compounds (Elsevier, Amsterdam 1984), p.151.

[11] L.S. Chang, B.B. Straumal, E. Rabkin, W. Gust and F. Sommer: J. Phase Equilibria 18 (1997), p.128.

[12] D. McLean: Grain boundaries in metals (Clarendon, Oxford 1957), p.116.

[13] G.A. López and E.J. Mittemeijer: Scripta Mater 51 (2004), p.1.

[14] M. Menyhard, B. Blum, C.J. Jr. McMahon, S. Chikwambani and J. Weertman: J. Phys. 49 (1988), p. C5-457.
