Defect Analysis in Semiconductor Materials Based on p-n Junction Diode Characteristics

Abstract:

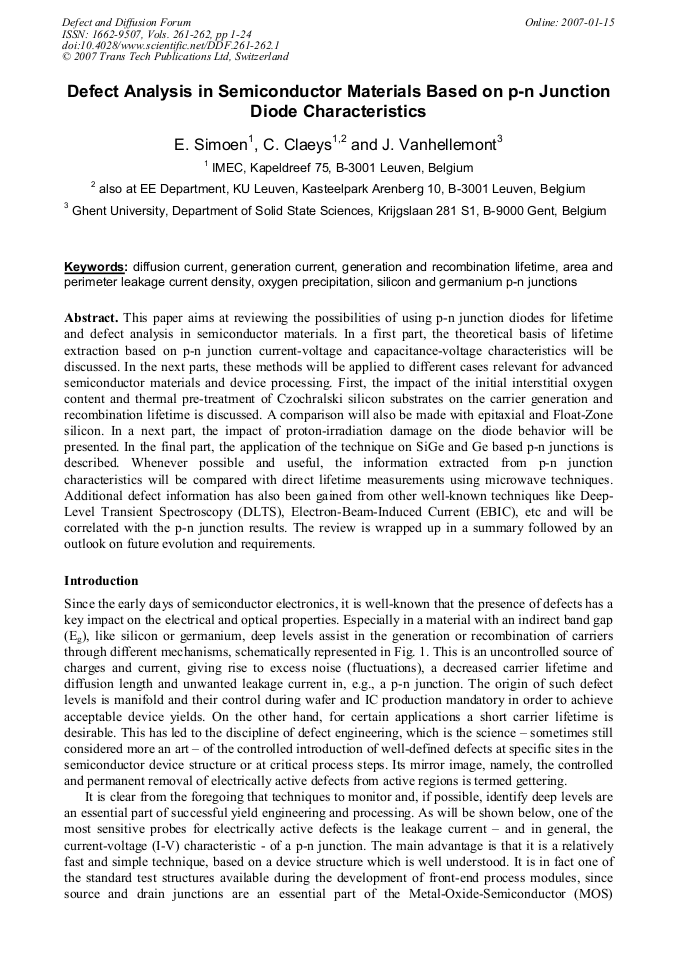

Article Preview

This paper aims at reviewing the possibilities of using p-n junction diodes for lifetime and defect analysis in semiconductor materials. In a first part, the theoretical basis of lifetime extraction based on p-n junction current-voltage and capacitance-voltage characteristics will be discussed. In the next parts, these methods will be applied to different cases relevant for advanced semiconductor materials and device processing. First, the impact of the initial interstitial oxygen content and thermal pre-treatment of Czochralski silicon substrates on the carrier generation and recombination lifetime is discussed. A comparison will also be made with epitaxial and Float-Zone silicon. In a next part, the impact of proton-irradiation damage on the diode behavior will be presented. In the final part, the application of the technique on SiGe and Ge based p-n junctions is described. Whenever possible and useful, the information extracted from p-n junction characteristics will be compared with direct lifetime measurements using microwave techniques. Additional defect information has also been gained from other well-known techniques like Deep- Level Transient Spectroscopy (DLTS), Electron-Beam-Induced Current (EBIC), etc and will be correlated with the p-n junction results. The review is wrapped up in a summary followed by an outlook on future evolution and requirements.

Info:

Periodical:

Defect and Diffusion Forum (Volumes 261-262)

Edited by:

David J. Fisher

Pages:

1-24

DOI:

10.4028/www.scientific.net/DDF.261-262.1

Citation:

E. Simoen et al., "Defect Analysis in Semiconductor Materials Based on p-n Junction Diode Characteristics", Defect and Diffusion Forum, Vols. 261-262, pp. 1-24, 2007

Online since:

January 2007
