Thermo-Mechanical Materials Analysis

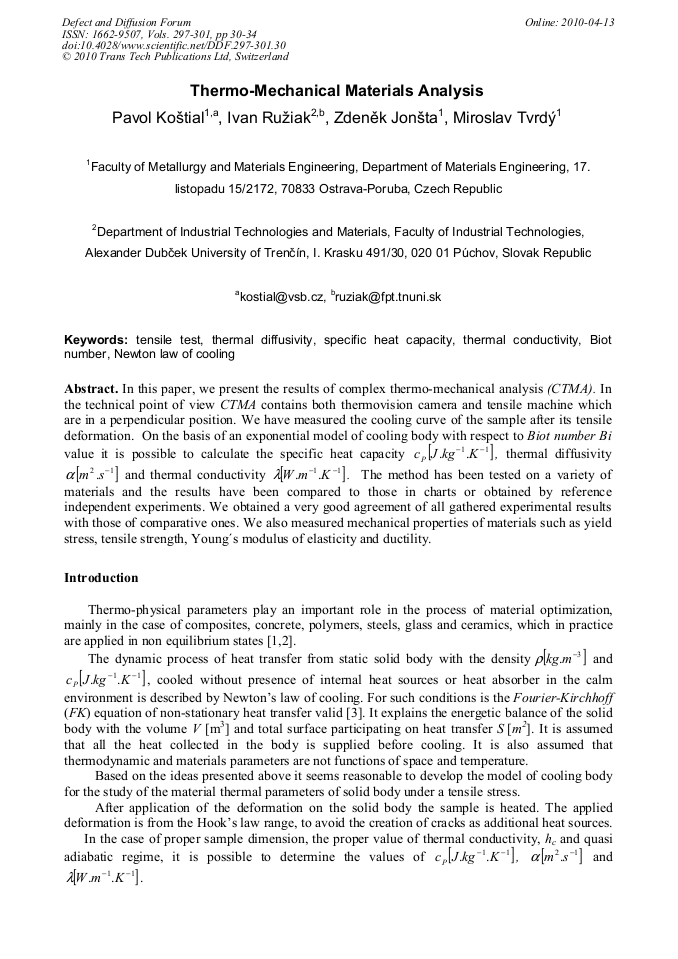

Article Preview

In this paper, we present the results of complex thermo-mechanical analysis (CTMA). In the technical point of view CTMA contains both thermovision camera and tensile machine which are in a perpendicular position. We have measured the cooling curve of the sample after its tensile deformation. On the basis of an exponential model of cooling body with respect to Biot number Bi value it is possible to calculate the specific heat capacity , thermal diffusivity and thermal conductivity . The method has been tested on a variety of materials and the results have been compared to those in charts or obtained by reference independent experiments. We obtained a very good agreement of all gathered experimental results with those of comparative ones. We also measured mechanical properties of materials such as yield stress, tensile strength, Young´s modulus of elasticity and ductility.



Defect and Diffusion Forum (Volumes 297-301)

Edited by:

Prof. Andreas Öchsner, Prof. Graeme E. Murch, Ali Shokuhfar and Prof. João M.P.Q. Delgado




P. Koštial et al., "Thermo-Mechanical Materials Analysis", Defect and Diffusion Forum, Vols. 297-301, pp. 30-34, 2010

Online since:

April 2010




[1] Material Properties and Data (2009). http: /metals. about. com/cs/properties/l/blproperties. htm, accessed 21 May (2009).

[2] Z. Jančíková: Artificial neuron nets in material engineering, GEPARTS Ostrava, (2006).

[3] F. P Incropera, D. P DeWitt, T.L. Bergman and A.S. Lavine: Fundamentals of Heat and Mass Transfer, John Wiley and Sons (2007).

[4] Plastics Web (2009). http: /www. ides. com/property_descriptions/ISO527-1-2. asp, Accessed 19 May (2009).

[5] M. Omini, A. Sparavigna and A. Strigazzi: Appl. Phys. A Vol. 50 (1990), p.35.

[6] J.H. Lienhard and J.H. Lienhard: A Heat Transfer Textbook, Prentice-Hall Publishers (1980).

[7] Functions Experiment Newton´s law of cooling (2009) http: /www. math. okstate. edu/~noell/labs/cooling. pdf, accessed 19 May (2009).

[8] J. Brož, V. Roskovec and M. Valouch: Physical and mathematical values, SNTL Praha (1980).

[9] I. Kopal, P. Koštial, I. Ružiak, Z. Švecová and J. Kučerová: The Thermal Data Interpolation in Data Reduction for Evaluation of Thermal Diffusivity Measured by Flash Method, In: COSIM 2006 XI. International Conference, Warsaw University of Technology, pp.175-179 (2006).
