Heat Treatment Analysis of Large Al-Cu-Mg-Si Alloy Extrusion

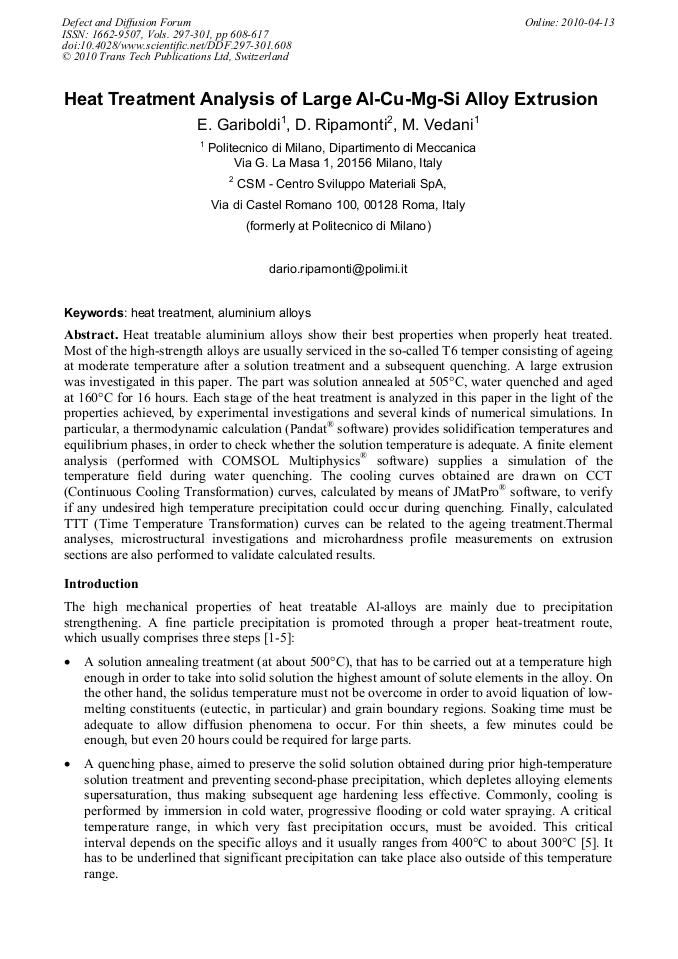

Article Preview

Heat treatable aluminium alloys show their best properties when properly heat treated. Most of the high-strength alloys are usually serviced in the so-called T6 temper consisting of ageing at moderate temperature after a solution treatment and a subsequent quenching. A large extrusion was investigated in this paper. The part was solution annealed at 505°C, water quenched and aged at 160°C for 16 hours. Each stage of the heat treatment is analyzed in this paper in the light of the properties achieved, by experimental investigations and several kinds of numerical simulations. In particular, a thermodynamic calculation (Pandat® software) provides solidification temperatures and equilibrium phases, in order to check whether the solution temperature is adequate. A finite element analysis (performed with COMSOL Multiphysics® software) supplies a simulation of the temperature field during water quenching. The cooling curves obtained are drawn on CCT (Continuous Cooling Transformation) curves, calculated by means of JMatPro® software, to verify if any undesired high temperature precipitation could occur during quenching. Finally, calculated TTT (Time Temperature Transformation) curves can be related to the ageing treatment.Thermal analyses, microstructural investigations and microhardness profile measurements on extrusion sections are also performed to validate calculated results.



Defect and Diffusion Forum (Volumes 297-301)

Edited by:

Andreas Öchsner, Graeme E. Murch, Ali Shokuhfar and João M.P.Q. Delgado






E. Gariboldi et al., "Heat Treatment Analysis of Large Al-Cu-Mg-Si Alloy Extrusion", Defect and Diffusion Forum, Vols. 297-301, pp. 608-617, 2010

Online since:

April 2010
