Redistribution of Metallic Impurities in Si during Annealing and Oxidation: W and Fe

Abstract:

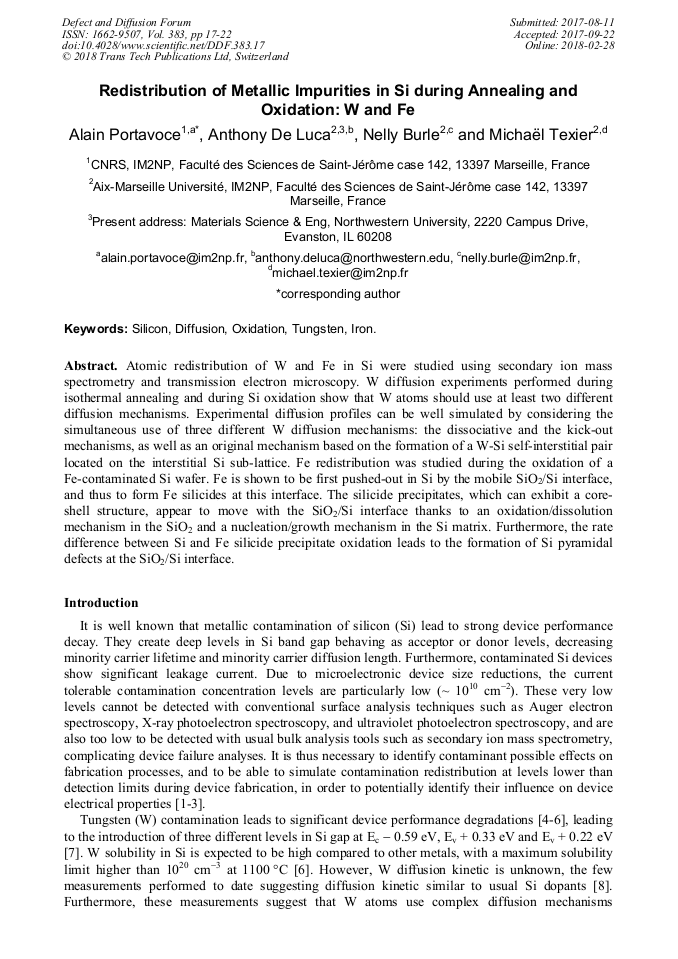

Article Preview

Atomic redistribution of W and Fe in Si were studied using secondary ion mass spectrometry and transmission electron microscopy. W diffusion experiments performed during isothermal annealing and during Si oxidation show that W atoms should use at least two different diffusion mechanisms. Experimental diffusion profiles can be well simulated by considering the simultaneous use of three different W diffusion mechanisms: the dissociative and the kick-out mechanisms, as well as an original mechanism based on the formation of a W-Si self-interstitial pair located on the interstitial Si sub-lattice. Fe redistribution was studied during the oxidation of a Fe-contaminated Si wafer. Fe is shown to be first pushed-out in Si by the mobile SiO2/Si interface, and thus to form Fe silicides precipitates at this interface. The silicide precipitates, which can exhibit a core-shell structure, appear to move with the SiO2/Si interface thanks to an oxidation/dissolution mechanism in the SiO2 and a nucleation/growth mechanism in the Si matrix. Furthermore, the rate difference between Si and Fe silicide precipitate oxidation leads to the formation of Si pyramidal defects at the SiO2/Si interface.

Info:

Periodical:

Edited by:

Prof. Eugen Rabkin, Amy Novick-Cohen, Leonid Klinger and Nachum Frage

Pages:

17-22

Citation:

A. Portavoce et al., "Redistribution of Metallic Impurities in Si during Annealing and Oxidation: W and Fe", Defect and Diffusion Forum, Vol. 383, pp. 17-22, 2018

Online since:

February 2018

Export:

Price:

$38.00

* - Corresponding Author

[1] F. Boucard, F. Roger, I. Chakarov, V. Zhuk, M. Temkin, X. Montagner, E. Guichard, D. Mathiot, Mat. Sci. Eng. B 124-125 (2005) 409.

DOI: https://doi.org/10.1016/j.mseb.2005.08.120

[2] P. Pfäffli, P. Tikhomirov, X. Xu, I. Avci, Y. -S. Oh, P. Balasingam, S. Krishnamoorthy, T. Ma, Microelec. Reliability 52 (2012) 1761.

DOI: https://doi.org/10.1016/j.microrel.2012.06.025

[3] M. Mekheldi, S. Oussalah, A. Lounis, N. Brihi, Results in Physics 6 (2016) 80.

[4] J.R. Davis, A. Rohatgi, P. Rai-Choudhury, P. Blais, R.H. Hopkins, J.R. Mccormick, Characterization of the effects of metallic impurities on silicon solar cell performance, 13th Photovoltaic Specialists Conference, 1978, p.490–495.

[5] D. Gui, Z.X. Xing, Z.Q. Mo, Y. Hua, S. Zhao, IEEE International Conference on Semiconductor Electronics, 2006, p.477–480.

[6] Y. Fujisaki, T. Ando, H. Kozuka, Y. Takano, J. Appl. Phys. 63 (1988) 2304.

[7] S. Boughaba and D. Mathiot, J. Appl. Phys. 69 (1991) 278.

[8] K. Graff, Metal impurities in silicon-device fabrication, Springer series in materials science 24, Springer-Verlag, New York, (1995).

DOI: https://doi.org/10.1007/978-3-642-97593-6_1

[9] H. Lemeke, Proceeding of the Electrochemical Society 94-10 (1994) 695.

[10] A.A. Istratov, H. Hieslmair, E.R. Weber, Appl. Phys. A: Mat. Sci. Process. 69 (1999) 13.

[11] F.A. Trumbore, Bell System Technical Journal 39 (1960) 205.

[12] A. De Luca, A. Portavoce, M. Texier, C. Grosjean, N. Burle, V. Oison, B. Pichaud, J. Appl. Phys. 115 (2014) 013501.

DOI: https://doi.org/10.1063/1.4859455

[13] D. J Wong-Leung, J. Eaglesham, J. Sapjeta, D.C. Jacobson, J.M. Poate, J.S. Williams, J. Appl. Phys. 83 (1998) 580.

[14] A. De Luca, M. Texier, A. Portavoce, N. Burle, C. Grosjean, S. Morata, F. Michel, J. Appl. Phys. 117 (2015) 115302.

[15] M. Jacob, P. Pichler, H. Ryssel, J. Appl. Phys. 82 (1997) 182.

[16] G. Mannino, S. Whelan, E. Schroer, V. Privitera, P. Leveque, B. G. Svensson, E. Napolitani, J. Appl. Phys. 89 (2001) 5381.

[17] P.M. Fahey, P.B. Griffin, and J.D. Plummer, Point defects and dopant diffusion in silicon, in: Reviews of Modern Physics 61 (1989) 289.

DOI: https://doi.org/10.1103/revmodphys.61.289

[18] P. Pichler, Intrinsic Point Defects, Impurities, and Their Diffusion in Silicon, Springer, Vienna, (2004).
