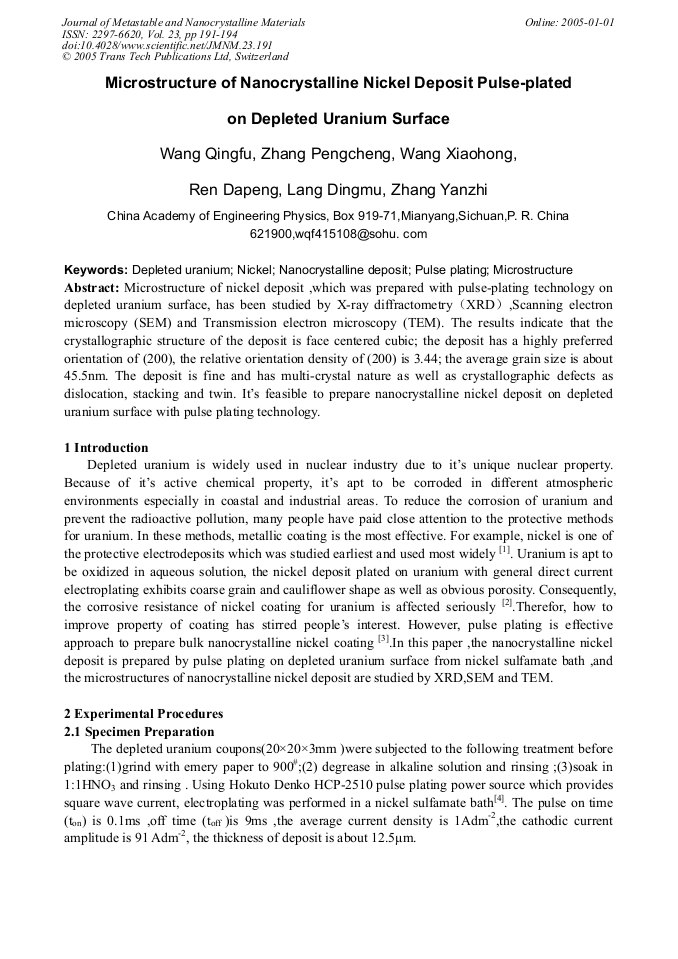

Microstructure of Nanocrystalline Nickel Deposit Pulse-Plated on Depleted Uranium Surface
Microstructure of nickel deposit ,which was prepared with pulse-plating technology on depleted uranium surface, has been studied by X-ray diffractometry（XRD）,Scanning electron microscopy (SEM) and Transmission electron microscopy (TEM). The results indicate that the crystallographic structure of the deposit is face centered cubic; the deposit has a highly preferred orientation of (200), the relative orientation density of (200) is 3.44; the average grain size is about 45.5nm. The deposit is fine and has multi-crystal nature as well as crystallographic defects as dislocation, stacking and twin. It’s feasible to prepare nanocrystalline nickel deposit on depleted uranium surface with pulse plating technology.
M. Gupta and Christina Y.H. Lim
Q. F. Wang et al., "Microstructure of Nanocrystalline Nickel Deposit Pulse-Plated on Depleted Uranium Surface", Journal of Metastable and Nanocrystalline Materials, Vol. 23, pp. 191-194, 2005
