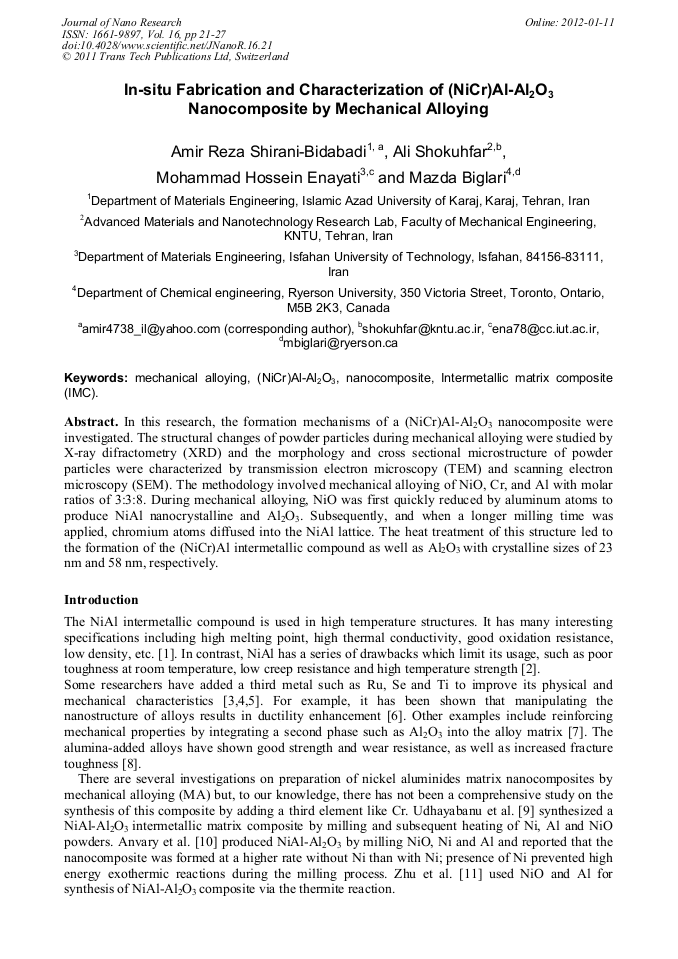

In Situ Fabrication and Characterization of (NiCr)Al-Al2O3 Nanocomposite by Mechanical Alloying


Article Preview

In this research, the formation mechanisms of a (NiCr)Al-Al2O3 nanocomposite were investigated. The structural changes of powder particles during mechanical alloying were studied by X-ray difractometry (XRD) and the morphology and cross sectional microstructure of powder particles were characterized by transmission electron microscopy (TEM) and scanning electron microscopy (SEM). The methodology involved mechanical alloying of NiO, Cr, and Al with molar ratios of 3:3:8. During mechanical alloying, NiO was first quickly reduced by aluminum atoms to produce NiAl nanocrystalline and Al2O3. Subsequently, and when a longer milling time was applied, chromium atoms diffused into the NiAl lattice. The heat treatment of this structure led to the formation of the (NiCr)Al intermetallic compound as well as Al2O3 with crystalline sizes of 23 nm and 58 nm, respectively.



Edited by:

Prof. Andreas Öchsner, Prof. Irina V. Belova and Prof. Graeme E. Murch




A. R. Shirani-Bidabadi et al., "In Situ Fabrication and Characterization of (NiCr)Al-Al2O3 Nanocomposite by Mechanical Alloying", Journal of Nano Research, Vol. 16, pp. 21-27, 2011

Online since:

January 2012




[1] A. Albiter, E. Bedollah, R. Perez, Microstructure characterization of the NiAl intermetallic compound with Fe, Ga and Mo additions obtained by mechanical alloying, J. Mater. Sci. Eng. A. 328 (2002) 80-86.


[2] C. Leen, S. Hong, P. Lee, Formation of NiAl-Al2O3 intermettalic-matrix camposite powders by mechanical alloying technique, J. Intermettalics 8 (2000) 1043-1048.

[3] I. Apachieti, L.M. Craus, Gh. Calugaru, X-ray diffraction study on Ni-Al-Se amorphiztion by mechanical alloying, J. Alloys Com. 260 (1997) 135-138.


[4] H. Sheu, Le. Hsiung, J. Sheu, Shynthesis of multiphase intermetallic compounds by mechanical alloying in Ni-Al-Ti system, J. Alloys Com. 469 (2009) 483-487.


[5] S. García-Galán, G. Arámburo-Pérez, C. González-Rivera, J. Juárez-Islas, The effect of Cu-macroalloying on β-NiAl intermetallic compound by mechanical alloying, J. Mater. Process. Technol. 143-14 (2003) 551-554.


[6] L.Z. Zhou, J. T. Guo, G. S. Li, L. Y. Xiong, S. H. Wang, C. G. Li, Investigation of annealing behavior of nanocrystalline NiAl , J. Materials & Design 18 (1997) 373-377.


[7] N.J. Welham, Mechanical activation of the formation of an alumina-titanium trialuminide composite, J. Intermetallics 6 (1998) 363-368.


[8] M. Rafiei, M.H. Enayati, F. Karimzadeh, Characterization and formation mechanism of nanocrystalline (Fe, Ti)3Al intermetallic compound prepared by mechanical alloying, J. Alloys Com. 480 (2009) 392-396.


[9] V. Udhayabanu, K.R. Ravi, V. Vinod, B.S. Murty, Synthesis of in-situ NiAl-Al2O3 nanocomposite by reactive milling and subsequent heat treatment, J. Intermetallics 18 (2010) 353-358.


[10] S.Z. Anvary, F. Karimzadeh, M.H. Enayati, Synthesis and characterization of NiAl-Al2O3 nanocomposite powder by mechanical alloying, J. Alloys Com. 477 (2009) 178-181.


[11] H.X. Zhu, R. Abbaschian, In-situ processing of NiAl-alumina composites by thermite reaction, J. Mater. Sci. Eng. A. 282 (2002) 1-7.

[12] G. K. Williamson, W. H. Hall, X-ray line broadening from field aluminum and wolfram, J. Acta. Metallurgica. 1 (1953) 22-31.


[13] S. Chen, Y. Zhou, Y. Li, Synthesis and characterization nanocrystalline Ni-Ti and Ni-Cr powders by mechanical alloying, J. Matter. Sci & Technol. 13 (1997) 86-90.
