Diffusion-Controlled Electrosynthesis of Nanoporous Electrodes for Electrochemical Supercapacitors

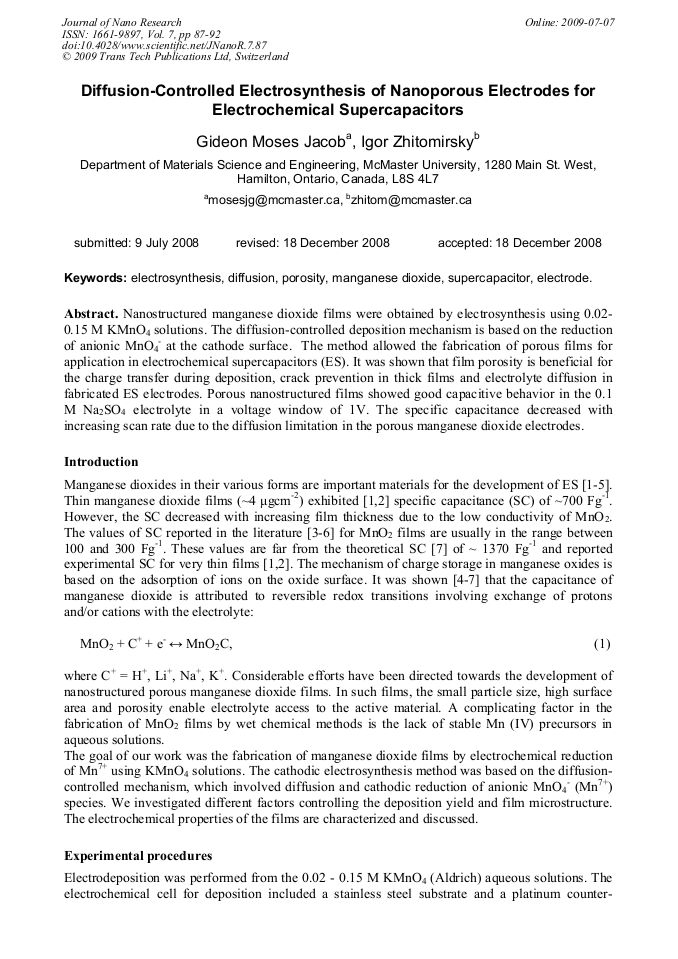

Article Preview

Nanostructured manganese dioxide films were obtained by electrosynthesis using 0.02-0.15 M KMnO4 solutions. The diffusion-controlled deposition mechanism is based on the reduction of anionic MnO4- at the cathode surface. The method allowed the fabrication of porous films for application in electrochemical supercapacitors (ES). It was shown that film porosity is beneficial for the charge transfer during deposition, crack prevention in thick films and electrolyte diffusion in fabricated ES electrodes. Porous nanostructured films showed good capacitive behavior in the 0.1 M Na2SO4 electrolyte in a voltage window of 1V. The specific capacitance decreased with increasing scan rate due to the diffusion limitation in the porous manganese dioxide electrodes



Edited by:

Prof. Irina V. Belova, Prof. Graeme E. Murch and Prof. Andreas Öchsner




G. M. Jacob and I. Zhitomirsky, "Diffusion-Controlled Electrosynthesis of Nanoporous Electrodes for Electrochemical Supercapacitors", Journal of Nano Research, Vol. 7, pp. 87-92, 2009

Online since:

July 2009




[1] S. -C. Pang, M.A. Anderson and T.W. Chapman: J. Electrochem. Soc. Vol. 147 (2000), p.444.

[2] S. -C. Pang and M. A. Anderson: J. Mater. Res. Vol. 15 (2002), p. (2096).

[3] M. Toupin, T. Brousse and D. Belanger: Chem. Mater. Vol. 14 (2002), p.3946.

[4] J. Jiang and A. Kucernak: Electrochim. Acta Vol. 47 (2002), p.2381.

[5] C. -C. Hu and T. -W. Tsou: J. Power Sources Vol. 115 (2003), p.179.

[6] R.N. Reddy and R. G. Reddy: J. Power Sources Vol. 124 (2003), p.330.

[7] S. Devaraj and N. Munichandraiah: Electrochem. Solid-State Lett. Vol. 8 (2005), p. A373.

[8] M. Pourbaix: Atlas of Electrochemical Equilibria in Aqueous Soultions (National Association of Corrosion Engineers, Houston, Texas, USA 1966).

[9] N.F.E.I. Nestle and R. Kimmich: J. Phys. Chem. Vol. 100 (1996), p.12569.

[10] L. Tang: Cem. Concr. Res. Vol. 29 (1999), p.1469.

[11] T. Nakamura and Z. Wang: J. Appl. Mech. Vol. 68 (2001), p.242.

[12] Z. -Y. Deng, J. She, Y. Inagaki, J. -F. Yang, T. Ohji and Y. Tanaka: J. Eur. Ceram. Soc. Vol. 24 (2004), p. (2055).
