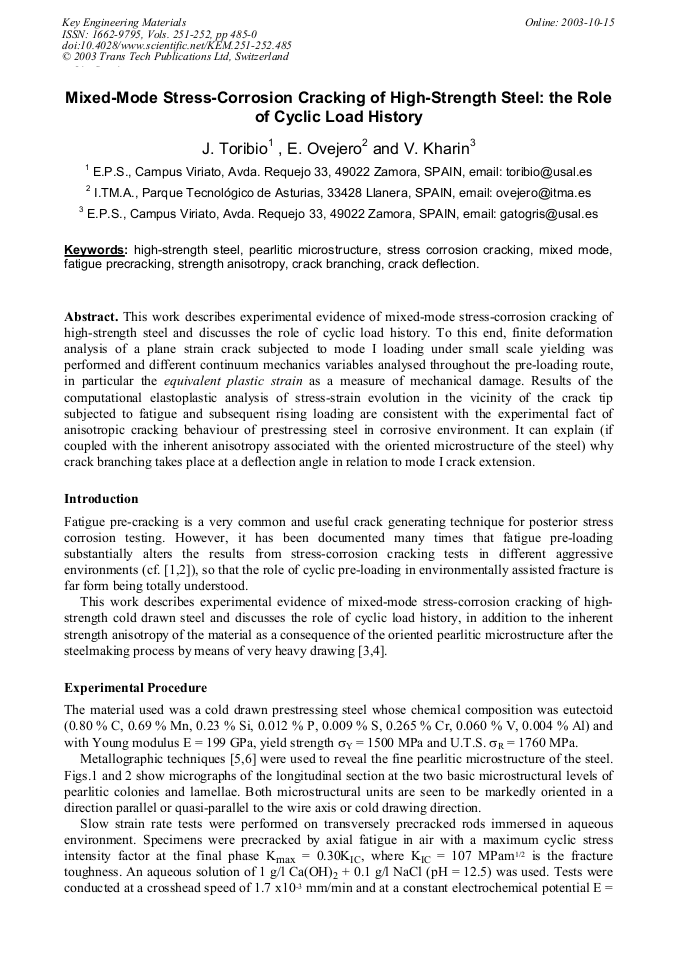

Mixed-Mode Stress-Corrosion Cracking of High-Strength Steel: the Role of Cyclic Load History


Article Preview



Key Engineering Materials (Volumes 251-252)

Edited by:

F.-G. Buchholz, H.A. Richard, M.H. Aliabadi




J. Toribio et al., "Mixed-Mode Stress-Corrosion Cracking of High-Strength Steel: the Role of Cyclic Load History", Key Engineering Materials, Vols. 251-252, pp. 485-0, 2003

Online since:

October 2003




[1] J. Toribio, A.M. Lancha and M. Elices: Corros. Sci. Vol. 35 (1993), p.521.

[2] J. Toribio and V. Kharin: Mater. & Design Vol. 18 (1997), p.87.

[3] G. Langford: Metall. Trans. Vol. 1 (1970), p.465.

[4] J. D. Embury and R. M. Fisher: Acta Metall. Vol. 14 (1966), p.147.

[5] L.E. Samuels: Optical Microscopy of Carbon Steels (ASM, Metals Park, Ohio, 1992).

[6] G.F. Vander Voort: Metallography. Principles and Practice (McGraw-Hill, New York, 1984).

[7] R.N. Parkins, M. Elices, V. S. Gálvez and L. Caballero: Corros. Sci. Vol. 22 (1982), p.379.

[8] J. Toribio and E. Ovejero: Mech. Time-Dependent Mater. Vol. 1 (1998), p.307.

[9] K.J. Handerhan and W.M. Garrison Jr.: Acta Metall. Mater. Vol. 40 (1992), p.1337.

[10] MARC User Information (Marc Analysis Research Corporation, Palo Alto, 1994).

[11] S. Suresh: Fatigue of Materials (Cambridge University Press, Cambridge, 1991).

[12] R.W. Revie and H.H. Uhlig: Corros. Sci. Vol. 12 (1972), p.669.

[13] I.R. Kramer: Scripta Metall. Vol. 8 (1974), p.1231.

[14] H.H. Uhlig: Corros. Sci. Vol. 21 (1981), p.159. 8 Title of Publication (to be inserted by the publisher).

[15] X. Wei, J. Li, X. Zhou and W. Ke: Corros. Sci. Vol. 38 (1996), p.989.

[16] S.V. Nair, R.R. Jensen and J.K. Tien: Metall. Trans. Vol 14A (1983), p.385.

[17] C.F. Barth, E.A. Steigerwald and A.R. Troiano: Corrosion-NACE Vol. 25 (1969), p.353.

[18] J.A. Smith, M.H. Peterson and B.F. Brown: Corrosion-NACE Vol. 26 (1970), p.539.

[19] H.P. Van Leeuwen: Engng. Fracture Mech. Vol. 6 (1974), p.141.

[20] J. Toribio and V. Kharin: Fatigue Fracture Engng. Mater. Structures Vol. 20 (1997), p.729.
