Fracture Analysis of Thick Plate for Partial Penetration Multi-Pass Weldment Using Ĵ-Integral

Abstract:

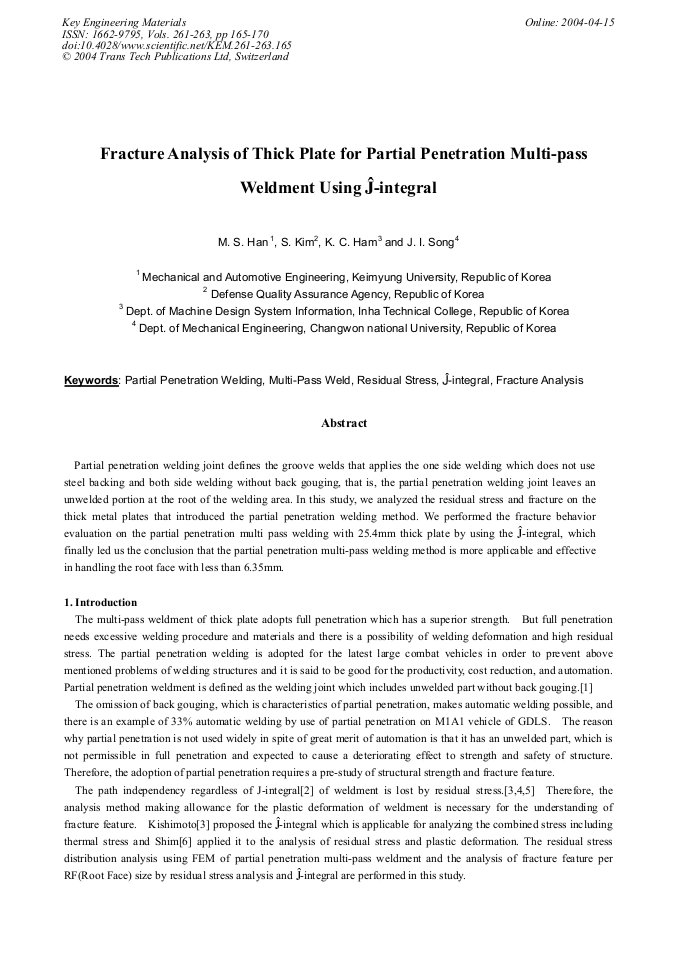

Article Preview

Partial penetration welding joint defines the groove welds that applies the one side welding which does not use steel backing and both side welding without back gouging, that is, the partial penetration welding joint leaves an unwelded portion at the root of the welding area. In this study, we analyzed the residual stress and fracture on the thick metal plates that introduced the partial penetration welding method. We performed the fracture behavior evaluation on the partial penetration multi pass welding with 25.4mm thick plate by using the Ĵ-integral, which finally led us the conclusion that the partial penetration multi-pass welding method is more applicable and effective in handling the root face with less than 6.35mm.

Info:

Periodical:

Key Engineering Materials (Volumes 261-263)

Edited by:

Kikuo Kishimoto, Masanori Kikuchi, Tetsuo Shoji and Masumi Saka

Pages:

165-170

Citation:

M.S. Han et al., "Fracture Analysis of Thick Plate for Partial Penetration Multi-Pass Weldment Using Ĵ-Integral", Key Engineering Materials, Vols. 261-263, pp. 165-170, 2004

Online since:

April 2004

Export:

Price:

$38.00

[1] AWS D1. 1 Structural welding code.

[2] Rice, J. R., “A Path Independent Integral and the Approximate Analysis of Strain Concentration by Notches and Crack”, Journal of Applied Mechanics, Vol. 35, 1968, pp.379-386.

DOI: https://doi.org/10.1115/1.3601206

[3] Kishimoto, K., Aoki, S., and Sakata, M., “On the Path Independent Integral”, Engineering Fracture Mechanics, Vol. 13, 1980, pp.841-850.

DOI: https://doi.org/10.1016/0013-7944(80)90015-6

[4] Aoki, S., Kishimoto, K., and Sakata, M., “Elastic-Plastic Analysis of Crack in Thermally Loaded Structures”, Engineering Fracture Mechanics Vol. 16, No. 3, 1982, pp.405-413.

DOI: https://doi.org/10.1016/0013-7944(82)90118-7

[5] Wilson, W., K. and Yu, I., W., “The Use of the J-integral in Thermal Stress Crack Problems”, International Journal of Fracture, Vol. 15, No. 4, 1979, pp.377-387.

[6] Shim, Y. L., “Residual Stress, Distortion, and Fracture Analysis of Welded Structures using Finite Element Method”, Journal of KWS, Vol. 15, No. 2, Feb., 1997, pp.15-25.

[7] Shim, Y. L. and Lee, S. G., “Modeling of Welding Heat Input for Residual Stress Analysis”, Journal of the Korean Welding Society, Vol. No 3. Sep., 1993, p.112.

[8] ABAQUS User's Manual, HKS inc., (2000).
