Development of a Material Constitutive for High-Rate Using a Combined Experiment/Computation Method

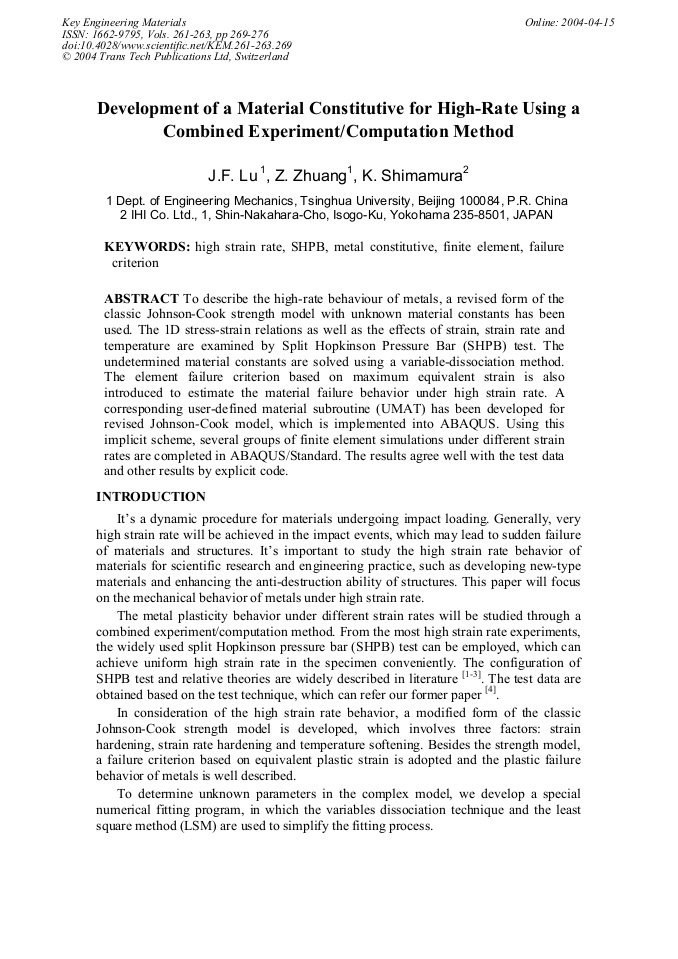

Article Preview

To describe the high-rate behaviour of metals, a revised form of the classic Johnson-Cook strength model with unknown material constants has been used. The 1D stress-strain relations as well as the effects of strain, strain rate and temperature are examined by Split Hopkinson Pressure Bar (SHPB) test. The undetermined material constants are solved using a variable-dissociation method. The element failure criterion based on maximum equivalent strain is also introduced to estimate the material failure behavior under high strain rate. A corresponding user-defined material subroutine (UMAT) has been developed for revised Johnson-Cook model, which is implemented into ABAQUS. Using this implicit scheme, several groups of finite element simulations under different strain rates are completed in ABAQUS/Standard. The results agree well with the test data and other results by explicit code.



Key Engineering Materials (Volumes 261-263)

Edited by:

Kikuo Kishimoto, Masanori Kikuchi, Tetsuo Shoji and Masumi Saka




J.F. Lu et al., "Development of a Material Constitutive for High-Rate Using a Combined Experiment/Computation Method", Key Engineering Materials, Vols. 261-263, pp. 269-276, 2004

Online since:

April 2004




[1] Jitsu K, Shirai K, Ito C, Onuma H and Shimamura K. Effects of Strain Rate on Concrete Strength Subjected to Impact Load - Dynamic Compressive Strength Test by Split Hopkinson Pressure Bar Method. Proceedings of 5th International Conference on Structures Under Shock and Impact, 1998, 471-480.

[2] ASM Handbook. Mechanical Testing and Evaluation. V. 8, ASM International, OH, (2000).

[3] Gray III, G.T. Classic Split-Hopkinson Pressure Bar Technique. Los Alamos National Laboratory Report: LA-UR-99-2347, (1999).

[4] Lu, J.F., Zhuang, Z., Shimamura, K., et al. Application of Numerical Simulation to SHPB Test to Investigate the Dynamic Compressive Behavior of Material with Failure. Key Engineering Materials, 2003, 243: 433-438.

DOI: 10.4028/

[5] Johnson, G.R., Cook, W.H. A Constitutive Model and Data for Metals Subjected to Large Strains, High Strain Rates and High Temperatures. In: Proc. 7th International Symposium on Ballistics. The Hague, Netherlands, 1983. 541-547.

[6] Lesuer D.R. Experimental Investigation of Material Models for Ti-6Al-4V Titanium and 2024-T3 Aluminum. Washington: Office of Aviation Research, DOT/FAA/AR-00/25, (2000).

[7] ABAQUS/Standard User’s Manual, Version 6. 3. Printed in USA. Hibbitt, Karlsson & Sorensen, INC. (2002).

[8] Kwang Kechi, Kwang Yonggang. Solid Constitutive. Beijing: Tsinghua University Press, (1999).

[9] Belytschko T, Liu WK, Moran B. Nonlinear Finite Elements for Continua and Structures, John Wiley & Sons, Inc., New York, (2000).

[10] Zukas JA. Numerical simulation of high rate behavior. In: Shock and Impact on Structures, Computational Mechanics Publications, Southampton, (1994).
